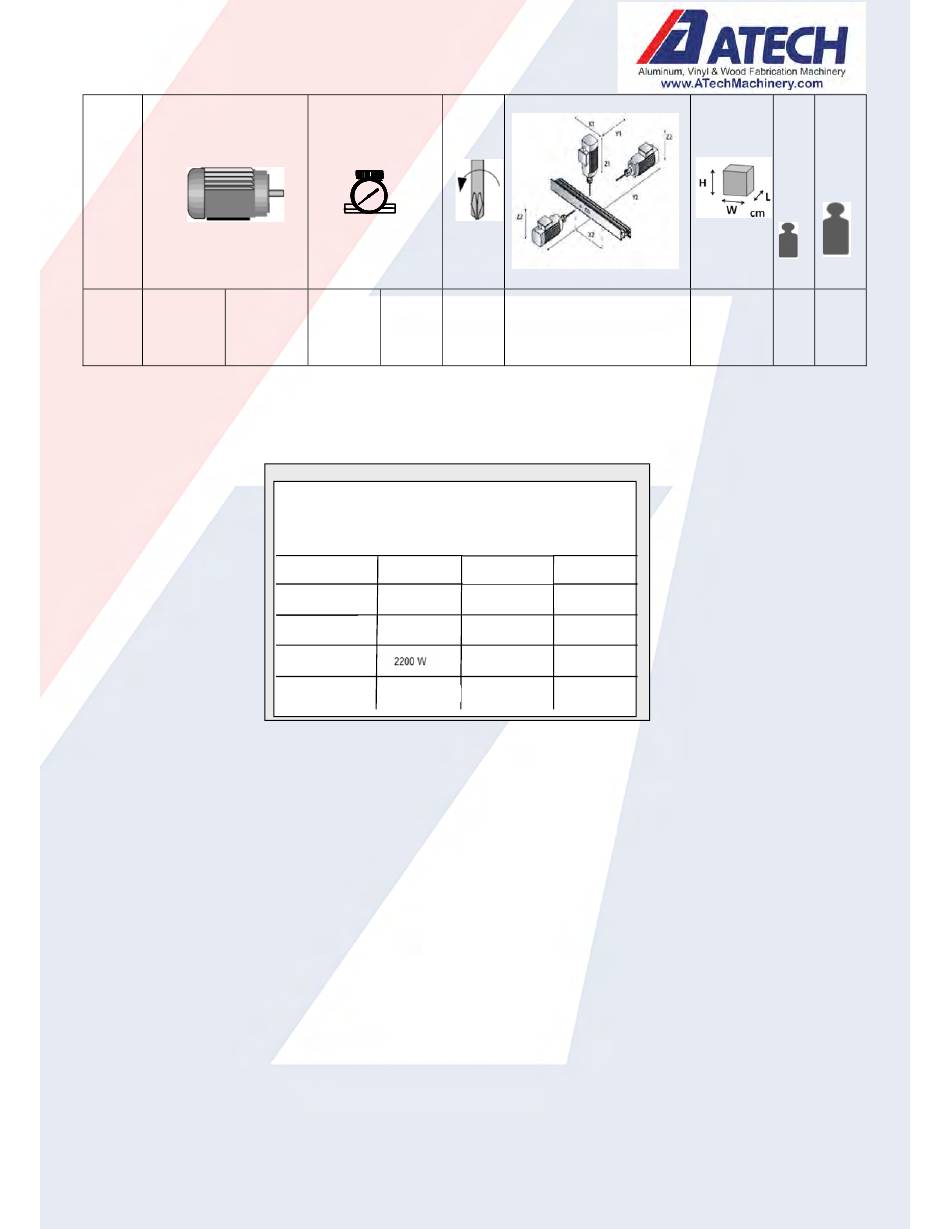

TECHNICAL FEATURES
CRM
230V 1P
1100W*3
250S
200 Hz
10
12000
6-8 BAR
Lt/dak.
dev/dak
Lt/min.
MODEL TYPE
MODEL
CRM 250S
SERIAL NO
SERI NO
PROD.DATE
ÜRETİM TAR
.
TOTAL POWER
RATED VOLTAGE
230V AC 1P NPE
NOMİNAL GERİLİM
x1,x2 = 650,350 mm
y1,y2 = 180,230 mm
RPM
z1,z2= 170,150 mm
RATED CURRENT
10A
NOMINAL AKIM
IDLING REV.
12000 x3
DEVİR SAYISI
RPM
AIR CONSUMP.
10 Lt/min
AIR PRESSURE
6-8 BAR
WEIGHT
380KG.
kg
kg
W = 110
L = 110
370
380
H = 180
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRM 250S and is the answer not in the manual?

Questions and answers

Related Manuals for ATECH CRM 250S

Summary of Contents for ATECH CRM 250S

  • Page 1 L = 110 250S 200 Hz Lt/min. z1,z2= 170,150 mm H = 180 MODEL TYPE RATED CURRENT MODEL NOMINAL AKIM CRM 250S IDLING REV. 12000 x3 SERIAL NO DEVİR SAYISI SERI NO PROD.DATE AIR CONSUMP. 10 Lt/min ÜRETİM TAR TOTAL POWER...
  • Page 2 DIMENSIONS FIGURE 1 RESİM-FIGURE-РИСУНОК 1 PARTS LIST FIGURE 2...
  • Page 3 FIGURE 3 FIGURE 4...
  • Page 4 FIGURE 5...
  • Page 5 SPARE PART LIST PART NAME STOCK CODE PART NO PICTURE TEMPLATE LEFT PISTON MOUNTING 3UA810030-0017 TEMPLATE RIGHT PISTON MOUNTING 3UA810030-0016 LEFT SUPPORT MOUNTING 3UA810030-0015 RIGHT SUPPORT MOUNTING 3UA810030-0014 KN 152 SUPPORT- SEMI/COMPLETE 3UA810030-0011 CLAMP MOUNTING 3UA280030-0011 PIPE HANDLE 3 M8*32 -0008*8 3UA040030 3UA040030-0007*2...
  • Page 6 JOYSTICK ARM 1EL090000-0500 MOTOR 1.1Kw 12,000 1EL070004-0014 Ø10.0 L100- SINGLE HEAD 1SK050000-0069 Ø5.0 L100- SINGLE HEAD 1SK050000-0068 TOP HEAD GAS SPRING 1 1YY030000-0016 BOTTOM HEAD GAS SPRING 2 1YY030000-0017 FRONT GAS SPRING 3 1YY030000-0015 REAR GAS SPRING 3 1YY030000-0014 BALL JOINT 1SR020000-0007 ROD EYE 1SR020000-0006...

  • Page 7: Table Of Contents

    ENGLISH CONTENTS 1. General information 1.1. Introduction 1.2. Service Information 2. Safety 2.1. Safety Symbols and Their Meanings 2.2. Accidents Prevention 2.3. General Safety Information 3. Machine’s Description 4. Transport of the Machine 5. Installation of the Machine 5.1. Preparation 5.2.

  • Page 8: General Information

    The technical drawings and details contained in this manual constitute a guide for the operator. 1.2. Service Information In case of any technical problem please contact your nearest ATech dealer, or ATech head office through the following phone, fax or e-mail address.

  • Page 9: Safety

    2. SAFETY 2.1. Safety Symbols and Their Meanings Ensure safe working position, always keep your Read the user guide balance. Wear ear protectors Elektrical excitation Wear safety goggles Don’t place your hands between parts in motion.. If the power cable should be damaged during operation, don't touch and unplug it.

  • Page 10: Machine's Description

    2.3.7 Ensure safe working position, always keep your balance. 2.3.8 Keep your machine always clean for safe operation. Follow the instructions at maintenance and replacement of accessories. Check the plug and cable regularly. If damaged, let it replace by a qualified electrician. Keep handles and grips free of any oil and grease.

  • Page 11: Installation Of The Machine

    5. INSTALLATION OF THE MACHINE 5.1 Preparation 5.1.1 The machine size and weight measurements, given the technical specification sheet.The ground, where the machine will be placed, should be even, solid enough to bear the weight of the machine. 5.1.2 The machine should be located approx. 50 cm away from the rear wall. The power connection plug of the machine is located on the rear side of the machine.

  • Page 12: Preparation

    7.1 Preparation 7.1.1 Degrease and dry the machine table. Especially ensure that the holding grips and handles are clean and dry 7.1.2 Clean all surfaces of the machine from chips and foreign particles. Use eye glasses for protection. 7.1.3 Copy router machines can process on products manufactured from rigid plastic and aluminum materials that don’t include iron alloy.

  • Page 13: Maintenance, Service And Repair

    7.2.9 With the help of the handle on the lower group (PICTURE 3 No: 120) move the group and realize the process on the profile. To reach the preferred depth with the cutting tool, move the joystick arm (No: 153) forward and backwards. 7.2.10 On the joysticks, there is one button on the upper handle and two buttons on the lower handle.

  • Page 14: Adjust The Air Pressure (Pneumatic Systems)

    SPINDURA 10. 9. WARRANTY CONDITIONS ATech Machine Inc. guarantees that all machines have been tested and conform to the international standards. The guarantee is valid 24 months from dispatch date and does not cover the electrical parts of the machine.

  • Page 15: Mounting Manual

    - lack of cleaning and of ordinary maintenance by the customer - transport or displacement (even inside the workshop) - natural events (lightings, fires, floods) -Phase failure or overvoltage, failures due to faulty electrical installation -The problems caused by the absence of grounding in the electrical installation The warranty does not cover, in any case, damages caused by the malfunction of the Machine 10 Mounting Manual 10.1- Installation of the Dampers...
  • Page 16 By this, the installation of the horizontal platform damper installation is realized. B- Vertical Head Damper Installation B.1- Loosen the clamp lever (picture1-2), through the black color arm pull the head up (picture 2-2) (Pic. 1-2) (Pic. 2-2) B.2- Without changing this position, the ferrule, thin ferrule and screw shall be detached (picture 3-2) and it will be prepared.
  • Page 17 (Pic.4-2) While in this position, the screw will be installed so that it passes through the hole of the damper and after the thin ferrule will be put on the screw and the installation is finished with the bolt screwed. 10.2- Motion Lever Installation (piece no 111) While the Lever (111) is demounted, it will be passed through the rod eye (123) of the machine and then will be screwed with a bolt to the ball joint (113).
  • Page 18 10.3- CONVEYOR INSTA LLA TION The conveyors are adjusted as right and left so that the meter parts are at the back and at the same time, from two of the bolts that hold the clamp pin, only one screw, without removing the ferrule (148) (As shown at the picture below) will be taken out and it will be fastened so that it fits on the conveyor ferrules.
  • Page 19 ELECTRIC &PNEUMATIC DİAGRAM...
  • Page 20 CRM250 1P ELECTRICAL DIAGRAM SHEET 1 CRM250 1P ELECTRICAL DIAGRAM SHEET 2...
  • Page 21 CRM250 1P ELECTRICAL DIAGRAM SHEET 3 CRM250 1P PNEUMATIC DIAGRAM...
