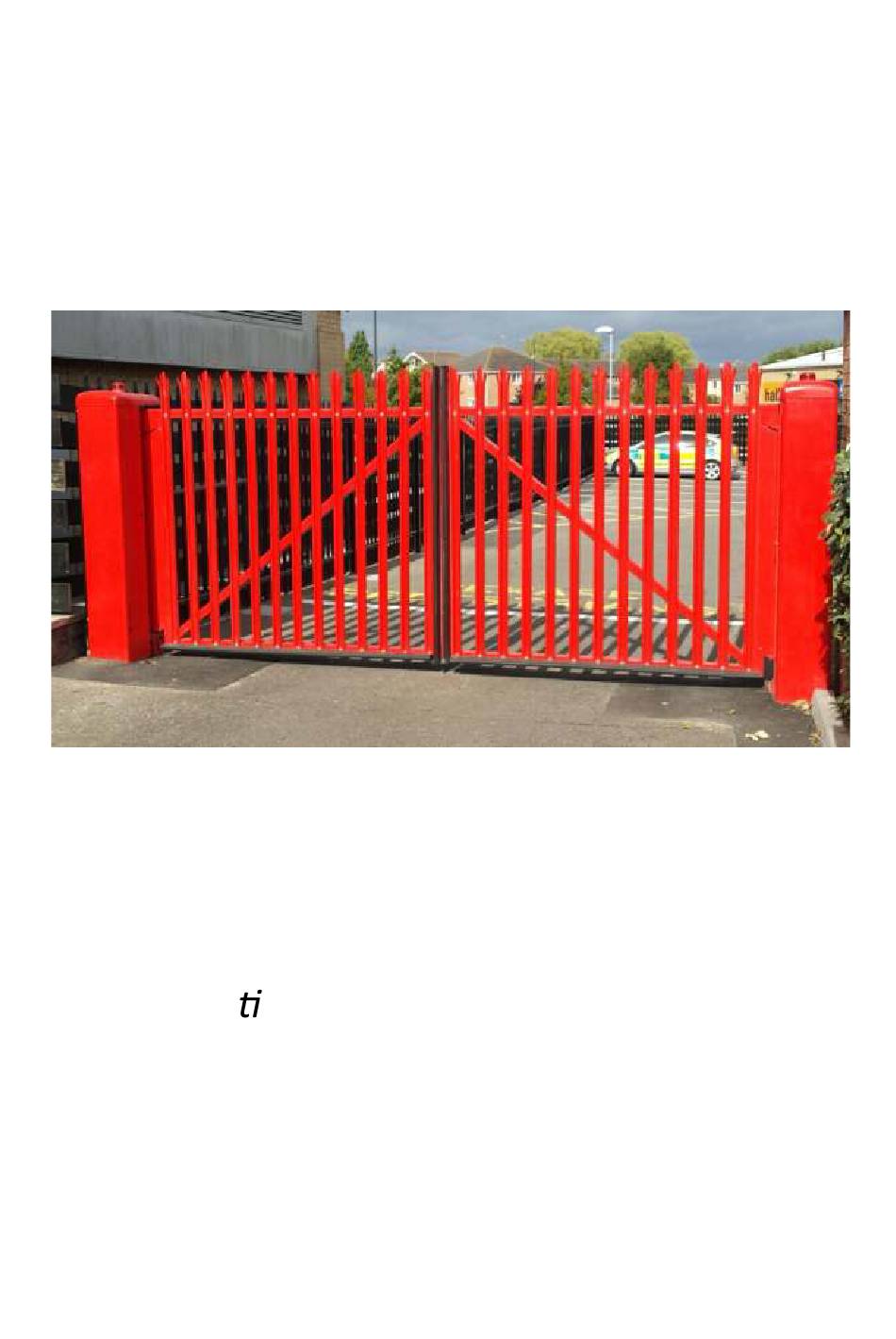

- Page 1 Opera on and Maintenance Manual Revision 10.0 2020 THIS DOCUMENT CONTAINS IMPORTANT INFORMATION. IT MUST BE KEPT WITH THE GATE AT ALL TIMES.
-
Page 2: Safety Features
Safety Features Thank you for purchasing one of our perimeter security products. Your gate will provide safe and reliable service and peace of mind provided that the following instructions and guidance is followed. Your gate is fi ed with a range of safety devices designed to prevent accidents or injury, none the less the area in the immediate vicinity of the gate should be treated as potentially hazardous and avoided whenever the gate is moving Explana on of safety features and gate reac on:... - Page 3 Safe Use Instruc ons To open the gate: The gate may be opened using the Open push bu on input, panel mounted keypad bu on, exit loop or radio fob (if fi ed). The gate will smoothly accelerate to fast speed un l the intermediate limit is reached, at which point the gate will smoothly decelerate for the remainder of the travel distance.
- Page 4 Manual operation: In the event of a power cut or other fault it will be necessary to move your gate in manual mode. Manual operation should only be a empted by a responsible adult. Before doing this always switch the system off at the main isolator, your installer will have shown you where this is on your system.
-
Page 5: Stop Button
Key Switch If a fault happens to appear on the controller that relates to a safety device the gate will more than likely only operate in deadman mode. on the front of the tower there is a key switch that can be turned either way to open the gate in deadman operation overriding the faults. -
Page 6: Regular Safety Checks
End User Regular Safety Checks General: Keep the areas adjacent to the gate clear of obstruc ons at all mes, cut back plants and weeds that might interfere with the gate and its safety sensors. Keep the photo electric beam covers clean. Safety checks: These user safety checks should be conducted every [few weeks] by a responsible adult who has been shown how to do the checks by a trained and qualified powered gate specialist. - Page 7 Engineer Planned Preventative Maintenance Schedule Your gate will need to receive regular planned preventative maintenance in order to remain in safe and reliable service. The maintenance outlined below should only be conducted by a trained and qualified powered gate specialist who is familiar with 9700 automation equipment and has the necessary test equipment.
-
Page 8: Performance Tests
Lubrica on: Any grease nipple (All other items are “sealed for life” and require no lubrica on) Func on checks: •Overall gate structure and plumb of hinges •Lubricate hinges and unit pivots •Gearbox oil level •Func on of manual release •Torque se ng on control unit •Obstacle detec on effec veness (measure forces) •Overall func on/condi on of actuators... - Page 9 Handover Check list The following items have been completed by the installer: [ ck] ü □ Carried out site risk assessment prior to installation □ Carried out site risk assessment after installation and carried out necessary modification to eliminate hazards found □...
-
Page 10: Component List
Component list Drive unit: PFL Swing Gate Drive 3 Phase Drive 3 Phase /550Watts /60Nm Torque /58 RPM /2.3A Nominal Current 35mm Axle Control panel: Feig TST FUZ 2 B Witt Argos-T/ Argos-R TX & RX Through Beam Photo beams: ASO 65mm profile Safe edge: Feig TST PD-ME-B... -
Page 11: Maintenance Log
Maintenance log Company Date Work done Name Signature Reac ve Company Date Work done Name Signature Reac ve Company Date Work done Name Signature Reac ve Company Date Work done Name Signature Reac ve Company Date Work done Name Signature Reac ve Company Date... - Page 12 Declaration Of Conformity [Insert Trade Partner Name Here] We hereby declare that the products described below: PF9700 Automatic Swing Gates are in conformity with the essential requirements of the Supply of Machinery (Safety) Regulations 2008 In addition, the partly completed machinery is in conformity with the Construction Products Directive 89/106/EC, the Electromagnetic Compatibility Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC.
- Page 13 Engineers Sec on (Not For End Users) Control Panel Overview Address: Tel: Email: Web:...
- Page 14 Swing Gate Base Drawing Plan View Base plate...
- Page 15 Bolt Kit Contents 4x M20x500mm Threaded bar (per gate) 8x M20 Bolts (per gate) 8x M20 Penny washers (per gate) 1x Resin fix tube 2x resin fix nozzles 4x M16x100mm anchor bolts (for either catch post or center stop) Swing Gate Bolt Down Procedure 1.
- Page 16 Parameter Factory Adj. Range Parameter Function Display Setting Counter Parameters Cycle Counter P.000 Indicates the number of previously counted cycles Reset the cycle counter P.998 0 to 1 After setting this parameter to 1 the current cycle counter is cleared cycle counter mode 0: Each time the closed limit switch is reached the count goes up by 1 P.981...
- Page 17 Parameter Factory Adj. Range Parameter Function Display Setting Run Timer Parameters Run time monitoring for the open direction [Sec] P.410 10 -2 Time set is the max run time for the open direction, if movement takes longer then F.020 will display 0.0 to 990.0 Run time monitoring for the close direction [Sec]...
- Page 18 Parameter Factory Adj. Range Parameter Function Display Setting Loop Detector Parameters Loop detector channel 1 20: Deactivated 21: Evaluation only for command forwarding 22: Open command 23: Safety during closing with reversing P.660 20 to 29 24: Safety during closing with stop 25: Verifies a suitably programmed external open command to act as safety check and also safety during closing 27: Safety during opening and closing, after releasing during opening continues to open 28: Safety during opening and closing, after releasing during opening continues to open, close after fully open...
- Page 19 Parameter Factory Adj. Range Parameter Function Display Setting Diagnostic Parameters Display mode selection 0: The control sequence is displayed 1: The current travel speed is displayed [Hz] 2: The motor current is displayed [A] 3: The motor voltage is displayed [V] 4: The DC Bus current is displayed [A] 5: The DC Bus voltage is displayed [V] 6: power stage module tempreature displayed [°C]...
- Page 20 Address: Tel: Email: Web:...
- Page 21 Address: Tel: Email: Web:...
- Page 22 Address: Tel: Email: Web:...
- Page 23 Address: Tel: Email: Web:...
- Page 24 Address: Tel: Email: Web:...
- Page 25 Address: Tel: Email: Web:...
- Page 26 Address: Tel: Email: Web:...
- Page 27 Address: Tel: Email: Web:...
