- Page 1 HDTVET0201VF1VF2 User Manual HDTVET0201VF1VF2 User Manual HDTV Supply, Inc Contact: support@hdtvsupply.com 1 ...
- Page 2 This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment. HDTV Supply, Inc Contact: support@hdtvsupply.com 2 ...
- Page 3 13. R M A P o l i c y ................. 1 0 HDTV Supply, Inc...

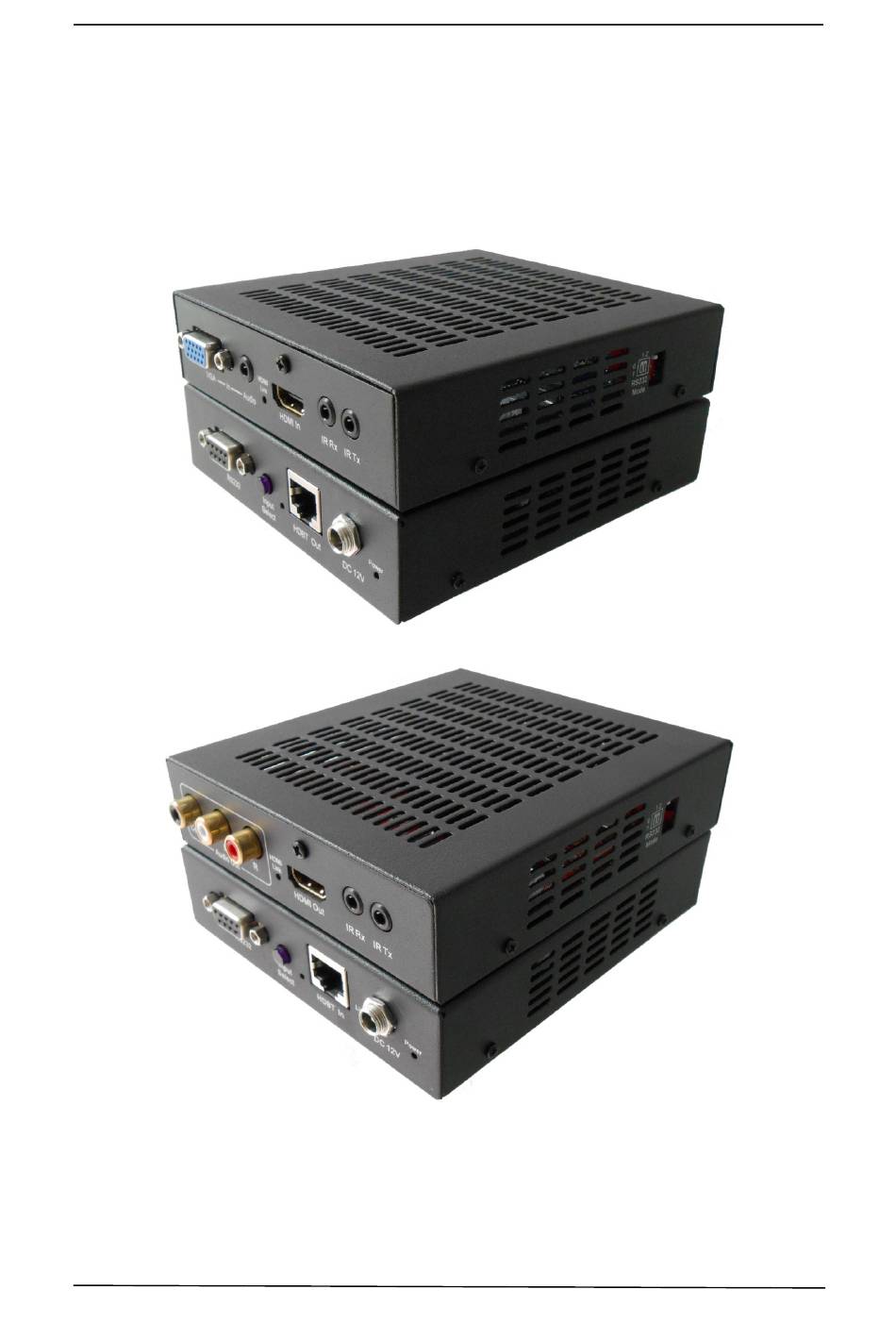

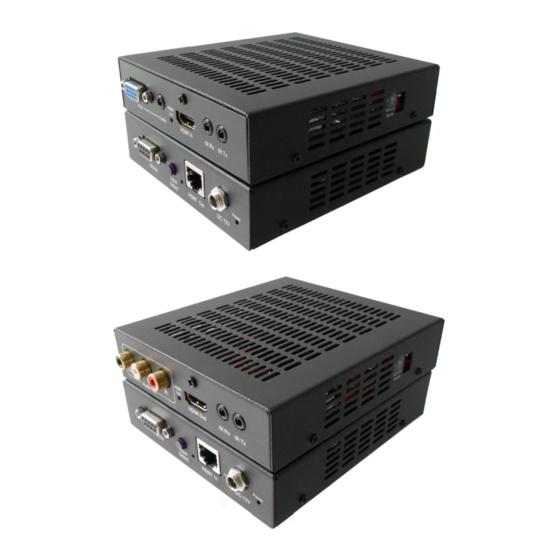

- Page 4 HDTVET0201VF1VF2 User Manual Introduction HDTV Supply's HDTVET0201VF1 (Transmitter) VF2 (Receiver) is a Dual HDMI and VGA/Audio to HDBaseT Switcher Extender. It switches between HDMI and VGA/audio inputs, digitizes, and transmits via HDBaseT. Both the transmitter and receiver offer manual and RS232 switching between HDMI and VGA inputs. By using F1 and VF2, the transmission distance for 1080P reaches 100 meters (330ft), and 4K x2K reaches 70 meters (230ft).
- Page 5 11. RS232 Mode DIP switch, mode selections as below: DIP Position -1 DIP Position -2 Mode RS232 pass through HDBaseT (Default) Update Valens FW Update MCU FW Switch between VGA and HDMI by codes & RS232 pass through HDBaseT HDTV Supply, Inc Contact: support@hdtvsupply.com 5 ...
- Page 6 12. RS232 Mode DIP switch, mode selections as below: DIP Position -1 DIP Position -2 Mode RS232 pass through HDBaseT (Default) Update Valens FW Update MCU FW Switch between VGA and HDMI by codes & RS232 pass through HDBaseT HDTV Supply, Inc Contact: support@hdtvsupply.com 6 ...
- Page 7 Note: Codes are case sensitive. Carriage return ( 0X0D) needs to be pressed to activate the code. RS-232 Pin Assignment HDTVET0201VF1VF2 Remote Control Console Assignment Assignment Baud Rate: 57600 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None HDTV Supply, Inc Contact: support@hdtvsupply.com 7 ...
- Page 8 Dimensions (W x H x D): 125mm x 112mm x 27mm , without feet Shipping Weight: 375g Operating Temperature: 32°F to 104°F (0°C to 40°C) Storage Temperature : -4°F to 140°F (-20°C to 60°C) Power Supply: 12V/2A DC HDTV Supply, Inc Contact: support@hdtvsupply.com 8 ...
