- Page 1 HDTVET0101VL7VL8 User manual HDTVET0101VL7VL8 User Manual HDTV Supply Inc. 800-841-9238 upply.c 1 ...
- Page 2 Any modifications to this case will potentially cause malfunction and product failure. 9. Do not expose the device to water, moisture, or liquids. Possible electric shock may result as well as failure of the unit to operate. HDTV Supply Inc. 800-841-9238 upply.c 2 ...
- Page 3 C o n n e c t i o n D i a g r a m ..............7 Specifications..................8 Package Contents................8 HDTV Supply Inc. 800-841-9238 upply.c 3 ...
- Page 4 HDTVET0101VL7VL8 User manual Introduction HDTV Supply's HDTVET0101VL7 (Transmitter)/HDTVET0101VL8 (Receiver) is a 70m (230ft) HDBaseT Extender. It transmits 1080P@60HZ at 48bit deep color via single Cat5e up to 70 meters (230ft) and 4K@30Hz to 40 meters (130ft). Bi-directional IR and RS232 can also be transmitted over the same Cat5e cable. With support of POH (power over HDBaseT), only one power supply is needed at either transmitter or receiver.

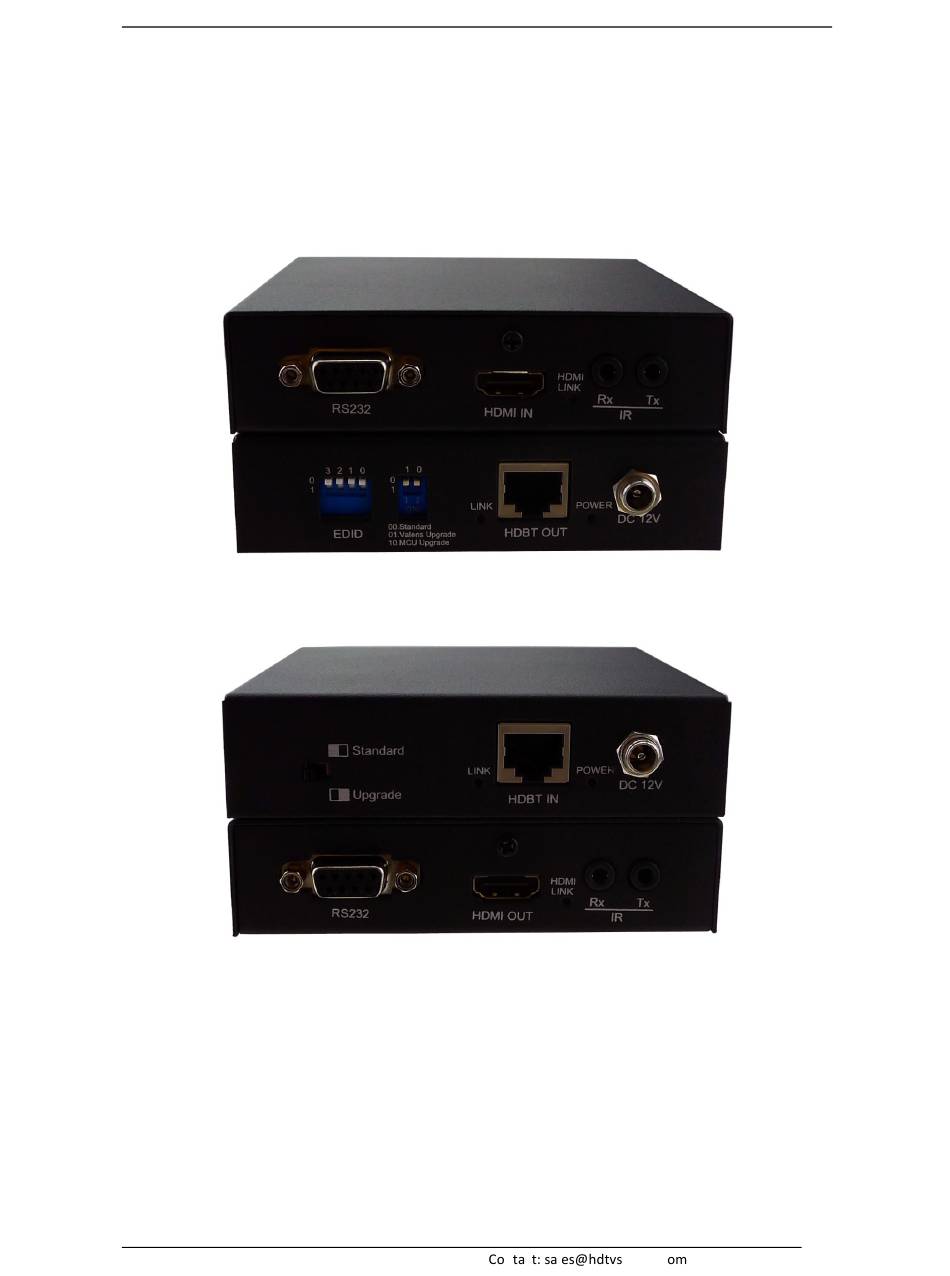

- Page 5 Signal Link indicator Power status indicator EDID DIP switch ( UP=0, DOWN=1) [DIP]=0000: HDMI 1080p@60Hz, Audio 2CH PCM [DIP]=1111: Copy EDID from HDMI output, i.e., EDID pass through [DIP]=0001: HDMI 1080p@60Hz, Audio 5.1CH PCM/DTS/DOLBY HDTV Supply Inc. 800-841-9238 upply.c 5 ...
- Page 6 DC 12V screw type connector HDTVET0101VL8 Signal Link indicator Power status indicator Standard/Upgrade mode switch - On Standard side, for signal pass-thru. On Upgrade side, for Valens chipset firmware upgrade. HDBT input DC 12V screw type connector HDTV Supply Inc. 800-841-9238 upply.c 6 ...
- Page 7 HDTVET0101VL7VL8 User manual RS232 connector HDMI link indicator IR TX jack HDMI output IR RX jack Connection Diagram HDTV Supply Inc. 800-841-9238 upply.c 7 ...
- Page 8 -4°F to 140°F (20°C to 60°C) Rack ears included Rack-Mountable NOTE: Specifications are subject to change without notice. Weight and dimensions are approximate. Package Contents 1x HDTVET0101VL7 1x HDTVET0101VL8 1x 12V/2A DC power supply 1x IR Transmitter, 1x IR Receiver. 4x mounting brackets.
