MORDOMUS iSND1SW Manual

iSND1SW
iSND1SW
https://
mordomus.com/
mordomus/
docs/wifi/
iSND1SW.pdf
EN
iSND1SW – Stereo Wi-Fi and Bluetooth
Surround sound
Features:
• 21W + 21W R.M.S.
•
Audio stream reproduction
• Bluetooth audio reproduction
Applications:
• Surround sound
Electrical Specifications:
Power supply voltage: 15VDC
Consumption: 2A @ 15VDC
Output power: 2 x 21W stereo @ 0.02% THD into 4 Ω
Idle Channel Noise: < 80 µVrms (A-Wtd)
THD+N: 0.03% (at 1 W, 1 kHz)
Storage Temperature: -10ºC to 60ºC
Operating Temperature: 10ºC to 50ºC
Maximum humidity: 80% non-condensing
Speaker Impedance: 4 to 8 Ohm
Wireless standards: WI-FI 2,4GHz 802.11 b/g/n, Bluetooth v4.2 BR/EDR
Maximum supported stream bitrate: 320kbps
Bluetooth Audio format: SBC
Physical Specifications:
Dimensions: 54mm X 86mm X 25mm.
Protection degree: IP20, for indoor use.
ATTENTION:
Mordomus shall not be liable for any damages resulting from the
use of our equipment outside the specifications and/or for a purpose
other than that intended.
When connecting speakers in parallel, make sure that the total
impedance is not inferior to 4 Ohm.
Do not connect speakers with less than 4 Ohm impedance.
Assure Wi-Fi signal strength of at least 2 bars.
Use only the supplied mains adapter.
Overview:
Speaker output connector
Push-button for configuration
Power Supply (15V 2A)
Connection status indicator
1. Installation
Caution! Before installing the device, make sure that the mains power
is turned off.
1. Disconnect from mains power.

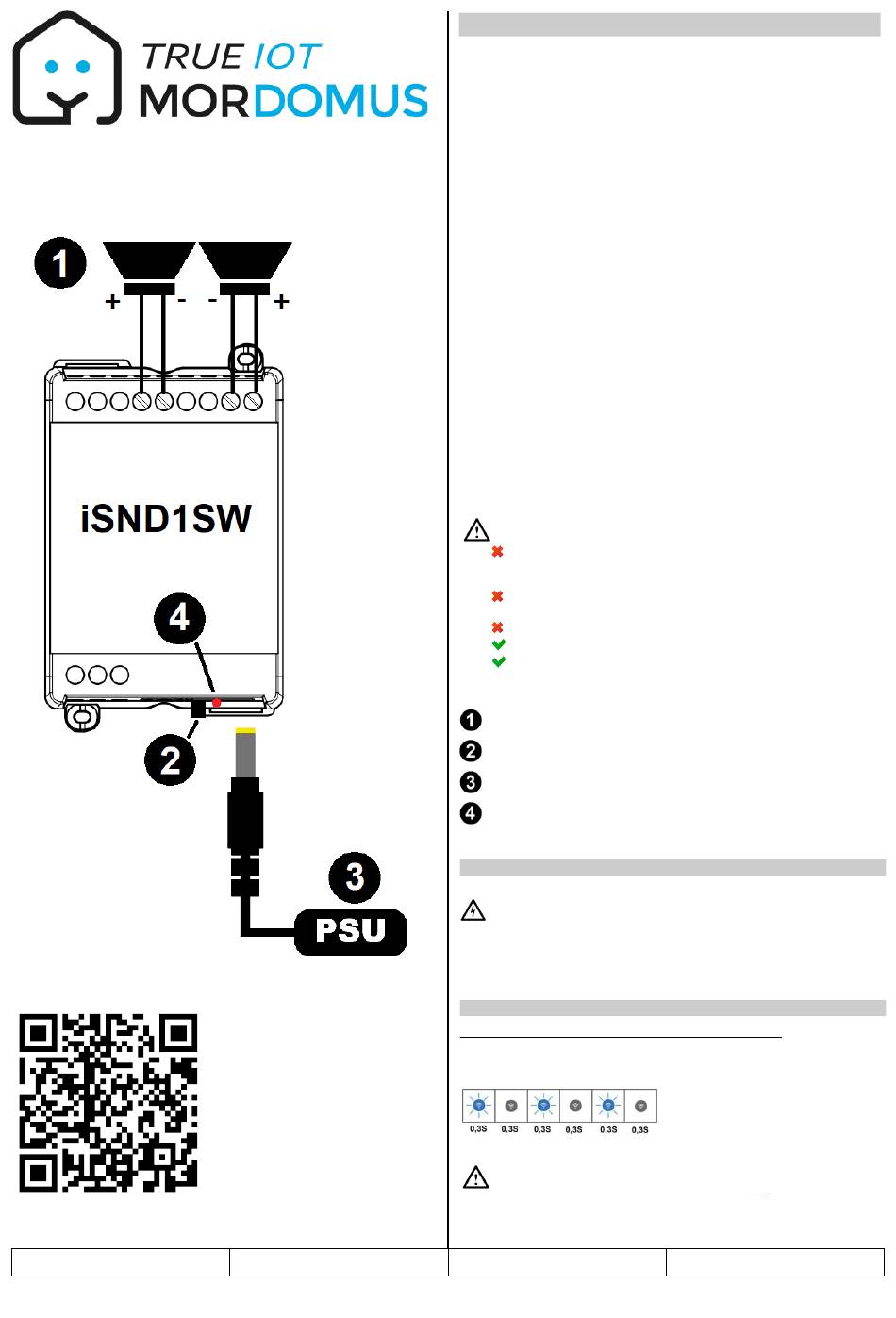

2. Perform the connections according to the schematic.
3. Power up.
2. Connection to WI-FI network and enrollment to Mordomus
Method 1 - Automatic Setup (Router must support WPS)
1. Since factory, on powering up the iSND1SW is in WPS negotiation mode
signaled by the connection status indicator blinking fast continuously.
Take care not to power up more than one iSND1SW device at the same
time since WPS allows for configuration of only one device at a time. We
recommend powering up and registering the devices in a sequential manner.
2. Press the WPS button on the router according to the user manual of this
v.2230 1/7
