MORDOMUS iZOFC22 Quick Start Manual

iZOFC22

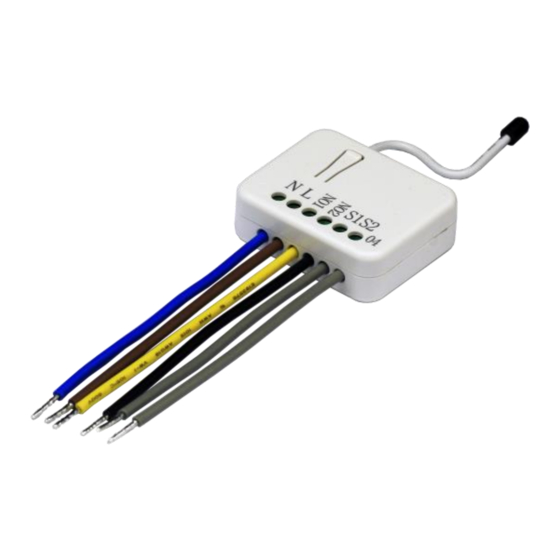

In Wall Dual relay(1 way) switch module
Fig 1. Assembling
This in-wall dual relay switch module is a transceiver which is a Z-Wave Plus
enabled device and is fully compatible with any Z-Wave
size design let the module can easily hide itself into the wall box and that will be
good for the house decoration.
There are many kind of application by using the module to switch AC power On
and Off, one main application is the light control. The new smart relay calibration
technology can reduce the inrush current caused by the load and let the module
work perfectly with many kind of light like incandescent, fluorescent and LED
light.
This in-wall switch module is able to detect Instant power wattage and overload
current (6.5A with resistive load) of connected light or appliances. When
detecting overload state, the Module will be disabled and its On/Off button will
be lockout of which LED will flash quickly. However, disconnect and re-connect
the Module will reset its overload condition to normal status.
Adding to Z-Wave
In the front casing, there is an on/off button with LED indicator below which is
used to toggle switch on and off or carry out inclusion, exclusion, reset or
association. When first power is applied, its LED flashes on and off alternately
and repeatedly at 0.5 second intervals. It implies that it has not been assigned a
node ID and start auto inclusion.

Auto Inclusion

The function of auto inclusion will be executed as long as the in wall switch does
not have Node ID and just connect the switch to main power.
Note: Auto inclusion timeout is 2 minute during which the node information of
explorer frame will be emitted once every several seconds. Unlike "inclusion"
function as shown in the table below, the execution of auto inclusion is free from
pressing the On/Off button on the Switch.
The table below lists an operation summary of basic Z-Wave functions. Please
refer to the instructions for your Z-Wave
access the Setup function, and to include/exclude/associate devices
1
www.mordomus.com
TM
TM
Network
TM
Certificated Primary Controller to
TM
enabled network. Mini
