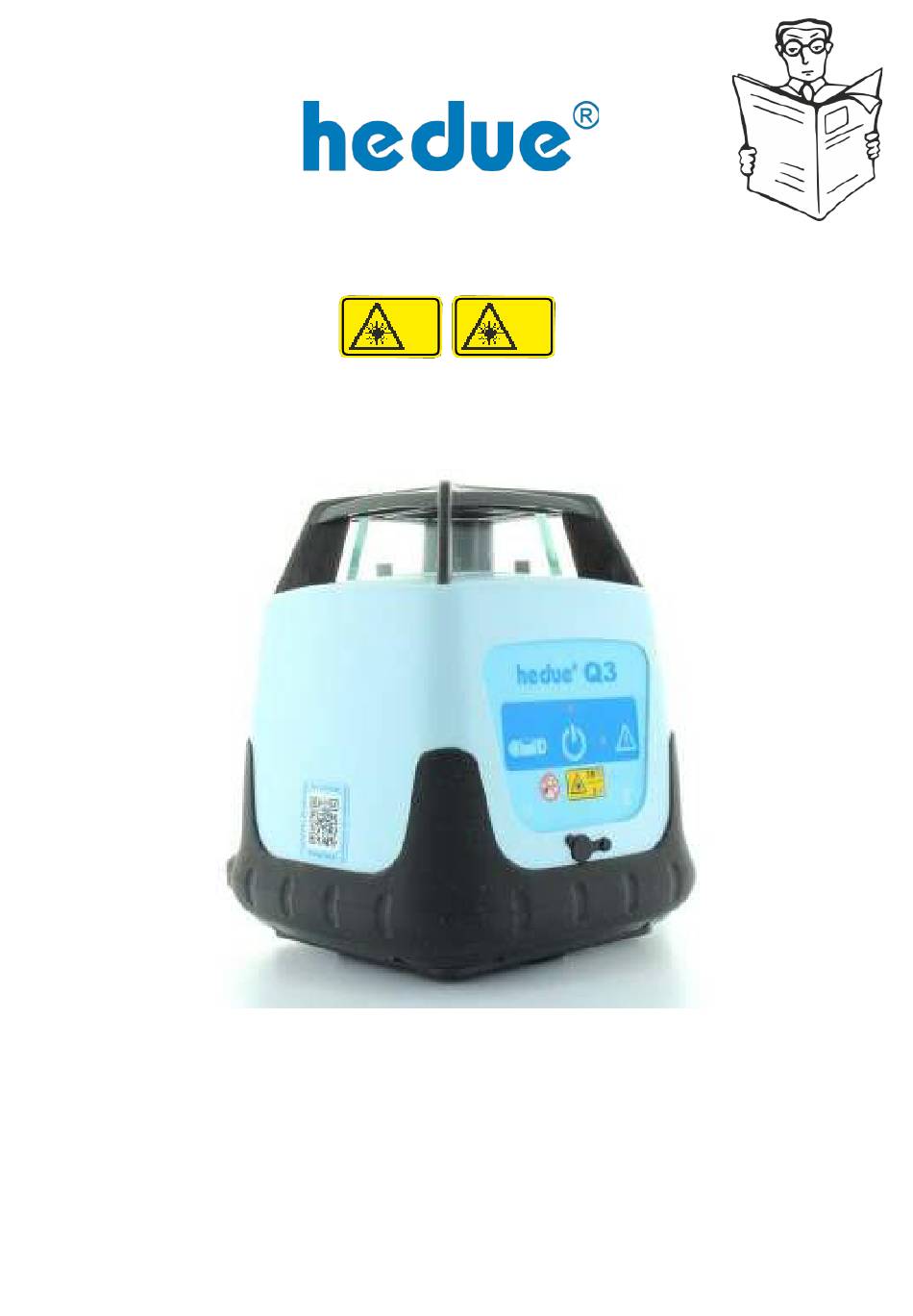

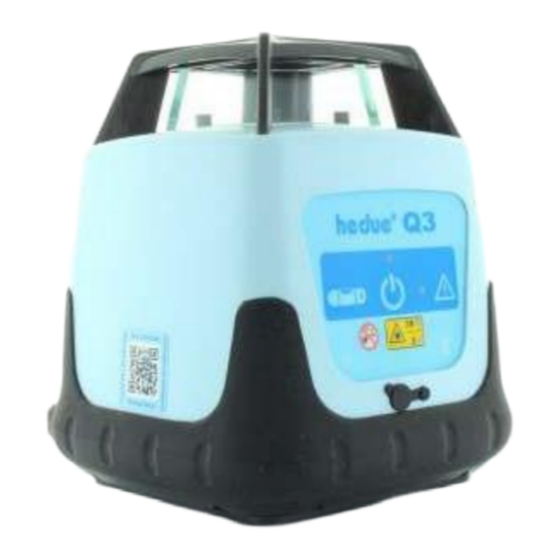

Rotating lasers hedue Q3 and Q3G
3R
2
Do not look into the laser beam!
Instruction manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hedue Q3

  • Page 1 [en] Rotating lasers hedue Q3 and Q3G Do not look into the laser beam! Instruction manual...
  • Page 2: Rma Service

    Free parcel card for many countries. For shipping from many European countries, we even cover the shipping costs. You can find a list of these countries at rma.hedue.de. 24 months warranty. During the first 24 months, your device is protected by our comprehensive warranty.
  • Page 3 The laser classes The hedue Q3 and Q3G rotating lasers can be operated in both laser class II and laser class 3R. Laser class 3R allows a higher light output, i.e. a stronger emission of laser radiation. Therefore, the laser beam is more visible in laser class 3R than in laser class II.
  • Page 4 weather The rotating laser is protected against dust and water according to IP54. This is a normal protection class for devices that are used outdoors. The device is protected against dust and splash water from all sides. This means that it is also adequately protected against rain.
  • Page 5: Battery Pack And Charger

    Battery pack and charger You can use the rotating laser and charge the battery pack at the same time. If the battery pack is empty, the device cannot be used even if the charger is connected. In this case, charge the battery pack at least partially before using the rotating laser.
  • Page 6 Crank tripods are often used for interior work, as they allow precise height adjustment of the laser line. In contrast, a simple leveling tripod is often sufficient for determining height differences outdoors. Leveling stand with flat head Crank stand with height adjustment (hedue 1050) with crank (hedue 1085)
  • Page 7 Leveling monitoring Normal operation: Short interruption in case of vibration. The rotating laser realigns itself after a shock and continues to rotate. Prevent automatic leveling with "Anti-Shake" (Tilt) On large or unclear construction sites, automatic leveling can lead to problems, e.g.
  • Page 8: The Remote Control

    It can also increase work safety. One remote control for a whole product family. This remote control is also used for other rotating lasers. The two keys with the dashed outline therefore have no function for the Q3 and Q3G rotating lasers.
  • Page 9 Line instead of rotation Button on the remote control This key ends the 360° rotation and switches to the line mode with 10° opening angle. The length of the line is determined by the opening angle and the distance of the rotating laser to the projection surface. With one further keystroke each, the opening angle is increased to 25°...
  • Page 10 The self-leveling function can be switched off. The device then rotates in any position. Slopes can be displayed in this way. The picture shows the angle adapter hedue WA2 with item number 1322. This red LED lights up when self-leveling is switched off:...
  • Page 11 Inclination of the X and / or Y axis Paved surfaces shall normally be constructed with a slope of 2.5% for drainage. This can be done by a transverse slope or by a combination of transverse and longitudinal slopes. To display the slope, the rotating laser can be tilted in the X or Y axis or in both axes.
  • Page 12 3. Tilt X axis You will need a sufficiently long measuring rod, e.g. the hedue S503 leveling rod, and the laser receiver with clamp holder, which you attach to the measuring rod. Mark a point in the direction of the X axis that is at least 1 m away from the rotating laser.
  • Page 13: The Pause Button

    4. Tilt Y-axis You can tilt the Y axis in the same way. However, use these remote control keys to tilt the Y axis. The pause button Button on the remote control The laser beam is switched off with this remote control key. However, the level monitoring remains active.
  • Page 14 Rotate vertical axis The vertical axis can only be rotated if self-leveling is switched off. Therefore, first deactivate the self-leveling with this key. After turning the axis, self-leveling can be switched on again. These remote control keys can be used to rotate the vertical axis. 90°...
  • Page 15 Check accuracy Set up the rotation laser on a tripod at a distance of 10 m from a wall. The keypad of the rotation laser faces the wall. Switch on the device. Wait until self- leveling is completed. Select the line mode with the remote control. Move the laser line to the wall. Mark the vertical center of the laser line on the wall as x1.
  • Page 16: Technical Data

    Technical data Working range with laser receiver 500 m Self leveling range horizontal 5° Self leveling range vertical 5° Inclination angle Leveling accuracy 1 mm / 10 m Rotation speeds rpm Laser class II,3R Laser diode 635 nm Opening angle of the line function 10°, 25°, 50°...
