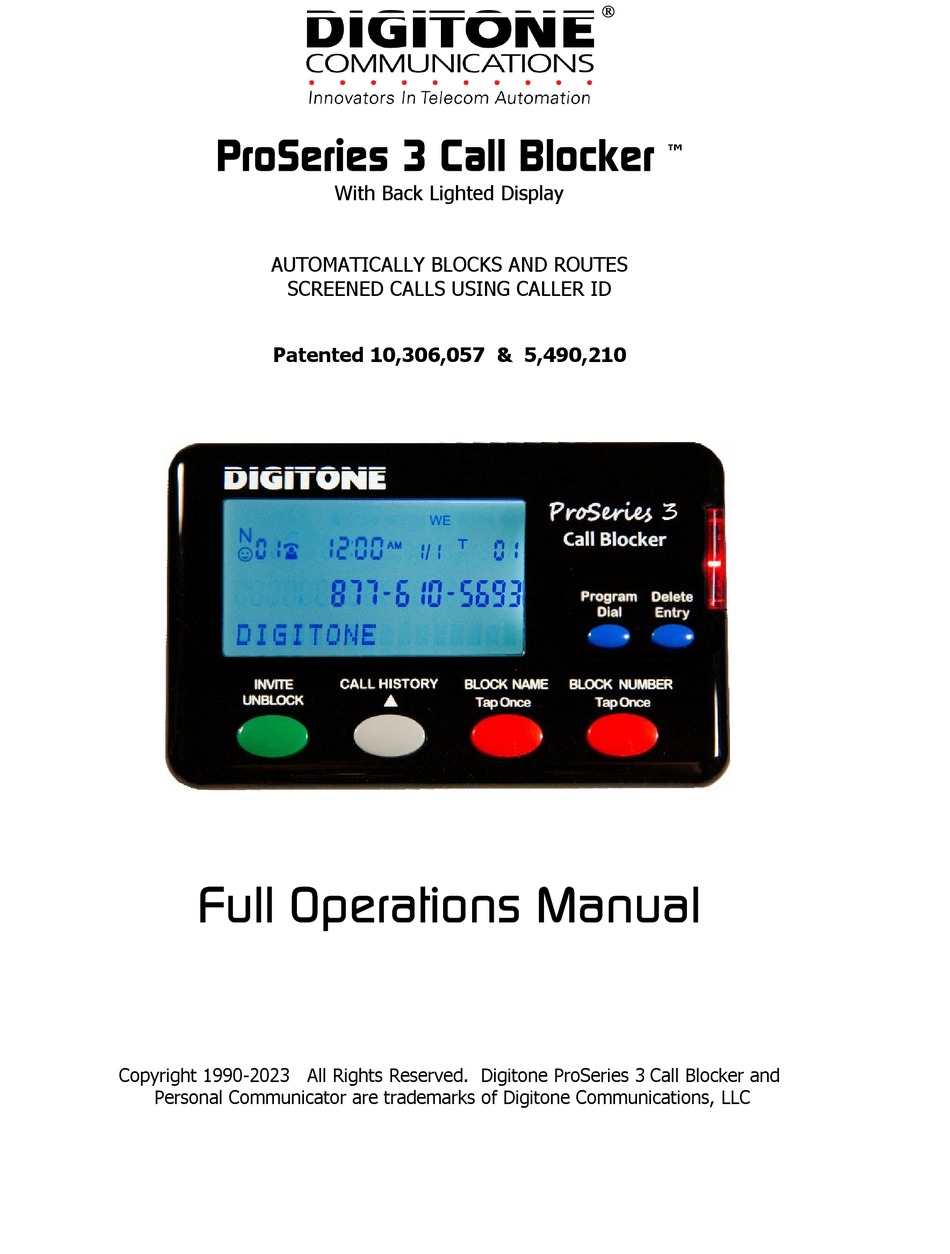

ProSeries 3 Call Blocker
™
With Back Lighted Display
AUTOMATICALLY BLOCKS AND ROUTES
SCREENED CALLS USING CALLER ID
Patented 10,306,057 & 5,490,210
Full Operations Manual
Copyright 1990-2023 All Rights Reserved. Digitone ProSeries 3 Call Blocker and
Personal Communicator are trademarks of Digitone Communications, LLC
Advertisement
Table of Contents
Related Manuals for Digitone ProSeries 3
Summary of Contents for Digitone ProSeries 3
- Page 1 ™ With Back Lighted Display AUTOMATICALLY BLOCKS AND ROUTES SCREENED CALLS USING CALLER ID Patented 10,306,057 & 5,490,210 Full Operations Manual Copyright 1990-2023 All Rights Reserved. Digitone ProSeries 3 Call Blocker and Personal Communicator are trademarks of Digitone Communications, LLC...
- Page 2 Names using Digitone’s Patented matrix system. Just connect your Phones and you’re ready to go as Digitone’s DPS3 can operate right out of the box. No Battery Backup is Needed. If a power outage occurs, all program settings remain intact.
-

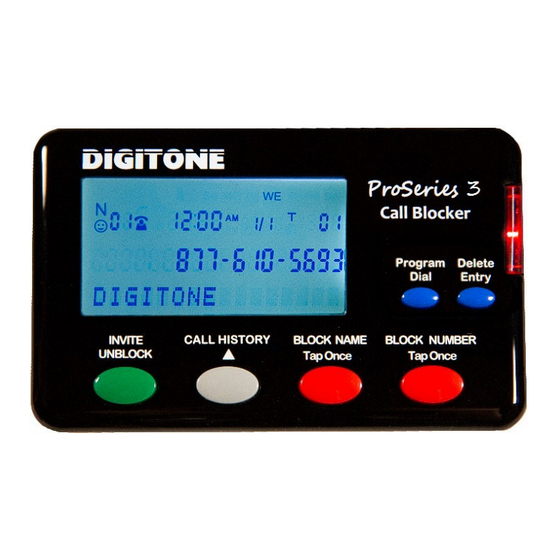

Page 3: Front Panel Buttons
Caller ID Service from your phone company is Required for Digitone’s ProSeries 3 Call Blocker to work. All calls displaying a valid phone number (except for Out of Area or Private) will ring the phones connected to the TEL phone port with Caller ID repeated. - Page 4 Invite GREEN Button (or Unblock) - Numbers Invited Callers, store up to 80 numbers, can be entered pressing and holding the GREEN Invite button on the front panel for one second until you see “Release Button” displayed. Release the button and you will see “NBR Invite Saved”. When an invited caller calls in, the caller ID will display their number and “Invited”.
-
Page 5: Caller Id Display
Fax or Medical Device - If you also have a Fax machine or even a Medical Alert device, these devices need to be in parallel with your ProSeries 3 Call Blocker so they have a direct connection to the phone line. The DPS3 should be used exclusively for your telephones. - Page 6 Testing your connection to the DPS3 With the ProSeries 3 Blocker powered up, go off-hook with the phone you are using in the TEL port. See if the DPS3 shows the Call Progress Timer on the lower line of the display, ex.
-
Page 7: Operating Modes
Code 28 - If you don’t want to see the LED flashing at all, you can disable it. Press and hold the Program Button for 3 seconds until you see “Program Mode”, then “Pick Up Phone”, when the prompt for “Enter Code” displays, enter 29. Default is 28. Operating Modes You can switch between the operating modes using the programming button and by entering one of the mode numbers. -
Page 8: Blocking Calls
Code 21 to view Spoofed Exchange Call list Code 41 to view Blocked Caller list Code 44 to view Blocked Names list Code 51 to view Invited Caller list Code 53 to view Invited Caller in a Blocked Area Code Code 61 to view VIP Caller list For each list, use the Call History button to view up or down. - Page 9 Clearing Blocked Numbers List Only Code 40 # * To delete just the blocked numbers already stored from using the Block Button or with the Last Call Remote Entry command of * 2 #, use Code 40 # *. This lets you clear out all the numbers that accumulated over the years and, also retains the known unwanted blocked entries.
- Page 10 Invited calls are passed through. Note: Extension phones connected directly to the phone service will ring once on blocked calls. Digitone recommends using a Cordless phone system with multiple handsets connected to the TEL port to distribute ringing throughout your home where you may have older wired corded phones permanently connected.
- Page 11 Button for 3 seconds until you see “Program Mode”, then “Pick Up Phone”, when the prompt for “Enter Code” displays, enter 73, display shows function. “Private” Call Pass Thru Code 74 Using Code 74 can allow “Private” type calls with No Number displayed to ring through to the TEL phone port while still blocking Out of Area and stored numbered calls.
- Page 12 After Hours Mode Settings Step 1) Monday thru Friday – Start Code 82 & End Time Code 83 Using military time as shown above, set this feature on by enter programming: press and hold the Program Button for 3 seconds until you see “Program Mode”, then “Pick Up Phone”, when the prompt for “Enter Code”...
- Page 13 Program Button for 3 seconds until you see “Program Mode”, then “Pick Up Phone”, when the prompt for “Enter Code” displays, enter 99 # *, display will show "Digitone Default". New Processing Levels New for the ProSeries Call Blocker is three Sort Levels of processing to defeat targeted attacks from scammers.
- Page 14 CHANGING the SORT PROCESSING LEVEL - To change the Processing Level from default Level 1, press and hold the Program Button for 3 seconds until you see “Program Mode”, then “Pick Up Phone”, when the prompt for “Enter Code” displays, enter 04#* .
- Page 15 Code 97 # * REG CALL DISABLE Block All Calls Except Invited Code 98 # * ALL DATA DELETED (Names and Numbers) Code 98 [number] * Delete specified number Code 99 # * DIGITONE DEFAULT Factory Reset ™ Digitone ProSeries 3 Call Blocker...
- Page 16 1-877-610-5693 to obtain a Return Merchandise Authorization (RMA). The purchaser would then put this code on the exterior of the package shipped to Digitone. Any unit returned without this code will be refused and returned at sender's expense. Product should be shipped freight prepaid along with evidence...
Need help?
Do you have a question about the ProSeries 3 and is the answer not in the manual?
Questions and answers
can it get too full of deleted #s - how do you get rid of them?
The Digitone ProSeries 3 Call Blocker does not become too full of deleted numbers because it uses Virtual Memory Management, which automatically deletes the oldest entries after many months or years if the memory reaches its limit. However, all data, including names and numbers, can be manually deleted using Code 98 [number].
