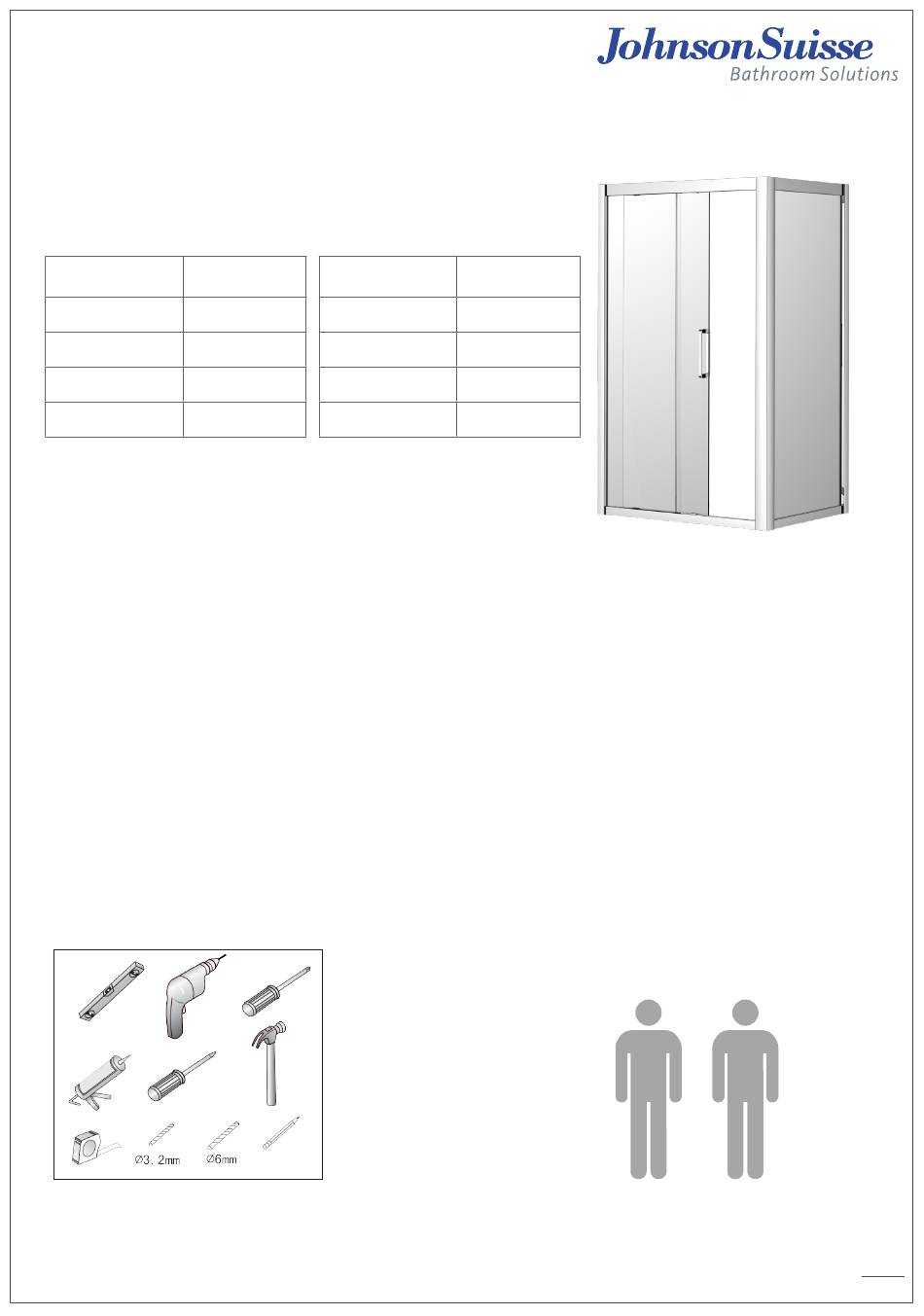

JohnsonSuisse CORSICA 1220 Installation Manual

CORSICA
SLIDER
SHOWER SCREEN INSTALLATION GUIDE
These installation guidelines relate to the following shower screen

components:

Model*
Panel Set
1220 Chrome SSD534CHS
1220 Matte Black SSD534BLS
1500 Chrome SSD537CHS
1500 Matte Black SSD537BLS
* Actual sizes:
1220 models - 1180 - 1225mm
1500 models - 1460 - 1505mm

IMPORTANT PRE-INSTALLATION NOTE:

• Immediately on receipt inspect the product for transit damage, missing packs/parts or manufacturing faults.
• Damage reported later cannot be accepted.
• Please handle the product with care avoiding knocks and shock loading to all sides and edges of glass.
• Damaged glass or missing parts will not be replaced under warranty if the installation process has begun.
• SAFETY GLASS CANNOT BE REWORKED, IF BROKEN IT HAS TO BE REPLACED
• Please read these instructions carefully before you start installation. Special care should be taken when drilling walls
to avoid hidden pipes or electrical cables.
• Securing into a stud or timber brace is highly recommended, if unable to do so, other secure means of fixing must
then be considered.

TOOLS REQUIRED

Front
Model*
900 Chrome
900 Matte Black
1000 Chrome
1000 Matte Black
* Actual sizes:
900 models - 860 - 905mm
1000 models - 960 - 1005mm
• 6mm masonry drill bit
• 3.5mm metal drill bit
• Power drill
• Neutral-cure silicone
• Silicone gun
• Pencil
• Tape measure
• Philips head screw driver
• Spirit level with horizontal and
vertical level indicators
• Knife
Return
Panel Set
SSD526CHR
SSD526BLR
SSD540CHR
SSD540BLR
This product is heavy and awkward to handle.
Two-person installation is recommended.
1
