Summary of Contents for Apollo H1-4PB

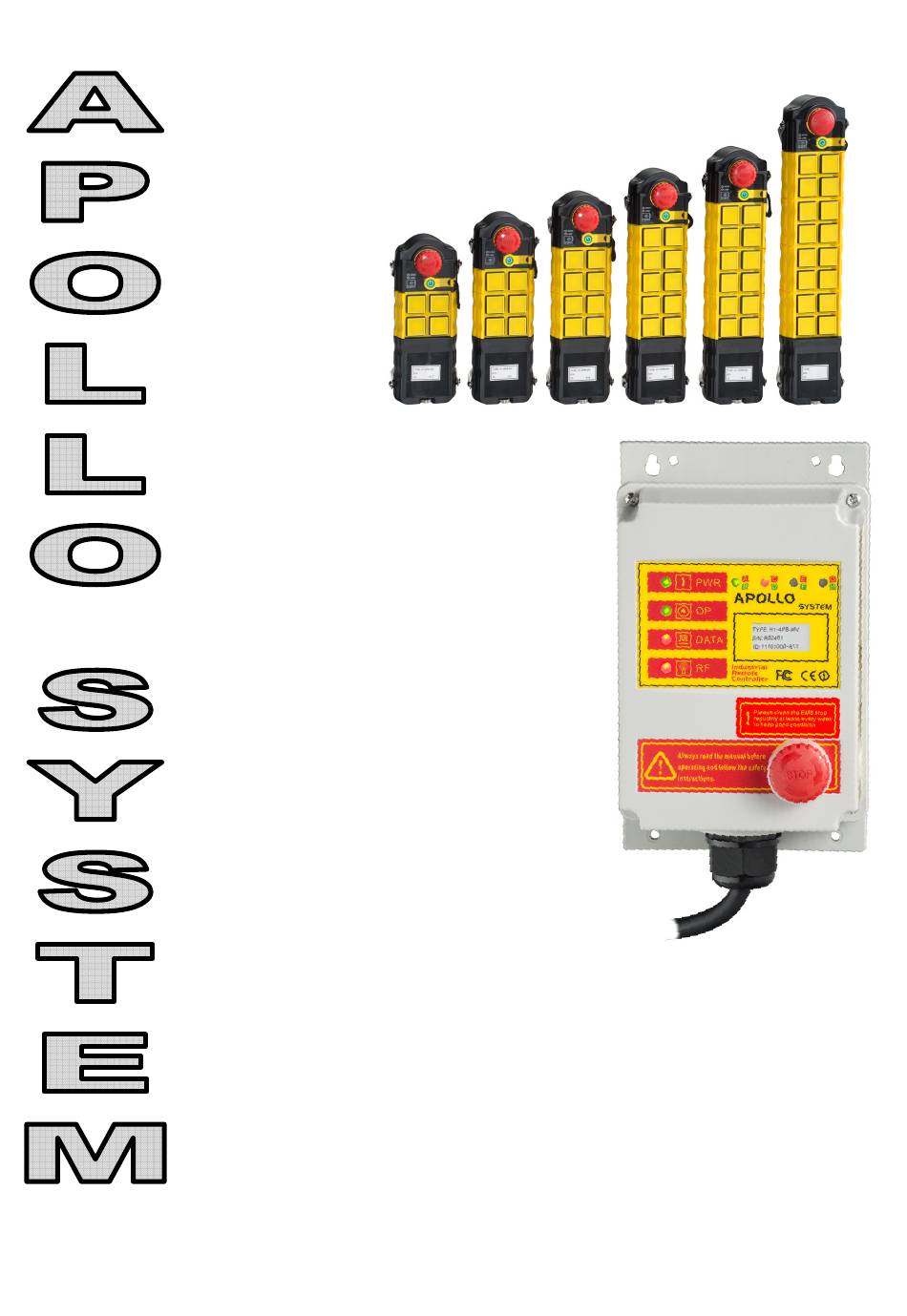

- Page 1 CONTENTS Page 2 : Introduction Technical Specifications Wiring Instructions Page 3 : Operating instructions Page 4 : Apollo programming Transmitter and receiver LED status indicators Page 5 : Trouble shooting Page 6 : Spare parts...

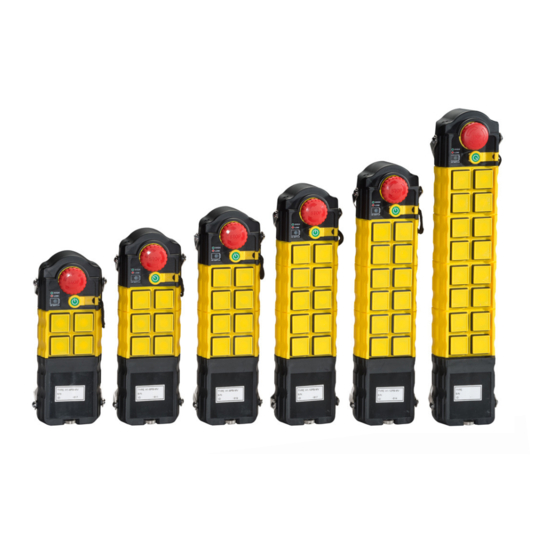

- Page 2 INTRODUCTION The APOLLO is a high quality, industrial grade remote control system, available in model formats from 4 to 12 functions. Featuring a dust, water and oil resistant casing the APOLLO transmitter will also resist most impacts and extreme weather conditions.
- Page 3 • All APOLLO receivers will have a master output labeled on the wiring diagram as “ ID1” you can read further about his output under APOLLO programming on page four of this manual Input Voltage All APOLLO receivers are “multivolt”...
- Page 4 Master Output Functionality The APOLLO systems also feature a master output, this output can be configured to provide an output when one or more of the transmitter function buttons are active to your requirements. Factory set to provide master output cross all functions when active. Master Output wire is identified as “ID1”...
- Page 5 Receiver OUTPUT indicators The APOLLO receiver also contains on the face panel, running horizontally across the top, four dual colour LEDs. These LEDs illuminate in parallel with an individual function. They provide a clear indication of which functions are active and that a positive voltage output is present on the corresponding wire.
- Page 6 SPARE PARTS BOX.1 CAP16 ED61 DD61 Note: The parts pictured above are from a 6 function APOLLO system and are for reference only. SPARE PARTS LIST APOLLO Transmitter APOLLO Receiver Spare Part Part number Spare Part Part number Box.1 receiver casing – for C1-4PB, C1-6PB,C1- 8PB,C1-10PB,C2-4PB used ( incl.
- Page 7 Note: wire / function number is printed on each wire in the loom coloured or not Note: each function maximum 3 amps – each output positive switch 12 or 24 volt dependent upon supply voltage to the Apollo receiver Wire number...
