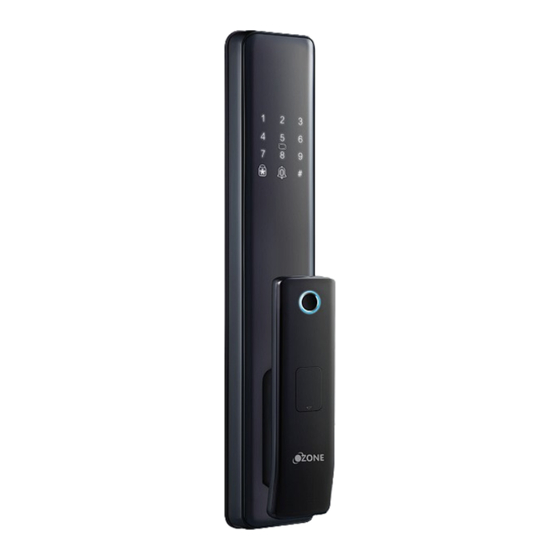

Ozone MORPHY NXT PLUS User Manual

Smart door lock
Hide thumbs Also See for MORPHY NXT PLUS:

Advertisement

Quick Links

Download this manual
USER MANUAL
MORPHY NXT PLUS
S M A R T D O O R L O C K
OZ-FDL-01 LIFE NXT PLUS
Z
O
Fingerprint
Password
OzoLife
RFID Card
Emergency
Mobile App
Key
DOWNLOAD NOW
OzoLife
OzoLife iOS
OzoLife Android
WWW.OZONESECUTECH.COM
1
EMAIL ID: INFO@OZONESECUTECH.COM | CUSTOMER CARE: +91-9310012300

Advertisement

loading
Need help?

Need help?

Do you have a question about the MORPHY NXT PLUS and is the answer not in the manual?

Questions and answers

Related Manuals for Ozone MORPHY NXT PLUS

Summary of Contents for Ozone MORPHY NXT PLUS

  • Page 1 USER MANUAL MORPHY NXT PLUS S M A R T D O O R L O C K OZ-FDL-01 LIFE NXT PLUS Fingerprint Password OzoLife RFID Card Emergency Mobile App DOWNLOAD NOW OzoLife OzoLife iOS OzoLife Android WWW.OZONESECUTECH.COM EMAIL ID: INFO@OZONESECUTECH.COM | CUSTOMER CARE: +91-9310012300...
  • Page 2 INDEX Introduction Installation Product Feature Operation App Feature & Add Lock 11-12 Notes 13-14 Warranty Card...
  • Page 3 INTRODUCTION 1.1 LOCK STRUCTURE Keypad Battery RFID Scanner Lock Button Battery Charging Interface Bell Reset RESET Quick Open Button Lock Button Key Cover Emergency Knob Key Hole Night Latch Knob Unlock Button Lock Button MicroUSB OPEN CLOSE external power port Please keep internal/external panel clean before installation.
  • Page 4 Spindle length should be 10-30mm protruding door panel 10~30mm 15~20mm Cylinder and core should be 15-20mm protruding door panel Battery cover Door Front panel parts Back panel parts Back panel parts Panel screw(cut when necessary) Installation Screw Data line Quick open button Handle spring Guide post Spindle...

  • Page 5: Installation

    INSTALLATION PANEL AND LOCK BODY INSTALLATION STEPS Adjust latch direction according to door opening side. Lock body and cylinder installation: Put lock body into the hole made and then tighten the screw, put cylinder into lock bodyguard hole after that tighten cylinder screw. Panel Installation a) Put stud and guidepost on front panel parts and tighten it, at the same time put spring into back panel square hole, cut spindle, and lock core when necessary.

  • Page 6: Product Features

    PRODUCT FEATURES ● Way to open: Fingerprint, Password, IC card, Key and combination. (refer to actual product) ● Fingerprint: Advanced semiconductor sensors, 360 degrees identification angle, finger sensor size 160*160, 508 dpi resolution and effectively false fingerprint (FRR <1%,FAR<0.00001%) ● Pin code: Fashionable touch screen technology, before correct password can input 12 digital which can avoid password peeping.

  • Page 7: Operation

    OPERATION RESET FACTORY DEFAULT: Press RESET at the back of the lock for 6 seconds; voice will prompt reset success. LOCK PARAMETER SETTINGS: Press “888#” to enter lock parameter setting menu. Motor torque setting: Enter into parameter setting - Press 1 for motor torque setting and press 1 again for high, 2 for medium and 3 for small.
  • Page 8 Delete register user (fingerprint/card/code): After confirm master - Press 2 for delete user, input code of user and press # for confirm( eg:003) delete after succeed press * for exit. SYSTEM SETTING: Touch screen for lights on and long press # (need verify master for further settle down) verify any master register - Press 3 for system setting.
  • Page 9 APP FEATURE Unlocking record: Unlock way+ unlock ID +timing; User can check record from App for 12 months. Offline record supplementary biography: After online, the device will upload offline records to the cloud. Alarm: Low battery, wrong password, wrong fingerprint, wrong card and anti prying alarm etc... Time synchronization: Lock time and server keep same, support global time zone + winter/summer time switch.
  • Page 10 Add Manually Long press # then press 1, enter into manage then press 3 for network setting and last press 1 for connecting. ADD TEMPORARY CODE SETTING After adding temporary code, need to try on lock then finished. Max. Support 10 groups of code, and code can be edited or deleted. Temporary codes can be settled down by period.
  • Page 11 How to read operation records? Select “Opening record” option on lock main interface How to associate app user account with lock user number? Open “Record” option on lock interface in App, select log record for User in Lock for which you want to map with App user account, Click on edit icon shown on right side of the record, Select App user from shown list and Click on “Save”...

  • Page 14: Warranty Card

    WARRANTY CARD E-Mail ID Invoice No. Total Quantity...
  • Page 16 • Read this manual carefully before installation and keep it safe, for future reference. OzoLife Ozone Secutech Pvt. Ltd. Registered Office: H 40, Bali Nagar, New Delhi - 110015, India Operations Office: Plot No. 548, Phase V, Udyog Vihar , Gurugram, Haryana - 122016, India...

This manual is also suitable for:

Oz-fdl-01 life nxt plus
