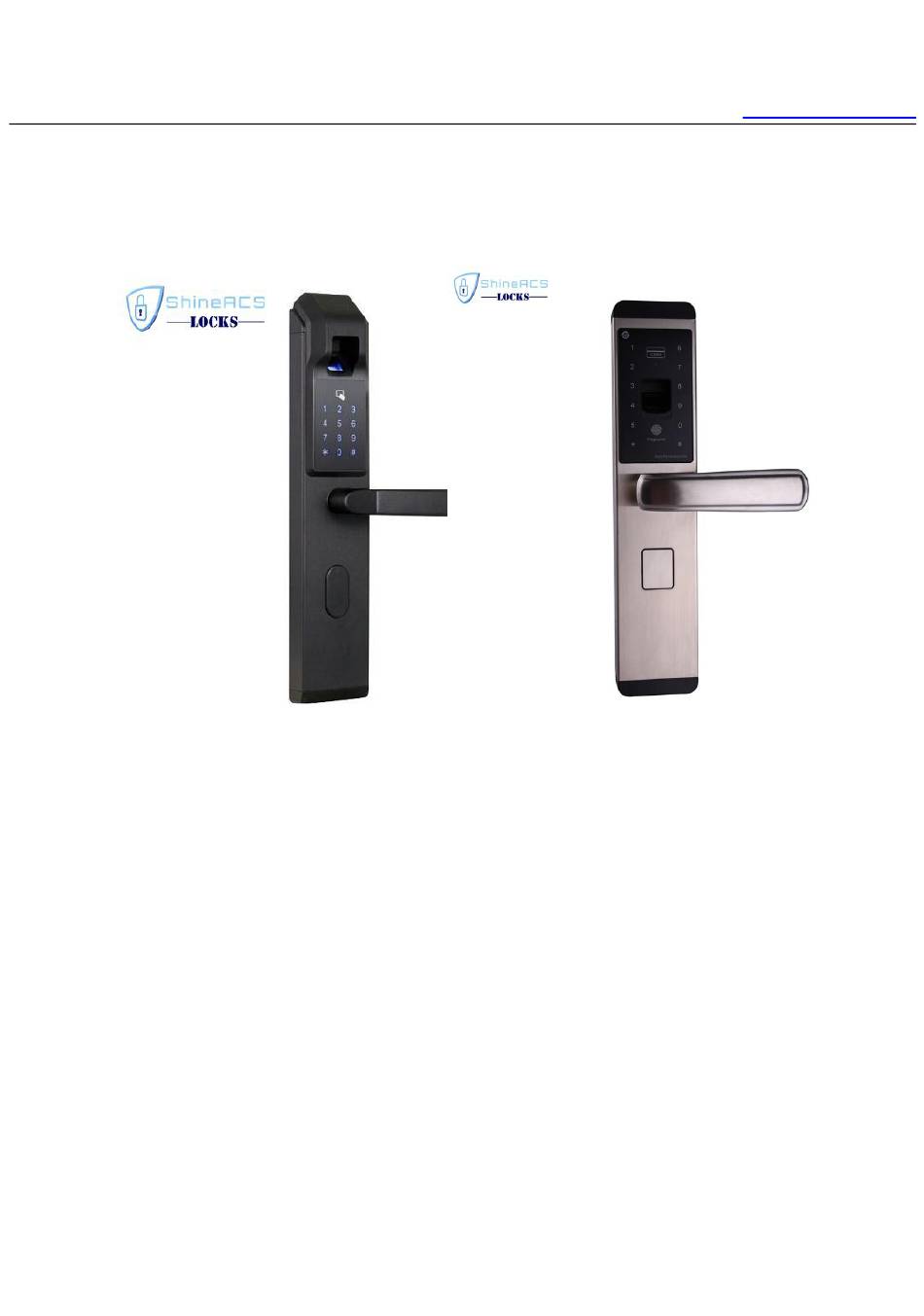

Fingerprint Front Door Smart Lock SL-F8903/F8905
www.acslocks.com
Fingerprint Front Door Smart Lock SL-F8903/F8905
User Manual
■ Master card is the highest authority of the door lock, please keep it safe
■ Mechanical key is for emergency unlock, please put it in a safe place
■ Dispose used batteries according to local environmental requirements
■ Do not mixture of old and new,or different brand batteries
■ Use AA alkaline batteries or AA1.5V rechargeable lithiumbatteries
■ Do not use water or other liquid shower door lock
■ Technological innovation, Please check our website
■ Final interpretation of this manual is on our company
Advertisement
Related Manuals for ShineACS SL-F8903
Summary of Contents for ShineACS SL-F8903
- Page 1 Fingerprint Front Door Smart Lock SL-F8903/F8905 www.acslocks.com Fingerprint Front Door Smart Lock SL-F8903/F8905 User Manual ■ Master card is the highest authority of the door lock, please keep it safe ■ Mechanical key is for emergency unlock, please put it in a safe place ■...
-
Page 2: Table Of Contents
Fingerprint Front Door Smart Lock SL-F8903/F8905 www.acslocks.com Contents Ⅰ Packing List ..................3 Installation Instructions ..............4 Ⅱ Change Door Direction..............6 Ⅲ Products Picture ................7 Ⅳ Function ................... 8 Ⅴ Ⅵ Specification …………………………………………… …………………………………………………… Ⅶ... -
Page 3: Ⅰ Packing List
Fingerprint Front Door Smart Lock SL-F8903/F8905 www.acslocks.com Packing List Please make sure the packing list is complete before installation Front Panel Back Panel Mortise Latch Square axis screw Screw Card Hexagon wrench Using Screw Screw Screw Screw Manual If lack any accessory, please contact the supplier. -
Page 4: Installation Instructions
Fingerprint Front Door Smart Lock SL-F8903/F8905 www.acslocks.com Installation Instructions 1、Install the Mortise 2、Fixed lock body 3、Install the Latch 4、Install upper screw 5、Install Down Screw 6、Install Mounted shaft... - Page 5 Fingerprint Front Door Smart Lock SL-F8903/F8905 www.acslocks.com 7、Open Right,the clutch 8、 Open Left,the clutch axis is 9、Install Front Panel axis is adjusted to R to the adjusted to L to the right right (lock vertical case) (lock vertical case) 右...
-
Page 6: Change Door Direction
Fingerprint Front Door Smart Lock SL-F8903/F8905 www.acslocks.com Change Door Direction 1、Roll out the bolt 2、Turn 180 Degree 3、Reposition the bolt 1、Mortise,Change Push or Pull direction The Mortise only have Push or Pull Roll out Bolt should put in side plate ◆... -
Page 7: Ⅲ Products Picture
Fingerprint Front Door Smart Lock SL-F8903/F8905 www.acslocks.com Production Picture Back Panel Front Panel 1、LED light 6、Battery case 后面板 2、Card Sensor area 7、Screw 3、Finger sensor 8、Back Handle 4、Front Handle 9、Lock Inside Button 5、Keyhole cover 10、Screw... -
Page 8: Function
Fingerprint Front Door Smart Lock SL-F8903/F8905 www.acslocks.com Function 1、Reset Use the Allen wrench in the accessory bag to press 5 times at the front panel reset hole, after two short sounds "Di, Di" The factory settings are resuming successful At this point there is no key for the door, please set the management cardasap. - Page 9 Fingerprint Front Door Smart Lock SL-F8903/F8905 www.acslocks.com 1 、 swipe the Master card in the lock,after 2 、 Add your fingerprint in the lock,you can 3、Set Fingerprint two short sounds “Di Di”,and can hear the hear a Long sound” Di” and 2 Short “Di Di”...
- Page 10 Fingerprint Front Door Smart Lock SL-F8903/F8905 www.acslocks.com 5、Delete Card and Fingerprint Read the Master card 5 times in the Lock,Can hear two short “Di Di”,The delete is successful. Delete all the Card and Fingerprint except the Master card ◆ 6、Low battery alarm When the Lock voltage is less then 4.8V, it will alarm out.
- Page 11 Fingerprint Front Door Smart Lock SL-F8903/F8905 www.acslocks.com 1、Remove Keyhole cover 2、Release Screw 3、Pull down battery case 7、Change Battery Put battery in right place +、- ◆ 1 、 Enter Fingerprint 2 、 Press the front handle 8、Open door with fingerprint...
- Page 12 Fingerprint Front Door Smart Lock SL-F8903/F8905 www.acslocks.com 1、Read card in the Lock 2、Press the front handle 9、Open door with Card Master card also can open the door ◆ 1、Remove Keyhole cover 2、Use the Key turn 855 degree 10、Open door with Mechanical key...
- Page 13 Fingerprint Front Door Smart Lock SL-F8903/F8905 www.acslocks.com 1、Close the Door 2、Raised handle 45 degrees 11 、 Lock inside or outside （Notice：Close the door, the oblique tongue has been locked） 12、Lock Inside Turn the lock knob cslockwise （Notice：Indoor lock, the outdoor can not unlock）...
-
Page 14: Ⅴ Ⅵ Specification
Fingerprint Front Door Smart Lock SL-F8903/F8905 www.acslocks.com Specification Item Technical Parameters Panel Material Stainless steel Handle Material Stainless Steel Mortise material Stainless steel tongue Oblique tongue Stainless steel Oblique tongue Front panel size 336×72×27 Back panel size 336×72×25 Self - triggered blue light high - speed optical... - Page 15 Fingerprint Front Door Smart Lock SL-F8903/F8905 www.acslocks.com common problem Solution Confirm that the direction of the clutch axis is correct After installation, read the Confirm the Back and Front Handle is in fingerprint,and put down the horizontal position and can work well...
- Page 16 Fingerprint Front Door Smart Lock SL-F8903/F8905 www.acslocks.com Warranty Card Model Install Sold date date Name Supplier Install person Date Problem Maintenance records Maintenance records Notice：Without this card,it would be paid service,please take card of it. Make a Safe home...
