RFID Keypad Cabinet lock SL-C113 User Manul-ACSlocks
www.acslocks.com

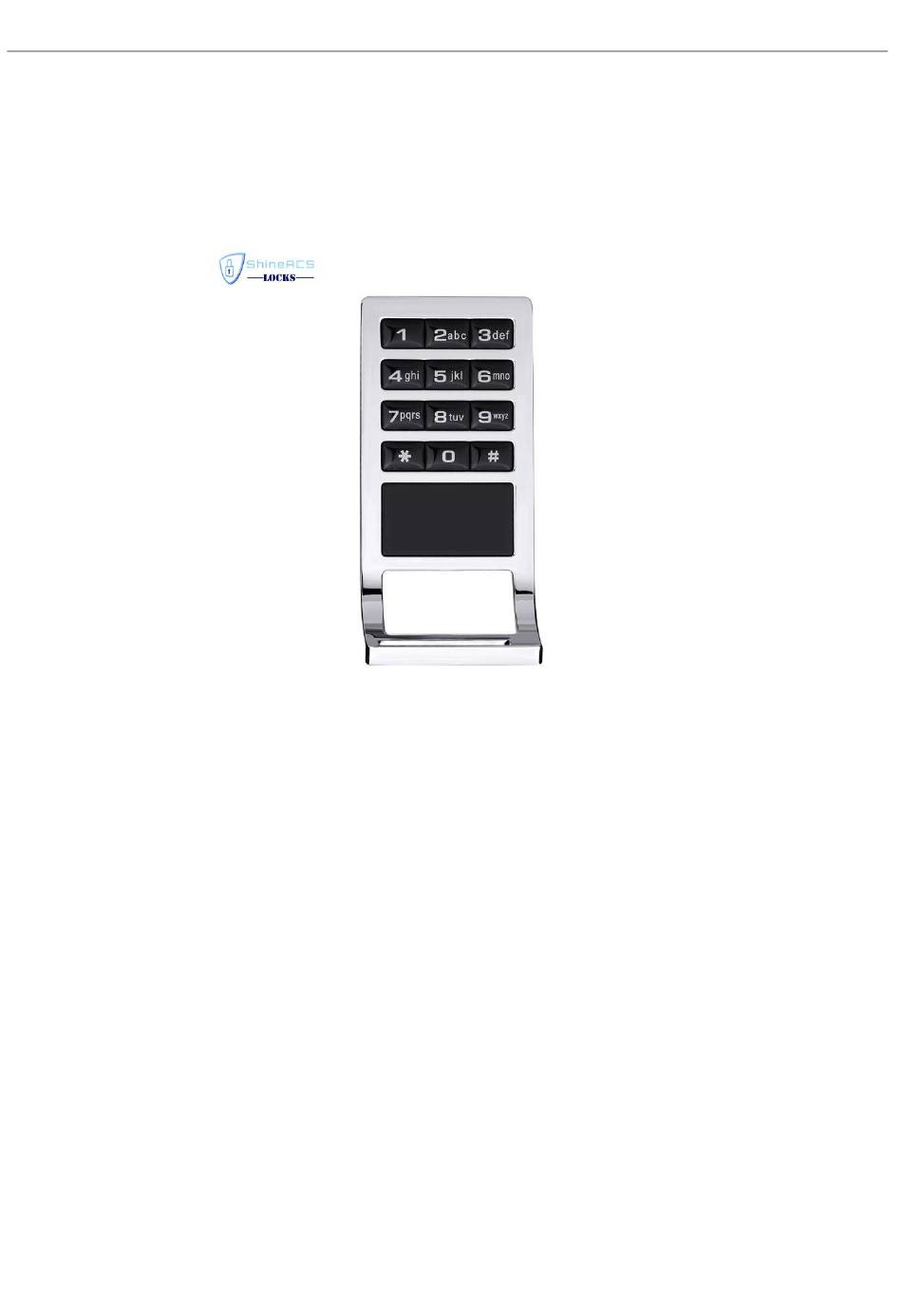

RFID Keypad Cabinet lock SL-C113
(ID card+ PIN code)
User Manual
: Welcome to choose our door lock, and this lock is suitable for Office,Home,Apartment, warehouse,etc.
Integrate the Code and Card function together,high security. ID cared is supported to success One-Card-Pass function.
Profile
- Card type: RF ID
Main Feature:
- Mechanical key input
- The card is set up with the lock only,no system software. Up to 2pcs master card,and 200pcs unlocking card
- Unlocking code can be exchanged by yourself, up to 1 master code,and 50 unlocking codes
- Messy code input is supported, up to 12 bytes
- Passageway lock can be set up
- Reminding when lock are not locked well
- Reminding when battery are in low voltage
- Work by battery, external battery can be connected
- Power supply: DC6V(4pcs AA battery,) for about 10 monthsduarable
Main specification:
- Power consumption: Static
<100uA,, Dynamic <300mA
- Low voltage reminding: <4.8V
- Sensor distance: >25mm
- Working temperature: 0-70 Celsius degree
Advertisement
Table of Contents
Related Manuals for ShineACS SL-C113
Summary of Contents for ShineACS SL-C113
- Page 1 RFID Keypad Cabinet lock SL-C113 User Manul-ACSlocks www.acslocks.com RFID Keypad Cabinet lock SL-C113 (ID card+ PIN code) User Manual : Welcome to choose our door lock, and this lock is suitable for Office,Home,Apartment, warehouse,etc. Integrate the Code and Card function together,high security. ID cared is supported to success One-Card-Pass function.
- Page 2 RFID Keypad Cabinet lock SL-C113 User Manul-ACSlocks -- Working humidity: <80% www.acslocks.com -1,Single type: ID card unlocking, or Code unlocking only Two unlocking mode: -2, Combined type: both ID card and Code together for unlocking Operation as follows: 1, The factory default master code is 12345678,and it's single type for unlocking. Follow the below step for exchange...
- Page 3 RFID Keypad Cabinet lock SL-C113 User Manul-ACSlocks (3)Mechanical key: Unlocking at emergency case, add master password. www.acslocks.com Input the 8bytes password"12345678",then Press the" key" button, motor active with blue light flashing, Press the "1" 1, Modify the master code( the default password of the locks is 12345678 ) button, one long"...
- Page 4 RFID Keypad Cabinet lock SL-C113 User Manul-ACSlocks code again www.acslocks.com Press the "*" button for exit. , unlocking by master code 4, Unlocking Input the master code, and Press the "key" button, there would be one "di" sound, motor active, and blue light flashing slowly for reminding unlocked.
- Page 5 RFID Keypad Cabinet lock SL-C113 User Manul-ACSlocks Follow the above operation can add more unlocking cards, up to 200 unlocking cards can be added. And when the www.acslocks.com unlocking card is exist, there would be two short "di" sounds for reminding.
- Page 6 RFID Keypad Cabinet lock SL-C113 User Manul-ACSlocks www.acslocks.com Item commodity Unit quantity note Package list: Front panel With PCB board, tapered end Door frame fasteners Lock core With battery base non-slip mat Accessories package User manual...
