Request-to-Exit Pushbuttons
SD-6176-SSVQ
SD-6276-SSVQ
SD-6176-SS1Q
SD-6276-SS1Q
SD-6176-SSQ*
SD-6276-SSQ*
*
Special order item. Please contact SECO-LARM.
Piezoelectric push buttons for indoor or
outdoor use (IP65, except models with
manual override button)
LED ring around button changes from
green to red or red to green when the
button is pressed
Outdoor Piezoelectric
Manual
Slimline plate, manual override
Single-gang plate, manual override
Slimline plate, "EXIT/SALIDA"
Single-gang plate, "EXIT/SALIDA"
Slimline plate, "TOUCH/EXIT"
Single-gang plate, "TOUCH/EXIT"
Timed or toggle output
Available with separate manual override button
in case power to piezoelectric pushbutton fails
SPDT Relay rated 2.5A@24 VAC/VDC with
two individually programmable outputs
(NO/NC)
5024193
Conforms to
UL Std. 294
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ENFORCER SD-6176-SSVQ
Summary of Contents for ENFORCER SD-6176-SSVQ

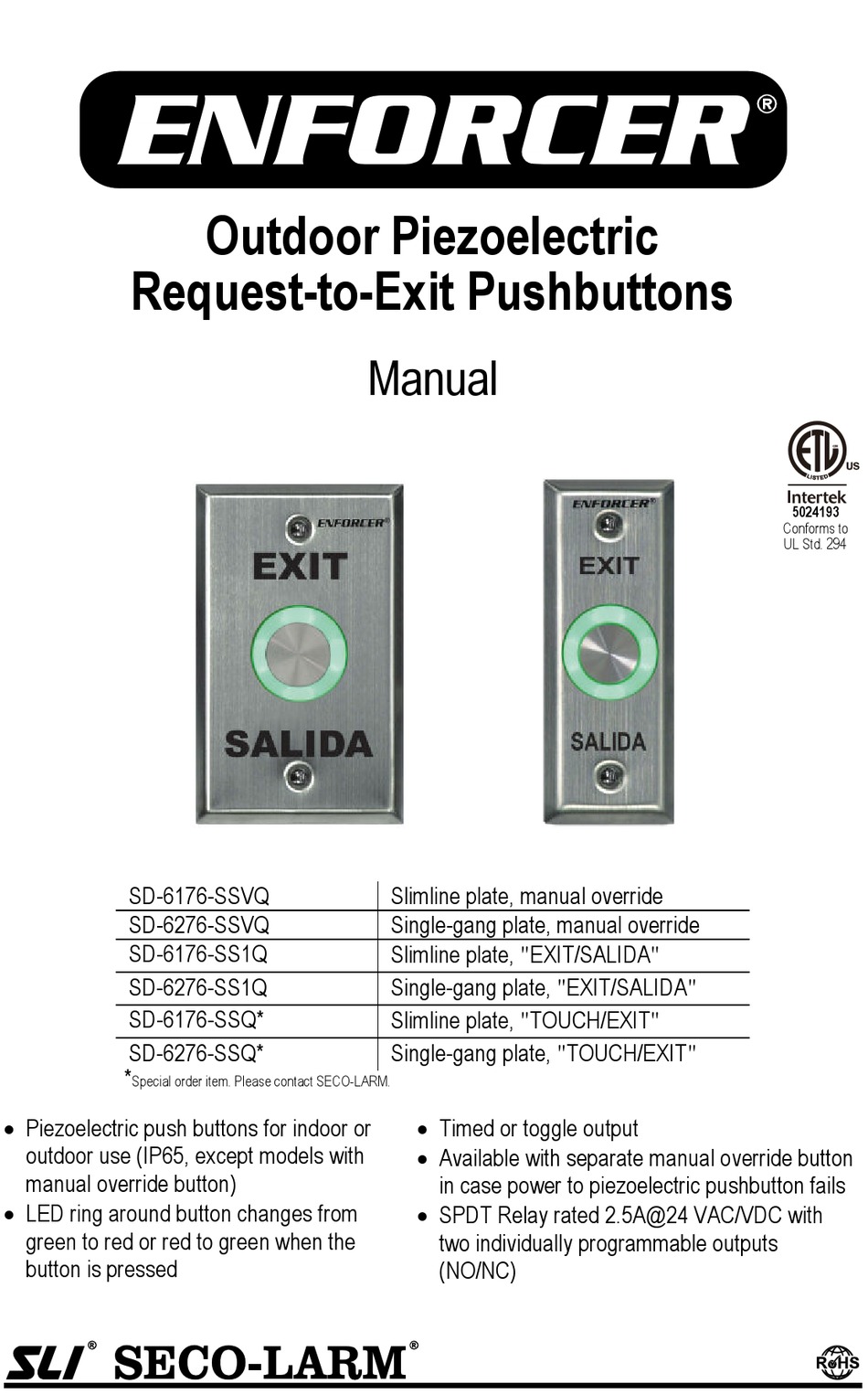

- Page 1 Outdoor Piezoelectric Request-to-Exit Pushbuttons Manual 5024193 Conforms to UL Std. 294 SD-6176-SSVQ Slimline plate, manual override SD-6276-SSVQ Single-gang plate, manual override SD-6176-SS1Q Slimline plate, "EXIT/SALIDA" SD-6276-SS1Q Single-gang plate, "EXIT/SALIDA" SD-6176-SSQ* Slimline plate, "TOUCH/EXIT" SD-6276-SSQ* Single-gang plate, "TOUCH/EXIT" Special order item. Please contact SECO-LARM.
- Page 2 2. Remove the plastic cover from the rear of the switch and carefully pierce the rubber grommet. 3. SD-6176-SSVQ and SD-6276-SSVQ: Wire the manual override button. See pg. 3. 4. Wire the switch according to the diagram on the right.
- Page 3 ENFORCER Outdoor Piezoelectric Request to Exit Pushbutton Wiring the Manual Override: SD-6176-SSVQ and SD-6276-SSVQ Only Connect the manual override button with the included wires. Wiring For N.O.: Wiring For N.C.: Connect the two Connect the two wires between the wires between...
- Page 4 ENFORCER Outdoor Piezoelectric Request to Exit Pushbutton Sample Installation: Electromagnetic Lock (Fail-Safe) with Strobe Light ENFORCER ENFORCER Electromagnetic Lock LED Strobe Light NOTE: No wiring may exceed 98 ft (30m) in length. California Proposition 65 Warning: These products may contain chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm.
