Z-HAN B
Installers manual
TABLE OF CONTENTS
1. Introduction
2. Statement regarding products from multiple manufacturers
3. Behaviour within the Z-Wave™ network
4. Quick Start
1. INTRODUCTION
Firmware 1.0

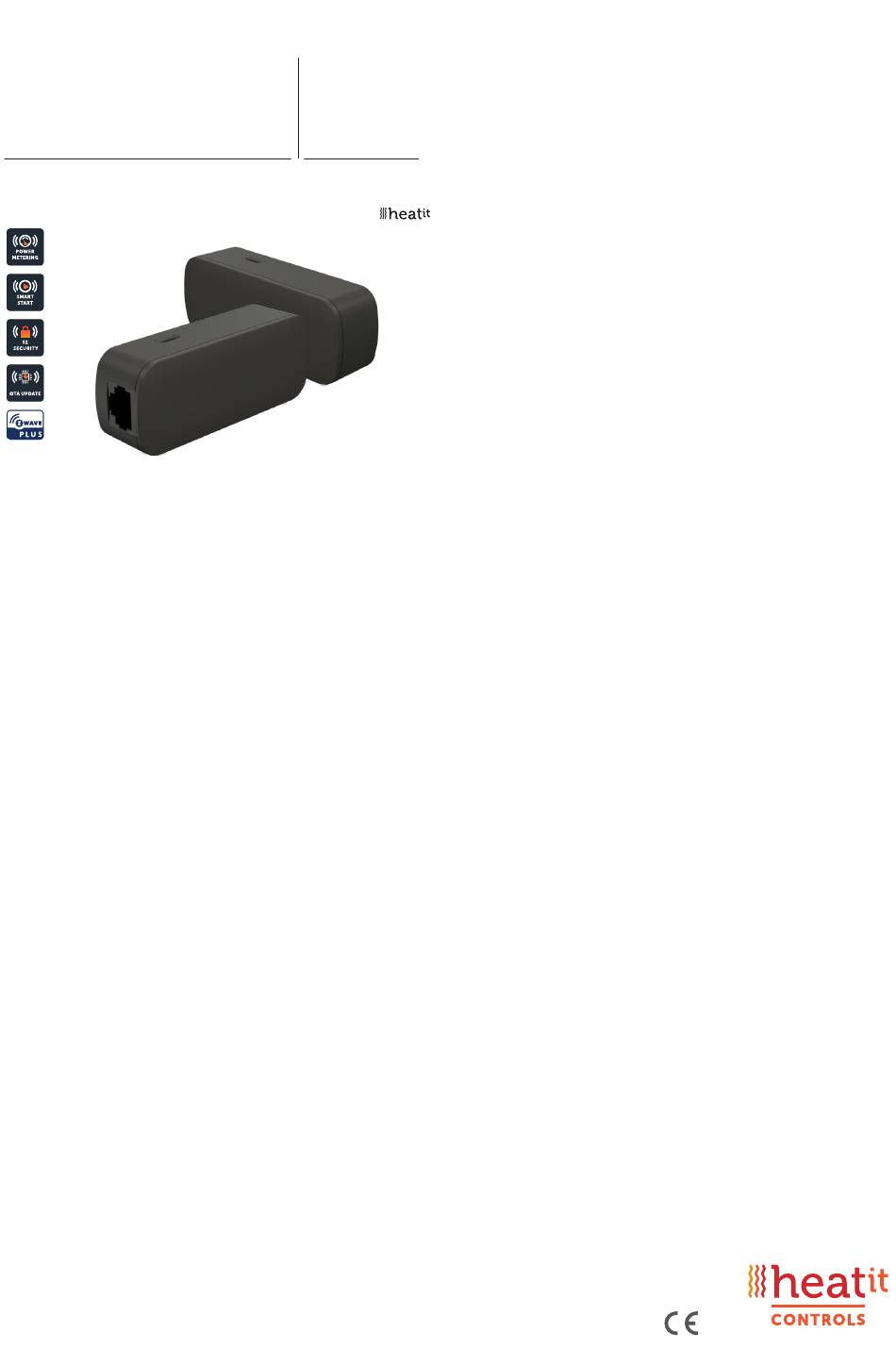

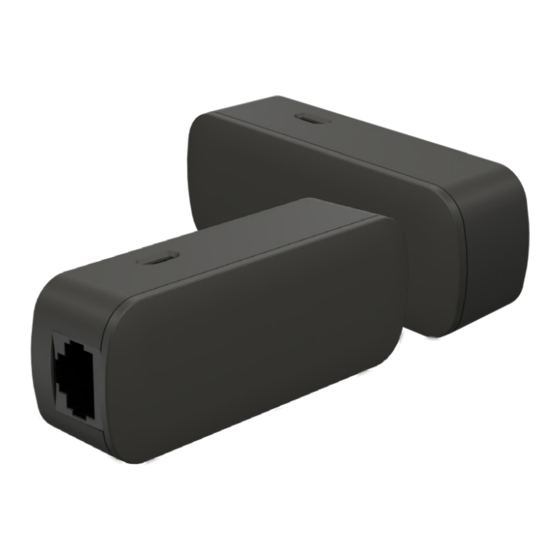

Heatit Z-HAN B is a Z-Wave™ HAN sensor for AMS meters (Smart
meters). The Heatit Z-HAN B works with Norwegian AMS meters.
01.11.2022
Ver 2022-A
Heatit Z-HAN B is equipped with an RJ45 port for connection to the
Art.no. 45 124 96
AMS meter. The Heatit Z-HAN B can be powered through the RJ45 port
by most AMS meters, but it also has a 5V micro USB port for external
power supply.
2. STATEMENT REGARDING PRODUCTS FROM MULTIPLE
MANUFACTURERS
Please read this before installation
This device may be used with all devices certified with the Z-Wave
Plus™ certificate and should be compatible with such devices
produced by any manufacturer. Every primary controller is different
depending on the manufacturer, their target audience and intended
use/application. Please review the functionalities implemented
by the primary controller you intend to use with our Z-Wave Plus
certified device to ensure that it provides the necessary controls to
take full advantage of our product's capabilities.
3. BEHAVIOUR WITHIN THE Z-WAVE™ NETWORK
This device may be operated within any Z-Wave network with
Z-Wave-certified devices from other manufacturers. All non-battery-
operated nodes within the network will act as repeaters regardless of
manufacturer to increase the reliability of the network. On delivery,
the device does not belong to any Z-Wave network. The device needs
to be added to an existing network to communicate with the other
devices within it. Devices may also be removed from a network. The
add/remove processes are initiated by the primary controller of the
Z-Wave network.
4. QUICK START
1. Contact your energy company to activate your HAN-port.
2. Connect power to the Z-HAN sensor with a micro USB cable.
3. Set the primary controller to add mode (security/non-security).
4. Press the reset button on the HAN sensor 3 times in a rapid
5. Open your main fuse box.
6. Plug the RJ45 cable into the Energy meter and the Z-HAN sensor.
sequence. Heatit Z-HAN is now included in your Z-Wave network.
