Heatit Controls HEATIT Z-HAN B Quick Manual

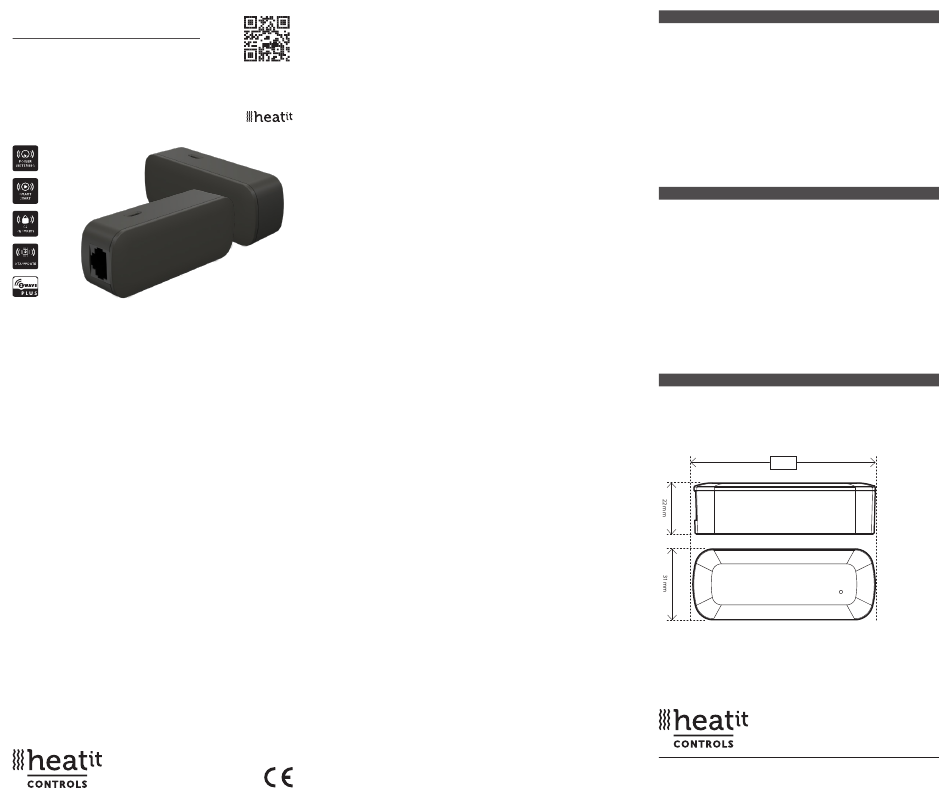

HEATIT Z-HAN B
Quick Guide
Art. no. 45 124 96
01.11.2022 Ver 2022-A
INTRODUCTION
Heatit Z-HAN B is a Z-Wave™ HAN sensor for AMS meters (Smart
meters). The Heatit Z-HAN B works with Norwegian AMS meters.
Heatit Z-HAN B is equipped with an RJ45 port for connection to
the AMS meter. The Heatit Z-HAN B can be powered through the
RJ45 port by most AMS meters, but it also has a 5V micro USB port
for external power supply.
STATEMENT REGARDING PRODUCTS FROM MULTIPLE
MANUFACTURERS
Please read this before installation
This device may be used with all devices certified with the
Z-Wave Plus™ certificate and should be compatible with such
devices produced by any manufacturer. Every primary controller
is different depending on the manufacturer, their target audience
and intended use/application. Please review the functionalities
implemented by the primary controller you intend to use with
our Z-Wave Plus certified device to ensure that it provides
the necessary controls to take full advantage of our product's
capabilities.
QUICK START
1. Contact your energy company to activate your HAN-port.
2. Connect power to the Z-HAN-sensor with a micro USB cable.
3. Set the primary controller to add mode
Complete english manual:
(security/non-security).
manuals.heatit.com
4. Press the reset button on the HAN-sensor 3 times in a rapid
sequence. Heatit Z-HAN is now included in your Z-Wave
network.
5. Open your main fuse box.
6. Plug the RJ45 cable into the energy meter and the
Z-HAN-sensor.
ADD/REMOVE
Please read this before installation
The primary controller/gateway has a mode for adding or
removing devices. Please refer to your primary controller manual
on how to set the primary controller in add/remove mode. The
device may only be added or removed from the network if the
primary controller is in add/remove mode. We recommend adding
the device within a 2m range from the gateway. When the device
is removed from the network, it will NOT revert to factory settings.
Standard (Manual)
Add/remove mode is indicated on the device by a blinking green
LED. It blinks for 90 seconds until a timeout occurs, or until the
HAN-sensor has been added to/removed from the network.
To start the configuration process, press the reset button 3 times
in rapid succession. The LED will light up in green for 3 seconds
if adding/removing is successful. The device is now ready for use
with default settings. If adding the device fails, please perform a
"remove device" process and try again. If adding fails again, you
may consider performing a factory reset.
SmartStart
SmartStart-enabled products may be added to a Z-Wave network
by scanning the Z-Wave QR-Code on the product if your primary
controller supports SmartStart inclusion. No further action is
required, and the SmartStart product will be added automatically
after being powered on within range of the primary controller
(within a 2m range is recommended).
FEATURES
• Z-Wave HAN sensor • SmartStart
• RJ45 and Micro-USB • Firmware update (OTA)
• Power metering • Temperature sensor
Supports encryption mode S0, S2 Authenticated Class,
S2 Unauthenticated Class
The product must be used with a security-enabled Z-Wave
Controller in order to fully utilize security/encryption.
TECHNICAL DATA
Protocol
Z-Wave, 868.4MHz
Chip
Z-Wave 700 chip
Rated voltage
5V DC
Ambient temperature
5°C to 40°C
Humidity 10% til 85% RH
Range RF
Min. 40 meters
IP Code
IP 20
Size (LxWxH)
80 x 31 x 22mm
Approvals Z-Wave Plus v2, CE
MAINTENANCE
The device is maintenance-free. Only for indoor installation.
