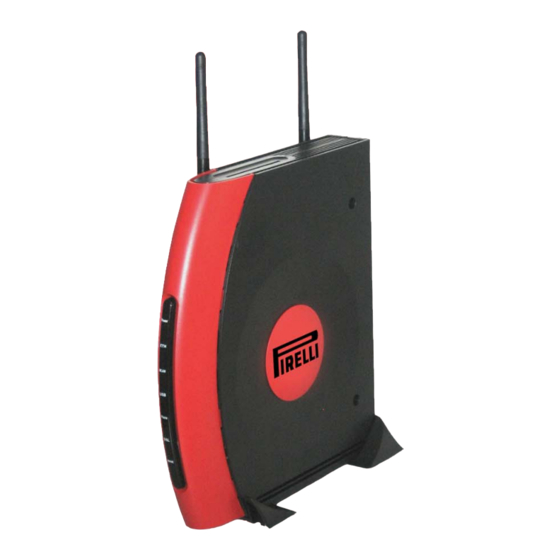

Pirelli DISCUS DRG A226G Quick Installation Manual
  1. Manuals
  2. Brands
  3. Pirelli Manuals
  4. Network Router
  5. DISCUS DRG A226G
  6. Quick installation manual

Pirelli DISCUS DRG A226G Quick Installation Manual

Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DISCUS DRG A226G and is the answer not in the manual?

Questions and answers

Related Manuals for Pirelli DISCUS DRG A226G

Summary of Contents for Pirelli DISCUS DRG A226G

  • Page 2: Front View

    FRONT View Ref. LED colour LED description POWER Green/Red Solid Green - Power On Solid Red - Boot Loader Failure - Power Off Ethernet Green - Ethernet Link established Blinking - LAN activity present (traf- fic in either direction) - No Ethernet Link estab- lished Wireless Green...

  • Page 3: Rear View

    REAR View PORT DESCRIPTION Phone DSL connector (ADSL2/2+) FXO port FXS ports USB 2.0 Host port USB 1.1 Device port Four Ethernet ports 10/100 Mbps Reset to factory default button Power button Power connector Package Content Your new DISCUS™ DRG A226G ADSL2+ Router kit contains the necessary hardware and soft- ware to establish a connection to the network.

  • Page 4: System Requirements

    By purchasing your DISCUS™ DRG A226G unit you have entered into the world of broadband Internet access. This Quick Installation Guide is meant to help you install your Router and establish a connection from your computers to the Internet, quickly and easily. System Requirements Before starting you must ensure the following: •...

  • Page 5: Installing Microfilters

    Installing Microfilters Before beginning installation you must locate devices in your house requiring a DSL filter such as phones, fax machines, answering machines, dial-up modems, Satellite TV dialers or monitored security systems and attach a DSL filter to any one of them sharing the same phone line as your DSL router.
  • Page 6 To connect the Ethernet cable: 1. Connect one end of the Ethernet cable into one of the four Ethernet ports on the rear of the Router 2. Connect the other end of the Ethernet cable into the Ethernet Network card of your computer 3.

  • Page 7: Accessing To The Router

    MAC 10.x 1. Connect one end of the USB cable into the USB port of your PC 2. Connect the other end of the USB cable into the USB port on the rear of the Router. The Opera- ting System will automatically recognize the device Accessing to the Router The Router setup program is web based, which means that it is accessed through your web browser.
