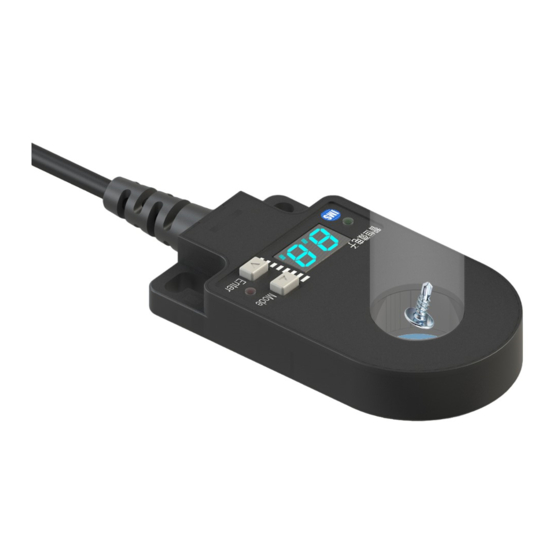

IMS RX5 Instruction Manual

IMS
Inductive Ring Sensor
INSTRUCTION MANUAL
! WARNING
Thank for you selecting IMS product.This sheet primarily describes precautions
required in installing and operating the product.Before operating the product,read
the sheet thoroughly to acquire sufficient knowledge of the product.For your
convenience,keep the sheet at your disposal.
! CAUTION
Failure to follow these instructions may result in serious injury or death：
Fail-safe device must be installed when using the unit with machinery that may
cause serious injury or substantial economic loss. (e.g. nuclear power control,
medical equipment, ships, vehicles, railways, aircraft, combustion apparatus,
safety equipment, crime/disaster prevention devices, etc.)
Failure to follow these instructions may result in product damage：
Do not use this unit over rated voltage；
Do not use this unit where there is flammable or explosive gas；
Do not use this unit where there is vibration or impact；
In cleaning the unit, do not use water or an oil-based detergent.
Features
Suitable for the detection of small metal object
Digital display, sensitivity can be adjusted according to the size of object
There are various ring dimension to meet different requirements
Dual LED makes you easy to know the current operating situation
Only 12mm thickness, to meet the high-speed blanking requirements
Ordering information
CX 30 68 Tn Vn 3 N
Output
Accuracy/Sensitivity*(1)
V：Channel spacing ，n：number（mm）
Tn：channel number,no need to fill in single channel
Length of sensing area,no need to fill in the ring series
Width of sensing area
Item*(2)
*(1) ：Accuracy refers to the smallest particle size to achieve no blind area detection；
*(2) ：Non-standard structure can be designed.
O
F A
Alarm Non
Alarm output
A
Reset time Fixing
F Off-delay function
Response time Fixing
O On-delay function
N NPN
P PNP
Number Unit：mm
Vn Channel spacing
n Number,4、6、8...
Number Unit：mm
Number Unit：mm
CX Frame seires
RX Ring series
EX Slot series
PG Miniature
Specifications
Model RX5
Application range
Metal particles
D=5mm
Sensing hole D=10mm
Minimum Resolution 0.7mm
Power voltage
DC10~30V(including voltage ripple of 10%(p-p)max.)
Current consumption 25mA Max.(not including the load)
Load current Max. 100mA
Output NPN、PNP
Power on delay，power supply reverse polarity protection，output
Circuit protection
short-circuit protection，output reverse polarity protection
Response time 1ms
Key
Sensitivity adjust
100,000 times min.（frequency of opening and closing:1,800 times per hour）
Life expectancy
Ambient illumination Incandescent lamp：Max. 5，000lx /Sunlight：Max. 50，000lx
Operation：-20 ～ 65 ℃/Storage：-25 ～ 80 ℃（with no icing and
Ambient temperature
condensation）
Ambient humidity Operation:45 ～ 85%RH/Storage:35%～95%RH(with no condensation)
Degree of protection
IEC：IP64
φ4mm，4-wire，Length：2m
Cable
Case PC
Material Button silicone
silicone
Bushing
Accessory Instruction，M4*12(2 pcs)
Weight Approx. 85g

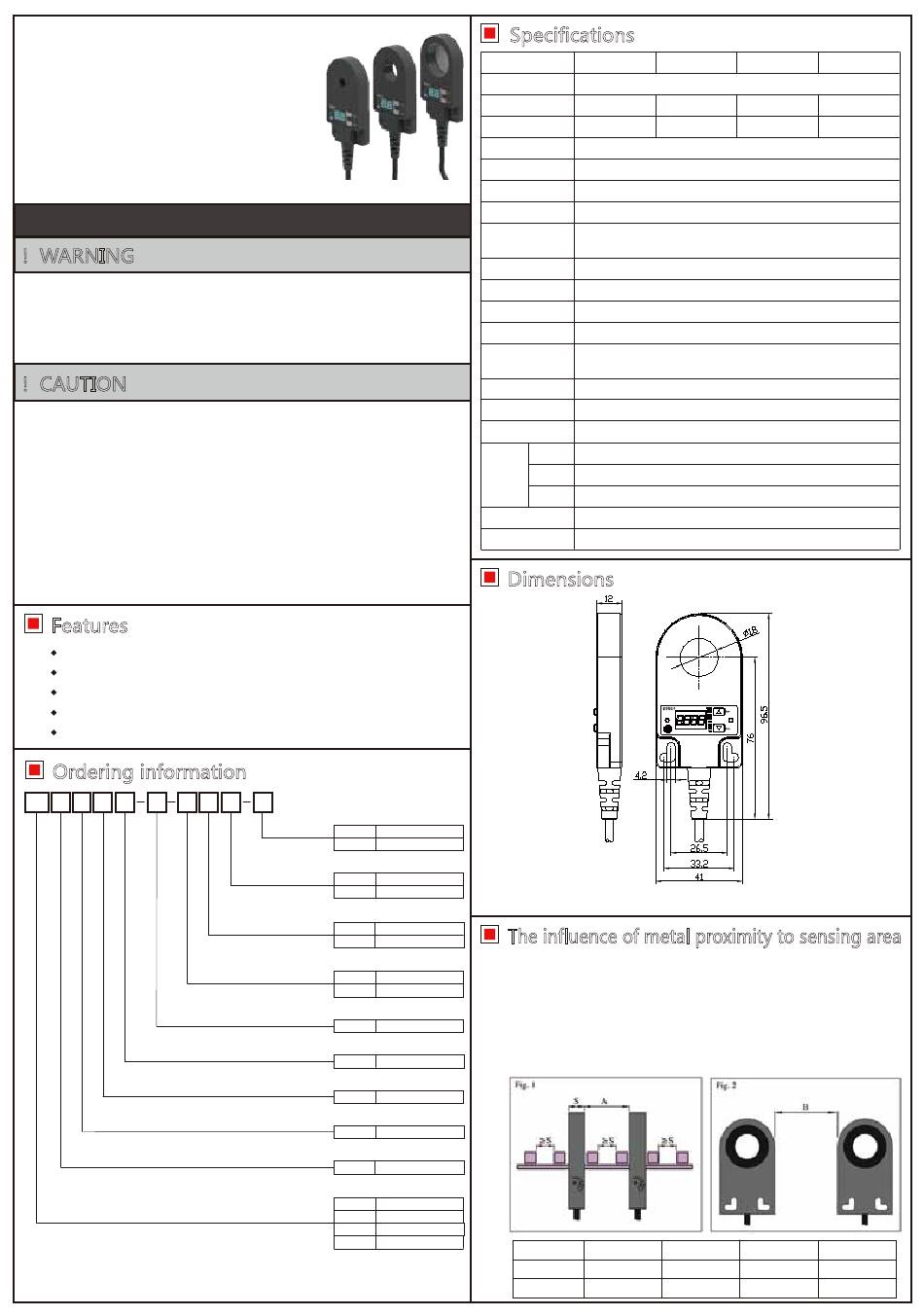

Dimensions
※ For each model, except for the hole dimension (φ18), the other dimensions are the
same as above.
The influence of metal proximity to sensing area
If a moving metal part is near the sensing area, the sensor output may
be disturbed. To avoid this, keep a distance from the metal object when
installing the sensor to ensure that the sensor function correctly.
Every object passing through the sensor should be spaced at least one
sensor width distance. If more than a sensor is installed in the adjacent
area, the minimum distance between the sensors must be observed as
shown in the following table.
Model
RX5
A(Fig.1)mm 60
B(Fig.2)mm 10
RX10 RX18 RX30
D=18mm D=30mm
3mm 4mm
1.2mm
RX18
RX10
80 100
30 50
RX30
120
70
