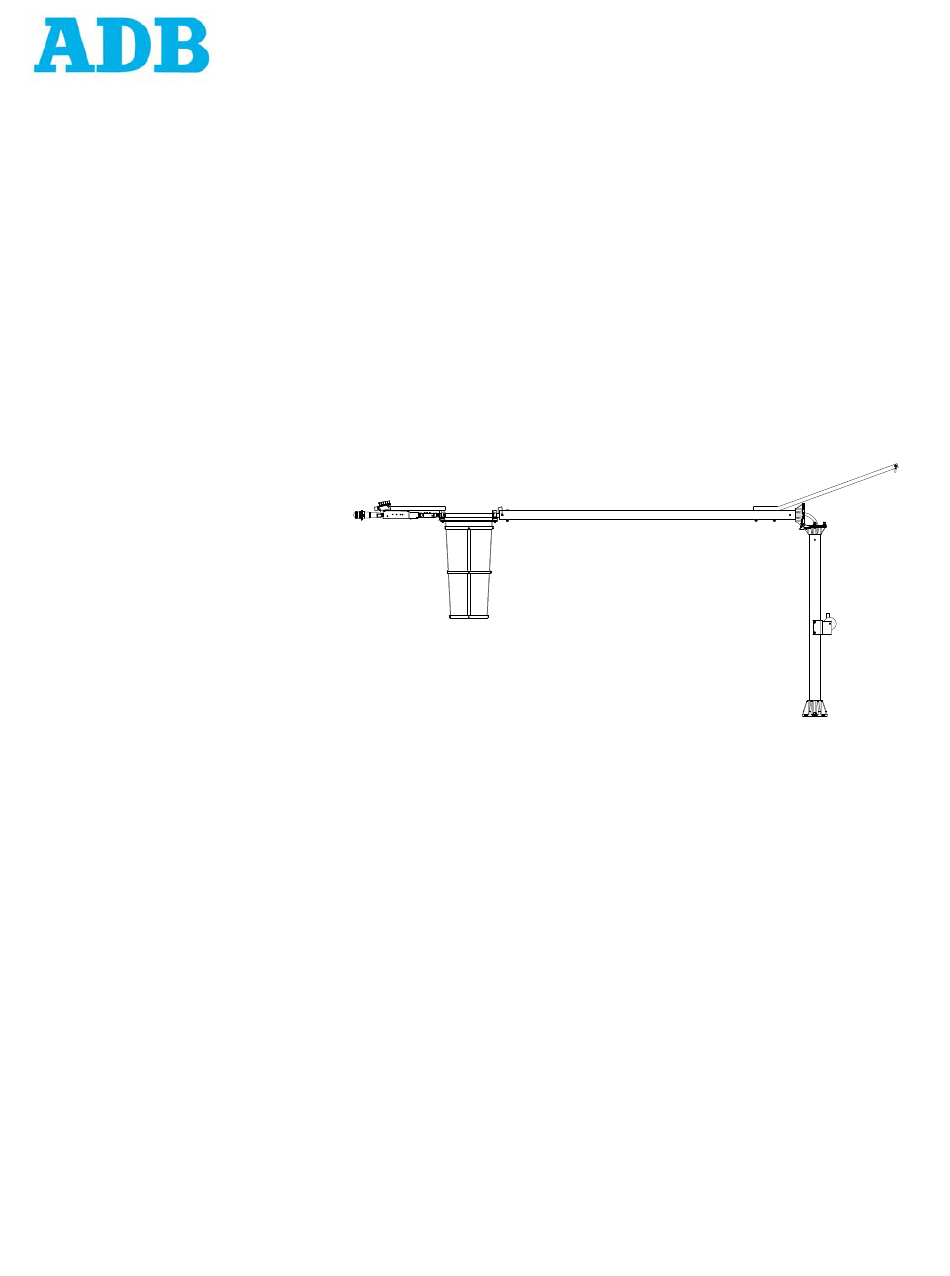

L-807 Wind Cone Hinged-pole Upgrade
Kit
Size 1 and 2 to bolted cage
Installation Manual
Document Number
ALN145, June 12, 2008,
Rev. A, 27 August 2009
ADB Airfield Solutions
P.O. Box 30829
977 Gahanna Parkway
Columbus, OH 43230
Copyright © 1998 ADB Airfield Solutions. All rights reserved
Tel. (614) 861-1304
Fax. (614) 864-2069
ADB Airfield Solutions
Advertisement
Table of Contents
Related Manuals for ADB L-807
Summary of Contents for ADB L-807
- Page 1 Installation Manual Document Number ALN145, June 12, 2008, Rev. A, 27 August 2009 ADB Airfield Solutions P.O. Box 30829 Tel. (614) 861-1304 977 Gahanna Parkway Fax. (614) 864-2069 Columbus, OH 43230 Copyright © 1998 ADB Airfield Solutions. All rights reserved...
-
Page 2: Table Of Contents
2.3.2 Assemble the Center-hinged Pole ........... 2-3 2.3.3 Raising the Wind Cone Assembly with New ADB Center-hinged Pole Kit ..... 2-4 2.3.4 Turn On Procedure . -
Page 3: Installing A Hinged-Pole Kit
Pole is the same as the Bottom-hinged Windcone pole 44A6878/ X Hinged-pole Kit 1 = For L-807 Internal and External Lit With SBOL 2 = For L-807 Unlit Without SBOL 96A0345, Rev. H 13 October 2009 L-807 Wind Cone and ICAO L-807, Installation Manual... -
Page 4: General Instructions
44A6878/ X 66A0026-29 BOTTOM TUBE WELD ASSEMBLY 3/8 SPLIT LOCKWASHER 1 = FOR L-807 INT/EXT LIT AND/OR WITH SBOL 2 = FOR L-807 UNLIT AND WITHOUT SBOL 96A0345, Rev. H 13 October 2009 L-807 Wind Cone and ICAO L-807, Installation Manual... -
Page 5: Assemble The Center-Hinged Pole
Attach the Windcone Cage Assembly to the Pole. For the LED lighted units: Connect the Ground Strap from the top of the pole to the upper Windcone Cage Assembly. Connect the Power Leads as per the correct wiring diagram. See the L-807 Windcone and ICAO L-807 manual 96A0345. -
Page 6: Raising The Wind Cone Assembly With New Adb Center-Hinged Pole Kit
Turn on power to the wind cone and verify all Light Engine Assemblies illuminate. For series circuit powered applications, also verify the LED Light Engines illuminate in each of the CCR steps. Note: For additional information such as troubleshooting and parts information, download the L-806 or L-807 manual from our web site at www.ADB.siemens.com or contact your ADB sales representative for a copy of the manual. - Page 8 Columbus, Ohio 43230, USA 1-800-545-4157 manuals.us@adb-air.com www.adb-airfieldsolutions.com © 2009 ADB Airfield Solutions, LLC. All Rights Reserved. ADB is a registered trademark of ADB Airfield Solutions, LLC. Product names mentioned may be trademarks of their respective companies. Specifications are subject to change without notice.
