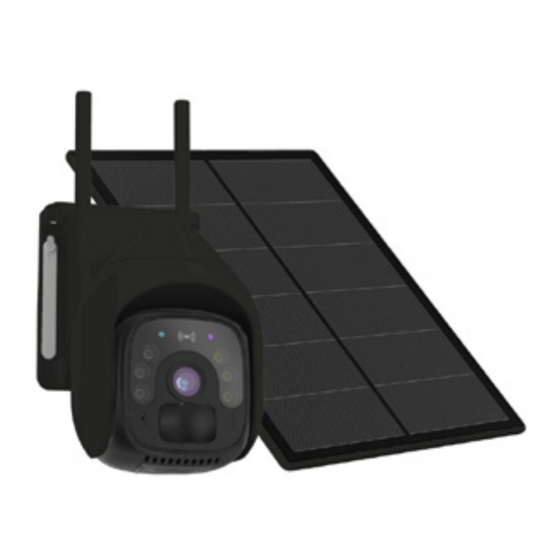

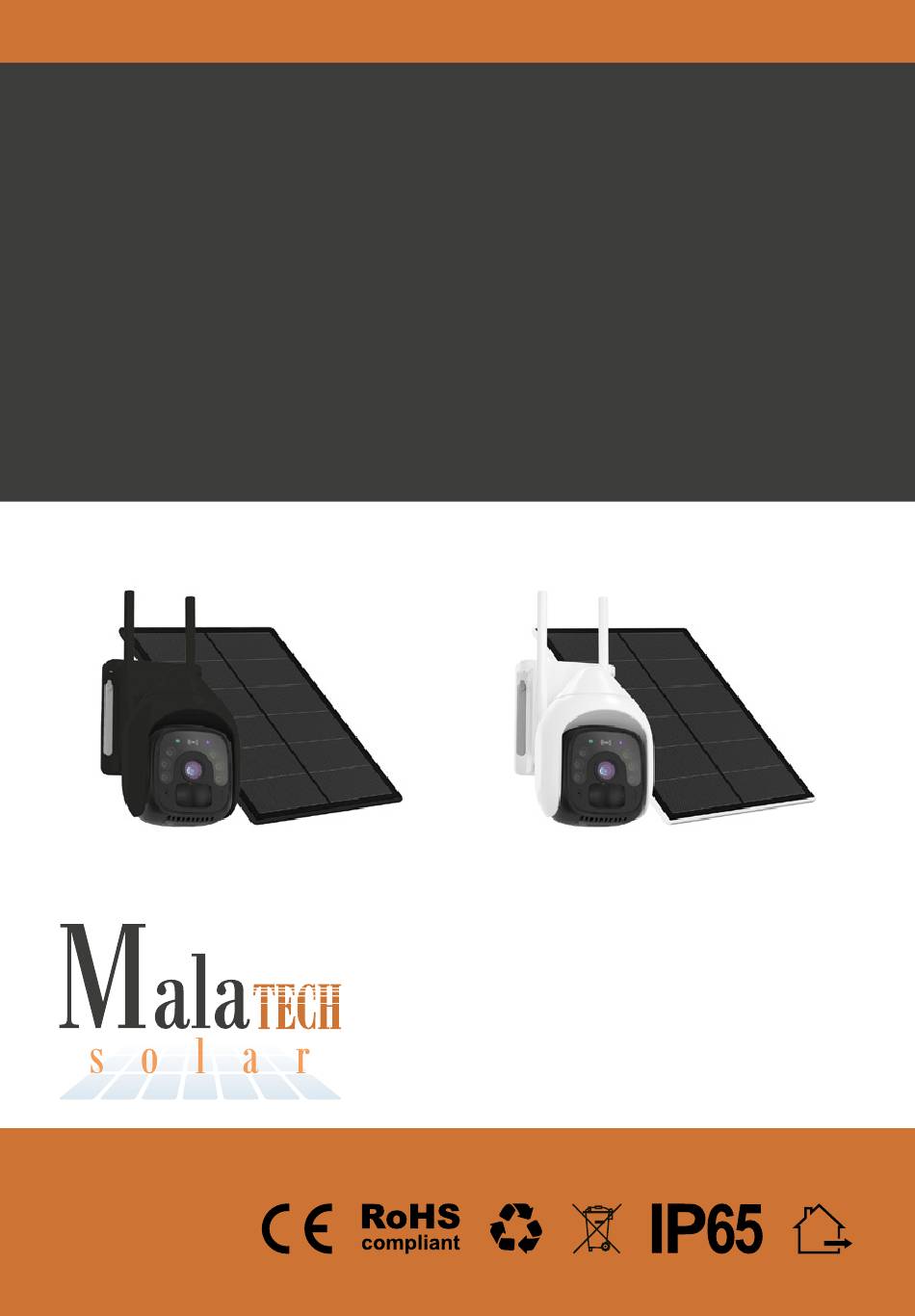

- Page 1 USER MANUAL NEPHRITE 4G 4G SOLAR SECURITY SMART CAMERA MANUFACTURER/IMPORTER: MALATECH WATER, LTD. 1/E Vanyi way, Alsonemedi, 2351 Hungary +36 30 377 8089 info@malatechsolar.com...
- Page 2 NEPHRITE 4G Operation system: Linux Online visitor number: Support 4 visitors at the same time Application: O-KAM Processor: Ingenic T31 ZL /T31 ZX Memory: 512 Mb Image sensor: GC2063,1/2.9 inch Progressive Scan CMOS 3MP 0.8 Lux/F1.4 (Color mode) ,0.3Lux/F1.4 (B&W...
- Page 3 NEPHRITE 4G Different device-alarm sounds can be set up for Smart alarm sound: different devices Default is sleep mode, camera wakes up when Sleep mode: motion sensor is triggered or it can be waken up by the app Optional: when battery charge drops below...
- Page 4 NEPHRITE 4G LIGHT STRUCTURE, CONTENT OF THE BOX ATTENTION! IF YOU INTEND TO CHANGE YOUR SMARTPHONE OR TABLET, PLEASE DO NOT FORGET TO REMOVE YOUR CAMERA(S) FROM THE APPLICATION ON YOUR OLD DEVICE/ PLEASE READ THIS MANUAL CAREFULLY, YOU FIND DETAILED DESCRIPTION ABOUT HOW TO REMOVE...
-
Page 5: Content Of The Box
NEPHRITE 4G LIGHT STRUCTURE, CONTENT OF THE BOX CONTENT OF THE BOX: Nephrite 4G camera - 1 pc Solar panel - 1 pc Solar panel console - 1 pc USB cable - 1 pc Screws and anchors - 1 package... -
Page 6: Basic Functions
NEPHRITE 4G FIRST USE - START-UP THE CAMERA INDICATOR LIGHT COLOR CODES: Reset: green and blue light flash simultaneously Charging: red indicator light shines continuously, and goes off when battery is full-charged No network connection: blue light flashes slowly Healthy operation: blue light shines continuously... -
Page 7: App Settings
NEPHRITE 4G APP SETTINGS DOWNLOADING THE APPLICATION: Please scan the QR code with your cell phone, and download O-KAM app, or search for the O-KAM app in App Store or Google Play, and download it to your cell phone. REGISTRATION IN THE APP: Tap “Register now”... -
Page 8: Add A Device
NEPHRITE 4G APP SETTINGS ADD A DEVICE: Tap “+Add” or the “+” icon in the top right corner of the screen. At the QR code scanning page tap the “4G camera” option. Insert a FAT32 formatted micro TF card correctly in the port. (Care! - Page 9 NEPHRITE 4G...
- Page 10 NEPHRITE 4G APP SETTINGS IF ANY ERROR OCCURS DURING THE PAIRING PROCESS: Please check whether the SIM card is inserted properly in its slot. Please check with your provider whether the SIM card is active, and recharged. Please apply a reset on the device, and try the pairing process again.
- Page 11 NEPHRITE 4G FUNCTIONS OF THE APP Real-time video screen functions Cloud service Settings HD/FD switch Monitor Communication PTZ (adjusting the camera head remotely) Show more/less functions Night mode setup Siren alarm activation White light switch Taking photo Recording Motion sensor...
-
Page 12: Night Vision Settings
NEPHRITE 4G FUNCTIONS OF THE APP NIGHT VISION SETTINGS: Constant black&white (IR) night mode Constant color night mode Smart night mode (default setting) DRAW AREA FOR MOTION SENSOR: • You can define the environment for sensing motion with this function, you are able to narrow or widen the sensing environment of the motion sensor. -
Page 13: Formatting The Tf Card
NEPHRITE 4G SETTINGS FORMATTING THE TF CARD: “System Settings” then tap “TF Record Settings”. • TF card must be formatted before first use, as well as in case of replacement. Non-formatted TF-cards, or TF cards with incompatible format will not be able to store recordings. -
Page 14: Record Settings
NEPHRITE 4G SETTINGS RECORD SETTINGS: “System Settings” then tap “Power mode”. • Sleep mode: Camera sleeps, it is awakened by triggering the motion sensor, or by the user through the app. • Smart sleep mode: Continuous recording above 40% battery charge level, below 40% battery charge level regular sleep mode. -
Page 15: Alarm Notification Settings
NEPHRITE 4G SETTINGS ALARM NOTIFICATION SETTINGS: “System Settings” then tap “Monitoring Function”. • Detection distance: Near / Medium / Far • Motion detection frequency: Frequent / General / Regular • Human shape detection: ON - active, OFF - inactive •... - Page 16 NEPHRITE 4G SETTINGS SHARING THE DEVICE: “System Settings” then tap “Share”. The camera, and its functions can be shared with other registered O-KAM users by scanning the QR code in O-KAM by the other user. The master user of the camera can provide access to various functions of the camera to other users, and also can ban them.
- Page 17 NEPHRITE 4G SETTINGS DELETING THE DEVICE: “System Settings” then tap “Device Settings”. IMPORTANT! If you intend to change your cell phone, please remove the camera from O-KAM on your previous phone. Then press and hold the Reset button on the camera for 5-10 seconds. After the reset is done you...
-
Page 18: Charging The Battery
NEPHRITE 4G SETTINGS CHARGING THE BATTERY: ATTENTION! Before first use charge the battery by grid power using the USB cable (5V DC). Charging may take 5-10 hours depending on the charge level of your battery. The indicator light is on when the battery is under charging. -
Page 19: Mounting The Camera
NEPHRITE 4G MOUNTING THE CAMERA Please only install your camera at its final location after you charged the battery completely, and you paired the device with your smartphone or tablet! Sign the locations of the holes on the chosen surface. - Page 20 NEPHRITE 4G USER INSTRUCTIONS, INFORMATION After receiving your camera, please open the camera’s box gently with paying attention not to cause harm to the camera and its parts. Before starting to use your camera, please make sure that there are no visible damages on the camera and its parts.
-
Page 21: Cleaning Instructions
NEPHRITE 4G CLEANING INSTRUCTIONS For preserving the aesthetical outlook, and maintaining the maximum functionality, and efficiency of your camera, cleaning is recommended from time to time. Since the camera can be charged by solar energy as well, keeping the solar panel clean & free of dust is key-essential to ensure its efficiency, and maximize discharging time. -
Page 22: Waste Disposal
Important information regarding the cameras distributed by Malatech Water, Ltd: • The Aluminium, steel, plastic (Acrylic, Polycarbonate) parts of the cameras do not cause environmental or health risk either in perfect or damaged condition of the camera. -
Page 23: Warranty Terms
For more information on electric, and electronic waste disposal locations, please visit www.electro-coord.hu, or www.malatechsolar.com. WARRANTY TERMS Malatech Water, Ltd. provides all-inclusive, attractive, customer- oriented warranty terms and services for its products during the warranty period for all of our customers in the following countries (by... - Page 24 NEPHRITE 4G period of your camera, please contact us by e-mail at service@ malatechsolar.com. Please always highlight your order no. in your e-mail, and send the scanned version of your invoice as an image or pdf file. In most cases our company accepts a detailed description with preferably a simple short video as a proof made by for example your cell phone about the issue.
- Page 25 NEPHRITE 4G Basic warranty terms: Warranty period / scope With the warranty, our company guarantees that the product does not have any material or workmanship defects at the time of the purchase. The warranty period varies between 1-3 years from the date of purchase depending on product.
- Page 26 Malatech Water, Ltd. 1/E Vanyi way, Alsonemedi, 2351 Hungary Customer service: +36 30 377 8089 info@malatechsolar.com www.malatechsolar.com Issue warranty claims: service@malatechsolar.com CE Confirmation: Malatech Water, Ltd. confirms that this camera meets with the competent EU directives, legislation, and harmonized acts.
