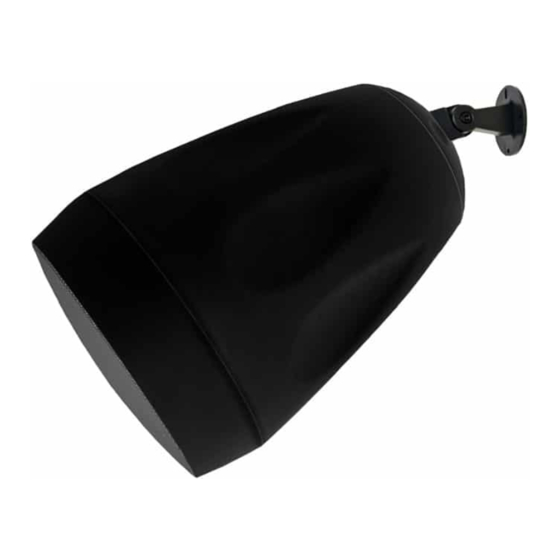

VL Audio MT-65 B User Manual

Multi-purpose pendant/wall/ground speaker

Hide thumbs Also See for MT-65 B:

Download this manual

MT-65 B/W

MULTI-PURPOSE PENDANT/WALL/GROUND SPEAKER

USER MANAUL

WWW.VL.CO.TH

Need help?

Do you have a question about the MT-65 B and is the answer not in the manual?

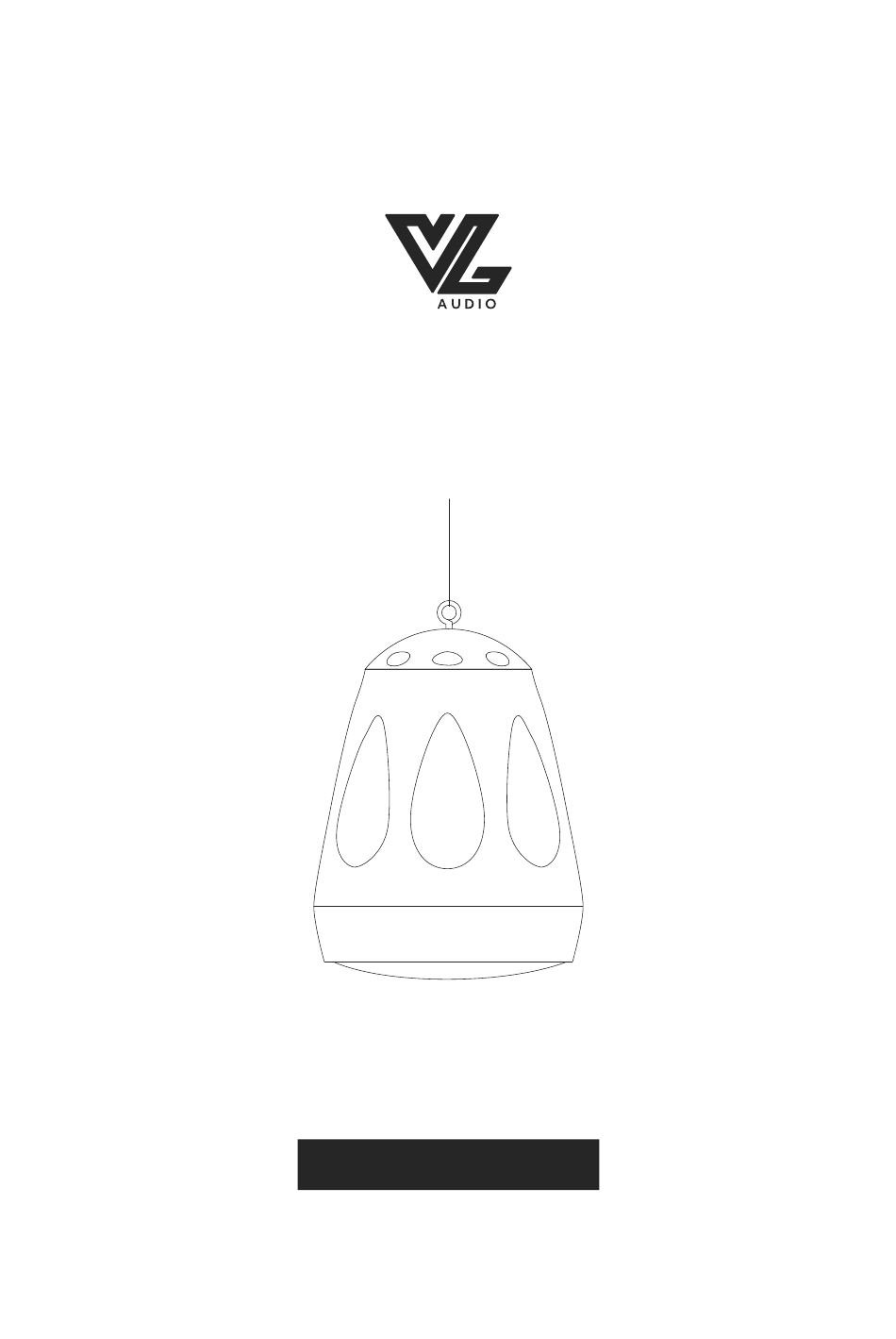

Page 1 MT-65 B/W MULTI-PURPOSE PENDANT/WALL/GROUND SPEAKER USER MANAUL WWW.VL.CO.TH...
Page 2 USER MANAUL...
Page 3 USER MANAUL...
Page 4 NOTE: For faster and easier installation use the available Gripple accessories. CEILING POLE HOOK HANGING CABLE CARABINER PENDANT SPEAKER WARNING Make sure the speaker is properly secured to the structure, and the structure can handle the total weight suspended on it. Failure to do so may cause damage or injuries.
Page 5 Can’t rotate this axis after install NOTE: The logo badge can be removed, from the grille, without damage. USER MANAUL...
Page 6 Product type Full-range pendant speaker (8Ω/100V) Frequency response (-6dB) 90Hz - 20kHz Nominal coverage 90° Conical RMS Power 80W(8Ω) Program power 8Ω Nominal impedance 85dB Sensitivity @1w/1m 104dB Maximum SPL calculated 5W, 10W, 20W, 40W Transformer taps 100V 2.5W, 5W, 10W, 20W Transformer taps 70V 6.5”...
