- Page 1 MULTI-PURPOSE PENDANT / WALL / GROUND SPEAKER...
- Page 2 PAGE 1...
- Page 3 PAGE 2...

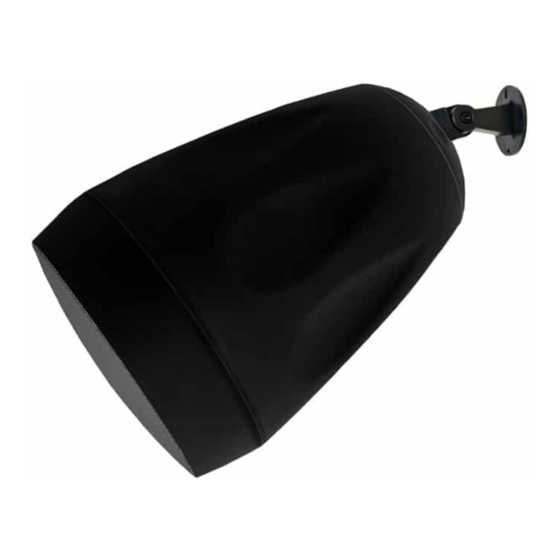

- Page 4 The MT-65 B/W offers versatility and performance,perfect for both residential and commercial audio applications, the MT-65 B/W provides a wide listening field with exceptional sound quality. Optimized design using a 6.5" polypropylene cone woofer that provides deep clear bass paired-up with a 1" silk dome tweeter that produces balanced, lifelike tone and musical reproduction.
- Page 5 PAGE 4...
- Page 6 PAGE 5...
- Page 7 CEILING POLE HOOK HANGING CABLE CARABINER WARNING Make sure the speaker is properly secured to the structure, PENDANT SPEAKER and the structure can handle the total weight suspended on it. Failure to do so may cause damage or injuries. PAGE 6...
- Page 8 NOTE: The logo badge can be removed, Can’t rotate this axis after install from the grille, without damage. PAGE 7...
- Page 9 PRODUCT TYPE FULL-RANGE PENDANT SPEAKER (8Ω/100V) FREQUENCY RESPONSE (-6dB) 90Hz - 20Hz NOMINAL COVERAGE 90° CONICAL RMS POWER PROGRAM POWER 80W (8Ω) NOMINAL IMPEDANCE 8Ω SENSITIVITY (1W, 1m) 85dB MAXIMUM SPL (CALCULATED) 104dB TRANSFORMER TAPS 100V 5W, 10W, 20W, 40W TRANSFORMER TAPS 70V 2.5W, 5W, 10W, 20W LF DRIVER...
- Page 10 DELIVERED THE ORIGINAL SOUND W W W.VL .CO .TH...
