Initiative Engineering STM40FF Quick Start Manual

INSTALLATION
1 Take a 25NB Rigid PVC Riser pipe, longer than the height of the vessel and solvent cement the
bo om distributor to one end of the pipe.
2 Insert this riser pipe into the vessel and cut the pipe from the top ensuring that the height of
the pipe (with the distributor touching the bo om) is 42mm more than the top of the vessel.
3 Pour RESIN into the vessel. Cover the mouth of the riser pipe while doing this so that resin
doesn't enter the pipe. Align the riser pipe so that it is in the centre of the vessel opening.
4 Screw on the top distributor to the bo om of the MPV.
5 Screw on the MPV to the vessel ensuring that the riser pipe goes through the top distributor
into the MPV.
NOTE: You can also fill the RESIN in the vessel first and also fill some water in it. Then follow
the procedure of cemen ng bo om distributor, cu ng correct length of riser pipe, fixing top
distributor to MPV and then pushing the riser pipe through the top distributor into the MPV.
Now this MPV with a ached riser pipe can be pushed into the vessel and screwed on the top.
6 Connect the suc on filter assembly to the ejector suc on nozzle a er fi ng a ¾" valve on
the suc on elbow of the MPV.
7 Put the suc on filter into the Brine tank ensuring that the suc on filter always remain
ver cal. You can cut the supplied tubing to the correct length so that the tubing always remain
taut and does not loop. Alterna vely the suc on filter can be inserted in a 3" PVC pipe (with
slot at the bo om) which is clamped to the Brine tank
8
Make the Inlet, Outlet and Drain connec ons.
OPERATION
1 Always press the handle down before turning the handle to the desired posi on viz. Service,
Regenera on or Rinse.
2 If the line pressure is more, It is advisable to close the inlet valve before turning handle.
3 Ensure that minimum 2kg/cm² pressure is available for ge ng op mum ejector
performance.
4 If there is a suc on problem even at 2kg/cm² then the ejector may be clogged with dirt etc.
For cleaning this, remove the ejector by unscrewing it from the MPV, clean and put back.
Sr. No. 273, Near Vitthal Mandir, Bhatewara Nagar,
Hinjawadi, Pune - 411 057, Maharashtra (India)
Tel.:+91 20 2293 2122, +91 20 2293 2123
E-MAIL:info@initiativeengineering.com
www.initiativeengineering.com
.

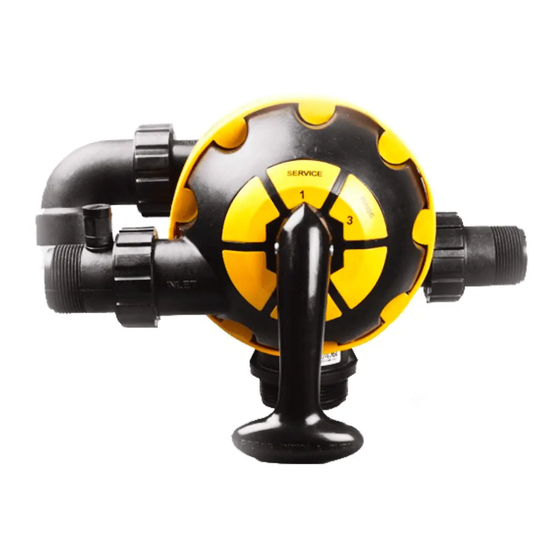

MULTIPORT VALVE STM40FF
SPECIFICATIONS
1. Inlet/Outlet/ Drain connec ons
2. Valve Threading for Vessel Moun ng
3. Flow Rate
Max. Opera ng Pressure
4.
5. Ejector Suc on at 2kg/ cm²
6. Ejector Ra o
7. Brine Line
SCOPE OF SUPPLY
1. Mul port valve
3. O & M Manual

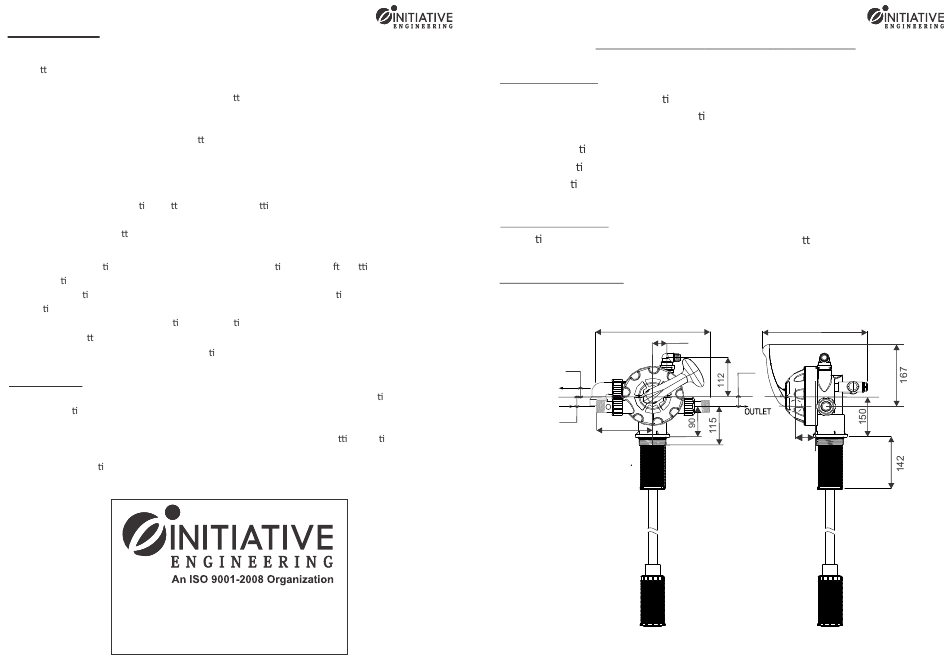

GENERAL ASSEMBLY
344
45
35
DRAIN
INLET
35
175
FRONT VIEW
:
1.5" BSP
:
2.5" NPSM
:
6m³/hr @0.5kg/ cm²
:
5kg/ cm²
:
750Lph
:
1:1
:
3/4" BSP
2. Top and Bo om Distributor
307
35
37
SIDE VIEW
