Initiative Engineering F0525FF Quick Start Manual

INSTALLATION

1 Take a 25 NB Rigid PVC riser pipe, longer than the height of the vessel and
solvent cement the bo om distributor to one end of the pipe.
2 Insert this riser pipe into the vessel and cut the pipe from the top ensuring
that the height of the pipe(with the distributor touching the bo om) is
42mm more than the top of the vessel.
3 Pour gravel and then filter media into the vessel. Cover the mouth of the riser
pipe while doing this so that media doesn't enter the pipe. Align the riser
pipe so that it is in the centre of the vessel opening.
4 Screw on the top distributor to bo om of the MPV.
5 Screw on the MPV to the vessel ensuring that the riser pipe goes through the
top distributor into the MPV.
6 Make the inlet, Outlet and Drain connec ons.

OPERATION

1. Always press the handle down before turning the handle to the desired
position viz. Service, Backwash or Rinse.
2. If the line pressure is more , It is advisable to close the Inlet Valve before
turning handle.
Sr. No. 273, Near Vitthal Mandir, Bhatewara Nagar,
Hinjawadi, Pune - 411 057, Maharashtra (India)
Tel.:+91 20 2293 2122, +91 20 2293 2123
E-MAIL:info@initiativeengineering.com
www.initiativeengineering.com
MULTIPORT VALVE F0525FF

SPECIFICATIONS

1. Inlet/Outlet/Drain connec ons
2. Valve threading for Vessel Moun ng
3. Flow Rate
Max. Opera ng Pressure
4.

SCOPE OF SUPPLY

1.Mul port valve
3.O & M Manual

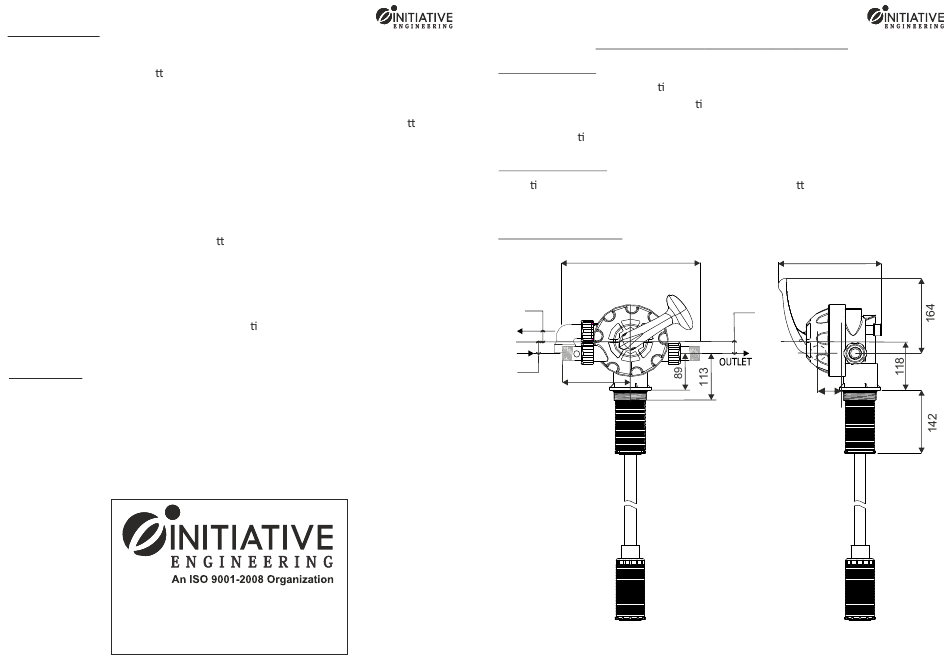

GENERAL ASSEMBLY

294
20
DRAIN
INLET
147
29
FRONT VIEW
:
1" BSP
:
2.5" NPSM
:
5m³/hr @0.35kg/ cm²
:
5kg/ cm²
2.Top and Bo om Distributors
240
29
25
SIDE VIEW
