Jameson 17-300R Quick Manual

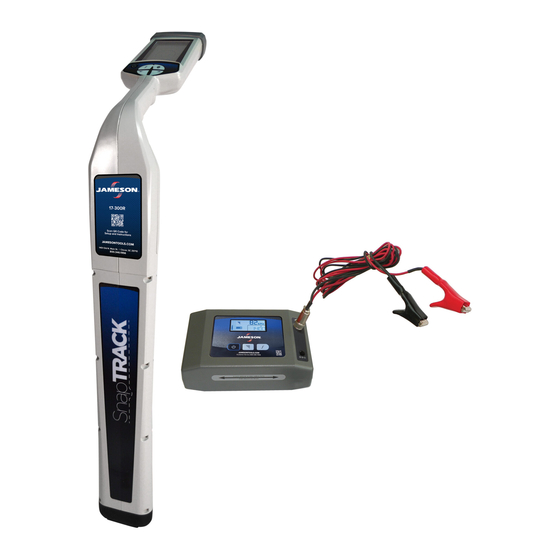

17-300R RECEIVER
QUICK GUIDE

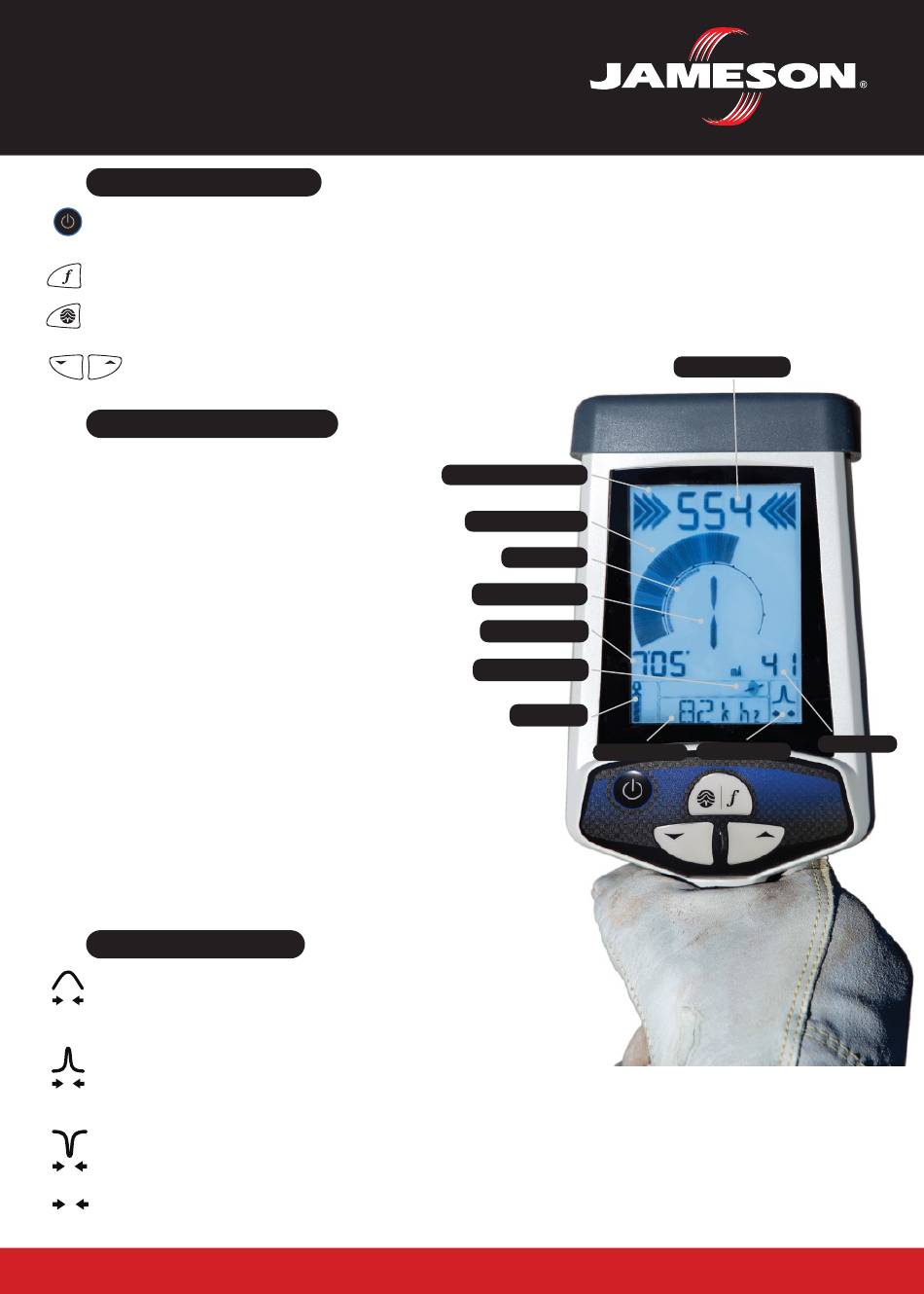

RECEIVER INTERFACE

Short press Button to turn unit ON or OFF
Long press ON/OFF(3 sec) to enter Program Mode and short press to exit
Short press the Frequency Key to scroll through the main menu
Short press the Mode Key to change(peak, null, auto, etc.,)
Press Gain Button up or down when applicable to
enter or exit selector's sub-menu

PROGRAM MENU ITEMS

Select volume setting; low, medium,
Vol
high and mute
Turn on or off backlight
Light
Select metric or imperial measurement
Units
Turn on or off line orientation indication
Orient
Turn on or off constant current measurement
Curnt
Turn on or off haptic feedback
Vibrtn
Turn on or off PathLINK transmitter radio link
P-Link
Select battery profile; li-ion or alkaline
batt
Select locate modes for use during normal
OpMode
operation; Peak, pinpoint peak, null, and sonde
Select available sonde frequencies for use during
Sonde
normal operation
Select available line locate frequencies for use
Line
during normal operation

LINE LOCATE MODE

Peak Highest signal strength directly over conductor with
gradual decline side to side. Receiver must be oriented
perpendicular to conductor.
Pinpoint Peak Highest signal strength directly over
conductor with sharp decline side to side. Receiver must
be oriented perpendicular to conductor.
Null Lowest signal strength directly over conductor with sharp increase side to side.
Receiver oriented not required.
Auto Left/Right Guidance Broken tone to left side of conductor with solid tone to
right side of conductor. Receiver must be oriented perpendicular to conductor.
800-346-1956 | JAMESONTOOLS.COM
LEFT/RIGHT GUIDANCE
SIGNAL BARGRAPH
GAIN LEVEL
LINE ORIENTATION
DEPTH ESTIMATE
OPERATION MODE
BATTERY
FREQUENCY
SIGNAL STRENGTH
CURRENT
LOCATE MODE
