Application Map

Application Map shows how much product has been applied
and where, using color to indicate level in proportion to preset
or automatically set maximum and minimum levels.
NOTE: Application Map and Target Rate Map cannot be selected
simultaneously.

On Screen Mapping

• Coverage Area – illustrates applied area:
◄ User Selected – applied areas show colored bars relative to
selected color range and map selection.

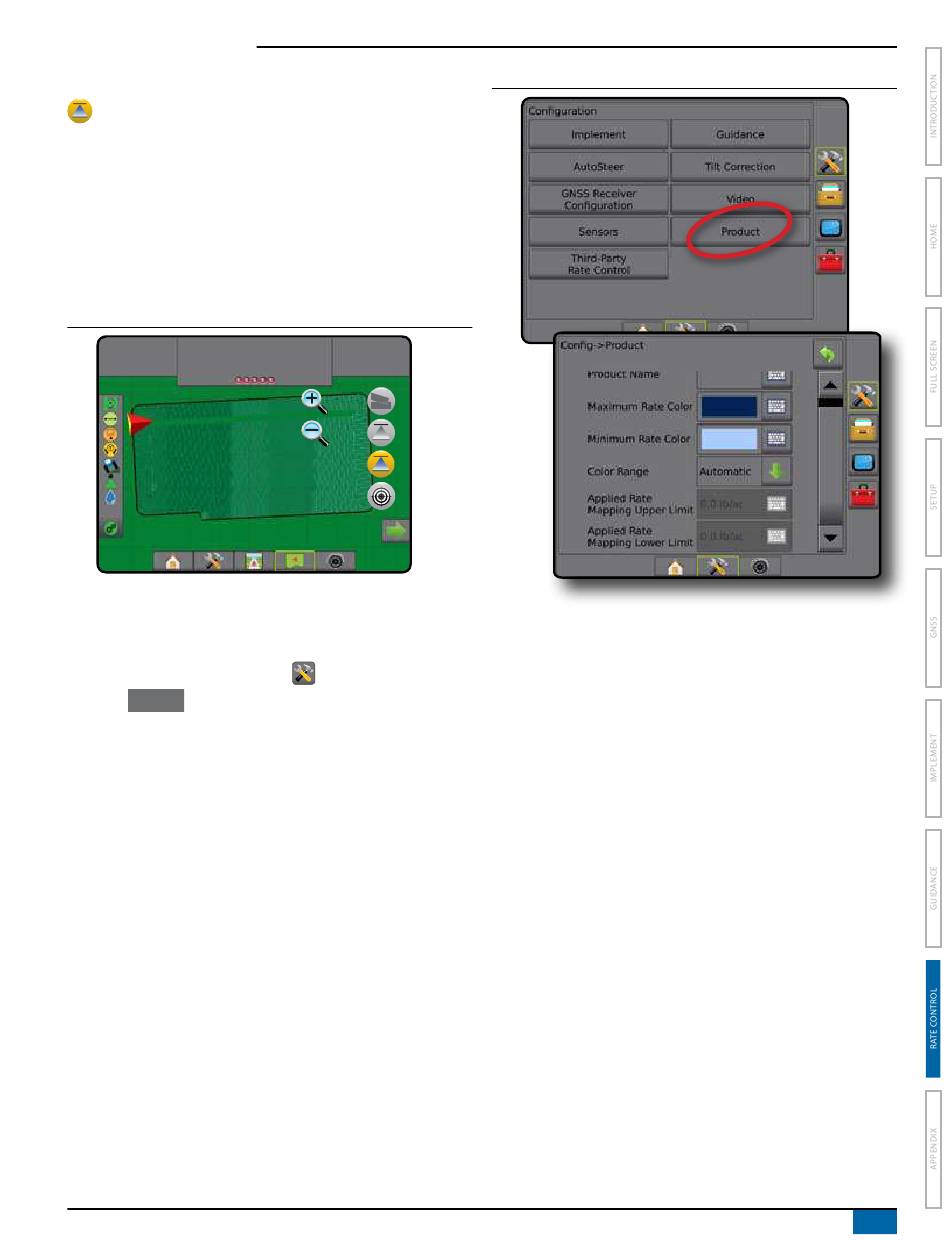

Figure 8-9: Application Map
27.00
Mark A
ac

Color Range Selection

Product options configure maximum/minimum rate limits and
corresponding display colors for mapping.
1. Press CONFIGURATION side tab
Product
2. Press .
3. Select:
►Color Range – mode used to set the rate for Maximum Rate
Color and Minimum Rate Color.
◄ Automatic – maximum and minimum will be determined by
actual applied rate values or target rate values
◄ Manual – maximum and minimum limits will be set to those
set in Applied Rate Mapping Upper Limit and Applied Rate
Mapping Lower Limit options
►Maximum Rate Color – used to set the color for the maximum
rate. When in Manual Color Range mode, this color will be
used for all rates above the Applied Rate Mapping Upper Limit
►Minimum Rate Color – used to set the color for the minimum
rate. When in Manual Color Range mode, this color will be
used for all rates below the Applied Rate Mapping Lower Limit
Matrix® Pro 570GS ● Matrix® Pro 840GS
Figure 8-10: Product Options
