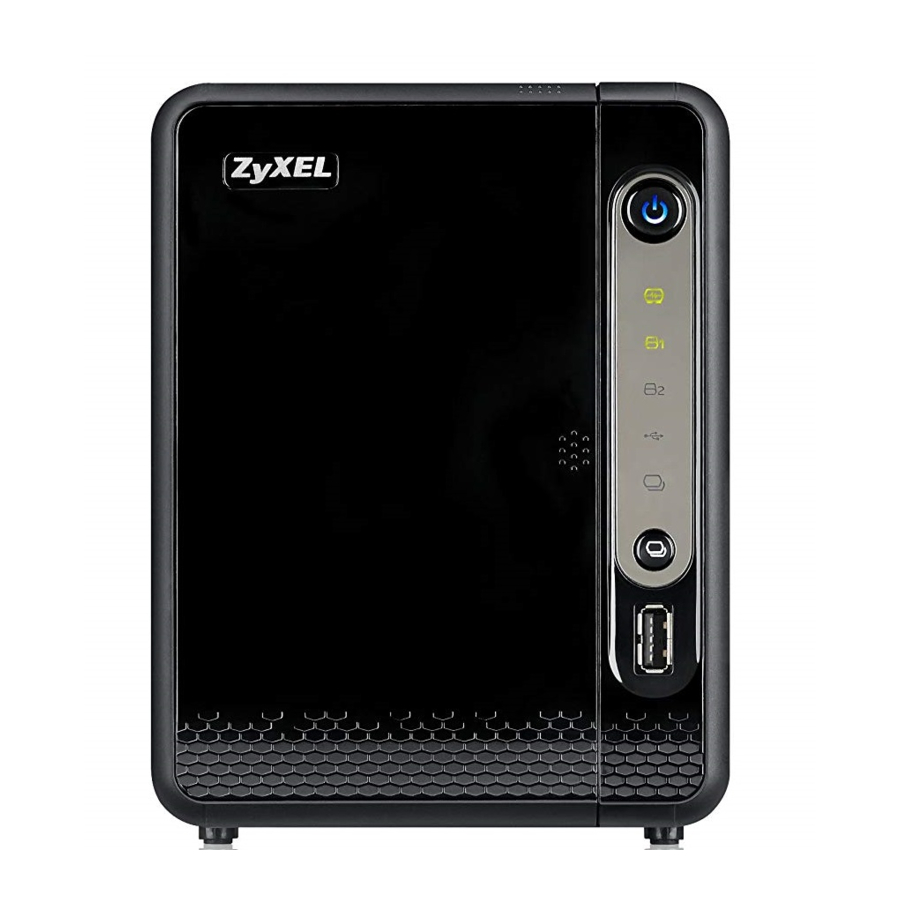

Zyxel NSA320S - Media Server Quick Start Guide

Instructions

1. Slide cover left (A) and pull forward (B) to remove.
2. Release tray latch (A) and pull out tray (B).
3. Attach hard drive to tray (A) using provided screws and install tray (B).
4. Place cover on front (A) and slide to close (B).
5. Use the included cable to connect your network storage to a router or switch LAN port on the same network as your computer. Plug in the power adapter. Press the power button and ensure that the network activity LED stays green after start up. The HDD LEDs should light green for detected hard drives.
6. On a computer on the same network as the network storage, insert the provided disc, open and double click on "setup.exe". Follow the installation screen instructions. Once installation is complete, run the installed utility and double click on "NSA320S". Run the initialization wizard.

Default username: admin
Default password: 1234 See the
User' s Guide on the included CD for details on con guring all features.
