Summary of Contents for Eonon E20

  • Page 2 User Manual...

  • Page 3: Table Of Contents

    Contents Precautions Wireless Android Auto Setup Steps Wired CarPlay Setup Steps Wireless CarPlay Setup Steps Product Overview 02-06 Setup Steps of Wired Autolink for Android Product Appearance Setup Steps of Wireless Autolink for Android Wiring Diagram Setup Steps of Wired Autolink for iPhone Accessories AirPlay Installation Method...

  • Page 4: Precautions

    If smoke, strange noises or unusual odors occur during normal use, or any other abnormal signs appear on the LCD screen, please turn off the power immediately and consult your dealer or Eonon customer service. Do not use this product in this condition because doing so may result in a fire, electric shock, or other failure.

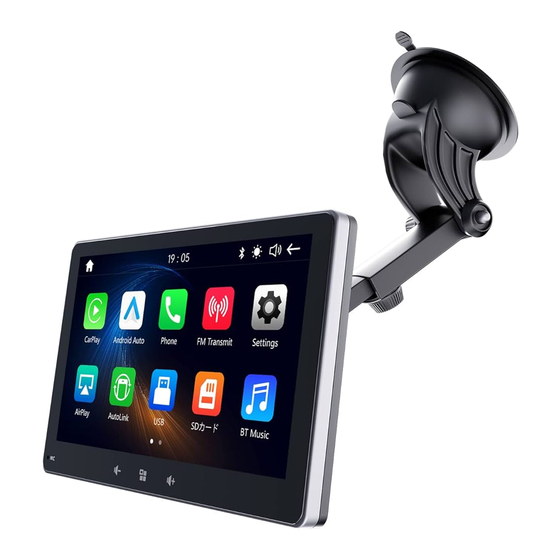

  • Page 5: Product Overview

    Product Appearance...
  • Page 6 1. MIC 4. Volume+ 7. USB Port 2. Volume- 5. Power Supply Input 8. Video Input for Backup Camera 3. Home 6. MicroSD Card Slot 9. AUX Output 10. Built-in Speaker...

  • Page 7: Wiring Diagram

    Wiring Diagram 1. Cigarette Lighter Power Cable 2. Backup Camera Video Input Cable 3. Backup Camera Control Wire 4. AUX Adapter Cable...

  • Page 8: Accessories

    Accessories Suction Cup Holder *1 Cigarette Lighter Power Cable *1 AUX Adapter Cable *1 Backup Camera Video Input Cable *1 Suction Cup Mount Base *1 Sunshade Cover *1 E20J取扱説明書 User Manual *1 Adhesive Cable Clip *1...

  • Page 9: Installation Method

    Installation Method To install the unit to the windshield: 1. Install the suction cup holder. 2. Clean the windshield. 3. Remove the protective film from the 4. Push the suction cup against the suction cup. windshield, until it sticks to the windshield. 5.
  • Page 10 To install the unit on the center console: 1. Install the suction cup holder. 2. Stick the suction cup mount base to the 3. Clean the suction cup mount base. 4. Remove the protective film from the center console. suction cup. 5.
  • Page 11 To install the sunshade cover: Align the buckles of sunshade cover with the holes on the panel and insert it.

  • Page 12: Home Screen

    Home Screen...
  • Page 13 1. Tap to turn on CarPlay. 10. Tap to go back to the previous page. 2. Tap to turn on Android Auto. 11. Tap to turn on AirPlay. 3. Tap to access Bluetooth phone call. 12. Tap to access screen mirroring. 4.

  • Page 14: Bluetooth Phone Call/Music

    CAUTION：For your safety, please avoid talking on the phone as much as possible while driving. Connection method: Search for the device of the car stereo (Name: Eonon) through Bluetooth on your phone to connect it. (It will generate a random password.) Note：...
  • Page 15 1. Calling interface 3. Call history 5. Call date and time 7. Received calls 2. Bluetooth phonebook 4. Bluetooth settings 6. Dialed calls 8. Missed calls...
  • Page 16 1. End a call 2. Mute or unmute the microphone 3. Numeric keypad 4. Answer calls via car stereo /mobile phone...
  • Page 17 1. Currently connected Bluetooth device 2. Auto-answer calls on/off 3. Autoload phonebook on/off (Please make sure Bluetooth contact sharing is enabled on your phone.) 4. Bluetooth settings 5. To load the phonebook (Please make sure Bluetooth contact sharing is enabled on your phone.) 6.
  • Page 18 1. Previous 2. Play/Pause 3. Next 4. EQ settings 5. Currently playing track Note： • Resume playback is not supported as the music that Bluetooth device plays is not from the head unit. • Please avoid using your phone as much as possible when you’re playing music via Bluetooth.

  • Page 19: Usb/Sd

    USB/SD Music Playback Support audio formats like MP3, WMA, WAV, OGG, FLAC, etc. 1. View playlist 2. Enter a number of a song to play it 3. Previous 4. Play/Pause 5. Next 6. Switch among loop single/ loop all/loop playlist/shuffle loop 7.
  • Page 20 Video Playback Support video formats like AVI, MKV, RMVB, MPG, etc. Formats inlucuding MP41, MP42, MP43 are not supprted. 1. View playlist 2. Enter a number of a video to play it 3. Previous 4. Play/Pause 5. Next 6. Switch among loop single/ loop all/loop playlist/shuffle loop 7.
  • Page 21 Picture Support formats including JPG/BMP/PNG. 1. Restore the picture 2. Zoom in the picture 3. Previous 4. Play/Pause 5. Next 6. Zoom out the picture 7. Rotate the picture...

  • Page 22: Connections

    Connections 1. Android Auto Wired Android Auto setup steps: ① Go to the Play Store and download the Android Auto App on your phone (as shown below). ② Go to “Settings-->Smart phone--> Android Device” and select “Android Auto” on the car stereo.

  • Page 23: Wireless Android Auto Setup Steps

    ③ Connect the USB cable of your phone to the USB port of the unit. Note： Please make sure that your phone supports Google services and Android Auto. Wireless Android Auto setup steps: ① Go to the Play Store and download the Android Auto App on your phone (as shown below).
  • Page 24 ③ Turn on WiFi and Bluetooth of your iPhone. ④ Find Bluetooth of the head unit (Bluetooth name: Eonon) on your phone and connect to it. ⑤ You can access Android Auto after connecting to Bluetooth successfully.

  • Page 25: Wired Carplay Setup Steps

    2. CarPlay Wired CarPlay setup steps: ① Go to “Settings-->Smart phone-->Apple Device” and select “CarPlay” on the car stereo. ② Connect the USB cable of your iPhone to the USB port of the head unit.

  • Page 26: Wireless Carplay Setup Steps

    ① Go to “Settings-->Smart phone-->Wireless connection mode” and select “CarPlay/AirPlay and Android Auto” on the car stereo. ② Turn on WiFi and Bluetooth of your iPhone. ③ Find Bluetooth of the head unit (Bluetooth name: Eonon) on your phone and connect to it. ④ You can access CarPlay after connecting to Bluetooth successfully.

  • Page 27: Setup Steps Of Wired Autolink For Android

    3. Screen Mirroring Setup steps of wired Autolink for Android: ① Go to “Settings-->Smart phone--> Android Device” and select “Autolink” on the car stereo. ② Go to the Google Play and install the Autolink Pro app on your phone. ③ Connect the USB cable of your phone to the USB port of the head unit, and tap on your phone to grant permission of Autolink Pro app.

  • Page 28: Setup Steps Of Wireless Autolink For Android

    ① Go to “Settings-->Smart phone--> Wireless connection mode” and select “Autolink” on the car stereo. ② Go to the Google Play and install the Autolink Pro app on your phone. ③ Turn on the Autolink Pro app and search for the device (Name: Eonon) to connect it. Note：...

  • Page 29: Setup Steps Of Wired Autolink For Iphone

    Setup steps of wired Autolink for iPhone: ① Go to “Settings-->Smart phone--> Apple device” and select “iOSMirror” on the car stereo. ② Connect the USB cable of your phone to the USB port of the head unit, and tap on your phone to grant permission of Autolink Pro.

  • Page 30: Airplay

    ① Go to “Settings-->Smart phone-->Wireless connection mode” and select “CarPlay/Airplay and Android Auto” on the car stereo. ② Turn on WiFi and Bluetooth of your iPhone. ③ Find WiFi of the head unit (Name: Eonon; password: 88888888) and connect to it. ④ Select ‘Eonon-Airplay’ in AirPlay of iPhone.

  • Page 31: Fm Transmit

    FM Transmit This function is to broadcast the audio files on the unit to your car radio via FM transmit. Setup Steps: 1. Turn on FM transmit and select the frequency. 2. Turn on the FM radio of your car radio and tune into the same frequency. Quick reference: ①...

  • Page 32: Settings

    Settings General settings Language: To change the language. System verson: To view the system version. SDK version: To view the SDK version. GPL version: To view the GPL version. Smart phone To set the functions connected through the phone. WiFi To view the WiFi name and password.
  • Page 33 Bluetooth To access Bluetooth settings and view the Bluetooth name and paired phone devices. Display To change the parameters of the display. Sound effect Audio settings. Reversing setting To set up the reverse camera guidelines, rear camera mirror and mute function.

  • Page 34: Parameters

    Specifications Operating Voltage DC12V-24V Maximum Operating Current ≤1A Operating Temp -20℃+ 60℃ Storage Temp -30℃+ 70℃ Operating Humidity 45% - 80%(Relative humidity) Storage Humidity 39% - 80%(Relative humidity)

  • Page 35: Faq

    Blank screen/Can’t power on Please check if the power cable is well-connected. Bluetooth is connected but not working It should be that the phone turns on Android Auto/CarPlay automatically after connecting to Bluetooth. To use Bluetooth, please disconnect Android Auto/CarPlay on the phone and then turn on Bluetooth again. You can also go to the “Smart phone” setting and set the [Wireless connection mode] as [Autolink].
  • Page 36 CarPlay is not working 1. To use wired CarPlay, please use the original data cable and connect it to the USB port of the head unit. 2. To use wireless CarPlay, please turn on WiFi and Bluetooth of your iPhone and connect your phone’s Bluetooth to the head unit’s Bluetooth.
