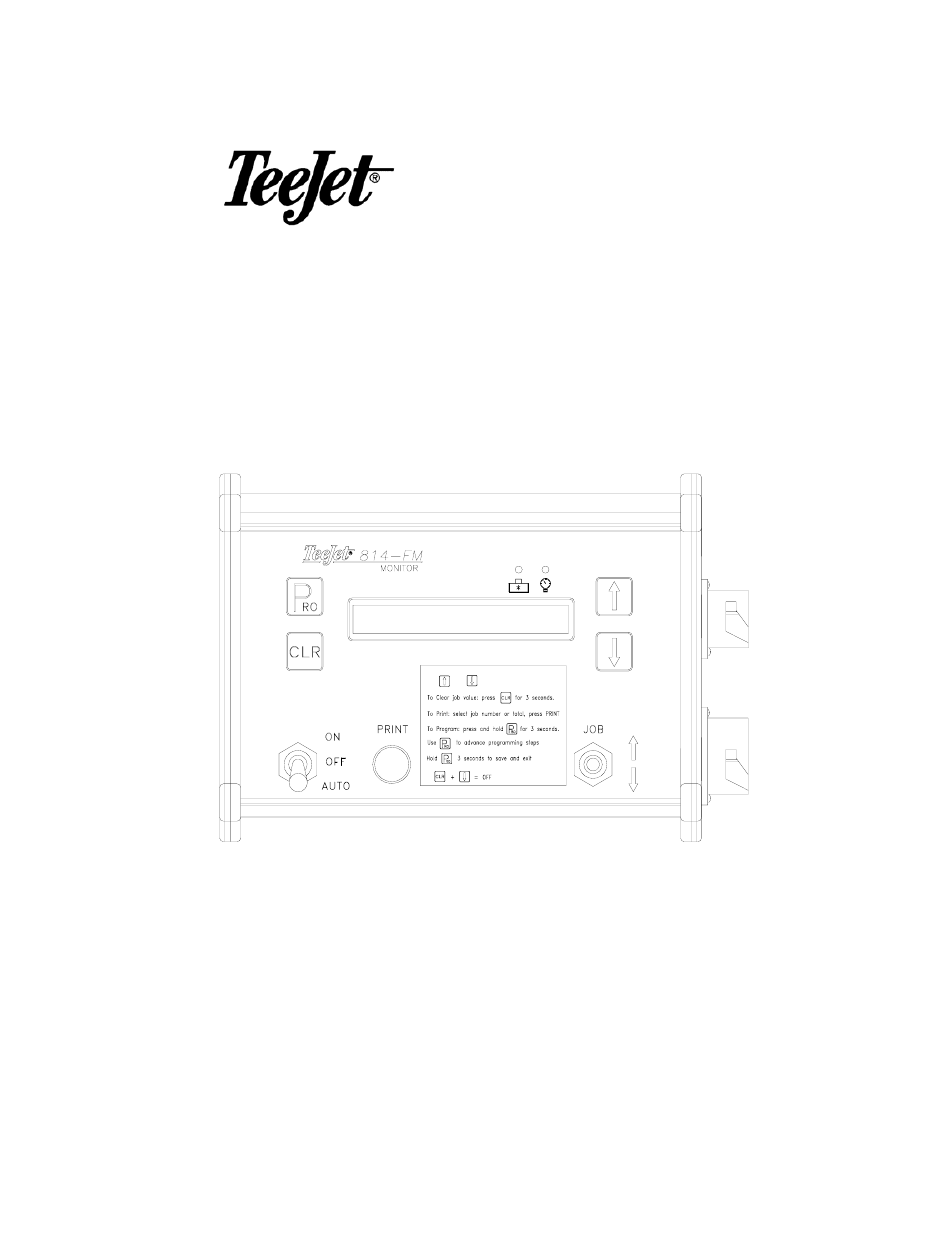

- Page 1 814-FM Monitor Programming and Operating Manual (2.00) 98-70014-R0 MI814-FM Programming and Operating Manual, 03/2000 1 of 17...
-
Page 2: Table Of Contents
OLUME .....................................7 ..................................8 RESSURE .....................................8 OTAL OLUME .....................................9 UTOMATIC ILLING PROGRAMMING GUIDELINES ...............................10 ............................10 MPORTANT RELIMINARY NFORMATION PROGRAMMING THE 814-FM SPRAYER CONTROL SYSTEM ....................11 ........................................11 NITS ..................................11 ETER ULSES Manual Entry....................................11 Automatic Calibration..................................12 ........................13 RESSURE RANSDUCER RESSURE ALIBRATION )..........................14 RESSURE... -
Page 3: Installation
Installation The TeeJet 814-FM monitor is powered by +12VDC. The fused power lead (brown wire) should go to the positive terminal of the battery. The blue or white wire to the negative or ground terminal of the battery. The flow meter should be plumbed so that all liquid passing through it is intended to be measured. -
Page 4: Pump Cut - Off Instructions
UMP CUT OFF INSTRUCTIONS While the 814-FM is capable of switching an auto fill valve, it can also switch an electric transfer pump. The 814-FM is limited to switching 1.8 amps directly. If the pump requires a higher current to activate, a relay must be used to isolate/protect the 814-FM. -
Page 5: Powering Console On/Off
To power the 814- FM on press the key once. Initially the console will display 814-FM V 2.00A the software version of the console in the display for approximately 2 seconds. This information will be needed when calling for support. -
Page 6: Overview Of Monitor Displays
Overview of Monitor Displays • keys are used for scrolling through the list of display information or for changing values when a value is flashing. • Holding the key for 3 seconds is used to clear a job volume memory (only one job or all job memories when the total counter is displayed). -
Page 7: Displays
Displays OLUME 814-FM In this display the console will show the total accumulated volume for the job MONITOR number selected. To change to a new job selection use JOB 3 150.0 GAL the job selection switch. Pushing up on the job switch will increase the job number, down will decrease the job number. -
Page 8: Pressure / Flow Rate
RESSURE This display shows the current pressure and flow rate in GPM (LPM). 814-FM MONITOR The flow rate and pressure will be displayed any time flow is going through the flow meter and pressure is acting on the pressure transducer, regardless of the 45 PSI 75.0 GPM... -
Page 9: Automatic Filling
To use the automatic filling feature the console must first be programmed for this function. Refer to the “Fill Valve” step in the programming section of this manual. This step should be set to “YES”. To begin auto filling, first select the job 814-FM number you would like to use with the MONITOR Job Selection switch. -
Page 10: Programming Guidelines
Programming Guidelines Make sure that all hardware components are properly installed and tested. Before you start the programming process you should first be sure that the console and all sensors are working properly. MPORTANT RELIMINARY NFORMATION Before you begin, it is recommended that you review the following Programming Guidelines that control the programming process: To enter the program mode press and hold the key for 3 seconds. -
Page 11: Programming The 814-Fm Sprayer Control System
Programming the 814-FM Sprayer Control System To enter the Program Mode, press and hold the key for 3 seconds. The first programming step should appear on the display. NITS 814-FM In this step you indicate if you will MONITOR be using US units (GPM, GAL, PSI) or SI Standard International units (l/min, L, bar). -
Page 12: Automatic Calibration
Automatic Calibration To complete an automatic calibration 814-FM of the flow meter, press the keys simultaneously. This will clear MONITOR the existing value and initiate the calibration procedure. Start auto cal “Start auto cal” will be displayed in the screen. This indicates that the controller is ready to begin the calibration process. -
Page 13: Pressure Transducer Low Pressure Calibration
“0” pressure setting of the 814-FM pressure transducer installed in MONITOR your system (if used). The pressure transducer used with the 814-FM is a current type transducer and uses a 4-20 mA >4.0 mA 0 Psi reading. 4.0 mA represents 0 pressure. -
Page 14: Pressure Transducer Maximum Rating (Phi )
ALVE The 814-FM is capable of 814-FM automatically shutting off an electric MONITOR valve or a pump motor. An optional valve is available with the kit. -
Page 15: Date /Time
After you have completed the adjustments to the date and time, press the key to advance to the beginning of the programming steps. The 814-FM has now been program ed. To save all the steps and exit the program mode, press and hold the key for 3 seconds. -
Page 16: Printing
Printing The 814-FM is capable of printing two reports, an individual Job Report and a Total Report. EPORT Job Report JOB 2: 50.3 GAL To print an individual job report as shown on the right, DATE: 06/07/00 10:14 simply press the PRINT key while viewing the appropriate JOB NAME________________ job number in the Job Volume display. -
Page 17: Hidden Total Volume Counter
Hidden Total Volume Counter The 814-FM has an additional volume counter. This counter will continue to 814-FM accumulate volume even if the Total MONITOR Volume counter has been cleared or reset to 0. To access the Hidden Total Volume Counter the console must first be powered OFF (see Power On/Off section Vtot: 45653.7 GAL...
