15 ECSPI2_SS0
17 VDD_3V3
19 ECSPI1_MOSI
21 ECSPI1_MISO
23 ECSPI1_SCLK
25 GND
27 UART4-TXD
29 CAN2_RXD
31 GPIO5_IO04
33 GPIO5_IO03
35 I2C6_SCL
37 UART2-TXD
39 GND
As for the mapped functional definition of J2 40 pins on DEBIX I/O board, please refer to
DEBIX Model A Reduced GPIO Function List on website https://www.debix.io/.
Connection with DEBIX Model A

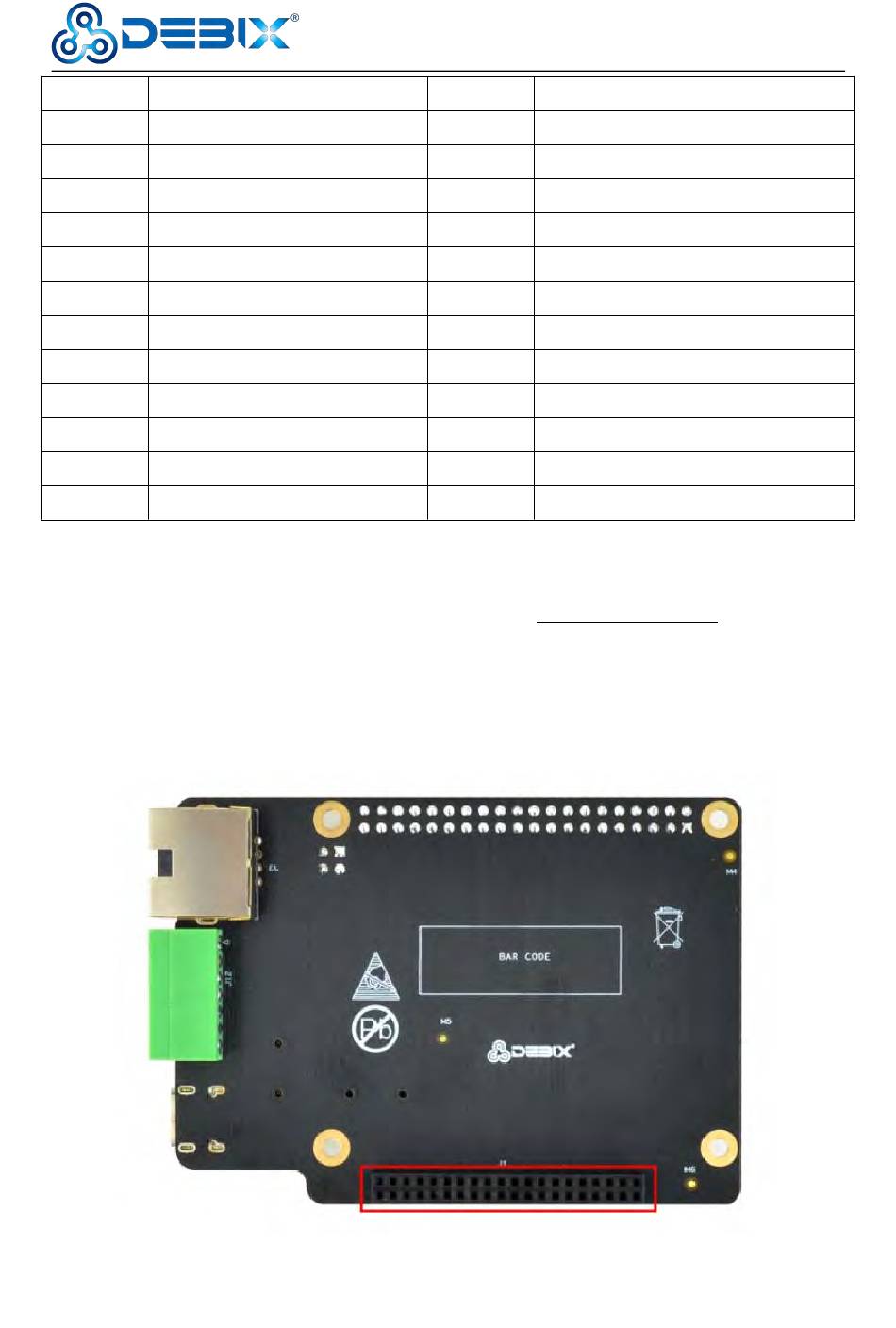

There is a group of I/O on the reverse side of I/O board, they are circled out with red line as
below:
www.debix.io
16 ECSPI2_MOSI
18 ECSPI2_MISO
20 GND
22 ECSPI2_SCLK
24 ECSPI1_SS0
26 GPIO1_IO11
28 UART4-RXD
30 GND
32 GPIO1_IO13
34 GND
36 UART2-RXD
38 GPIO3_IO21
40 CAN2_TXD
Figure 72
