- Page 1 USER MANUAL FOR AIB-2000 IO (INPUT-OUTPUT) BOX February 21 , 2023...
-
Page 2: Table Of Contents
10 AIB-2000 REMOTE CONTROLS ................17 11 AIB-2000 WEB INTERFACE ................. 18 11.1 Default Access Credentials ..................18 11.2 Resetting AIB-2000 to Default Factory Settings ............18 11.3 Accessing the Web Interface ..................19 11.4 About the AIB-2000 Web Interface ................19 Control Tab .........................19... - Page 3 TABLE OF CONTENTS Config → Signal routing ......................21 11.4.2.1 Config → IP config ........................23 11.4.2.2 Config → Misc. config ......................... 24 11.4.2.3 Sensors Info........................25 USER MANUAL FOR AIB-2000 IO (INPUT-OUTPUT) BOX - 2 - February 21 , 2023...
- Page 4 TABLE OF CONTENTS CONTACTS AND OFFICES Website Contact Us Worldwide Offices 24/7 Support USER MANUAL FOR AIB-2000 IO (INPUT-OUTPUT) BOX - 3 - February 21 , 2023...
-
Page 5: Dimensions
1. DIMENSIONS 1 DIMENSIONS Figure 1: Dimensions of AIB-2000 Unit USER MANUAL FOR AIB-2000 IO (INPUT-OUTPUT) BOX - 4 - February 21 , 2023... -
Page 6: Specifications
483 x 44 x 197 mm / 19” x 1.73” x 7.75” Dimensions (WxHxD) Net weight 2.6 kg Shipping Dimensions (WxHxD) 533 x 266 x 76 mm Shipping weight 3.7 kg Table 1 USER MANUAL FOR AIB-2000 IO (INPUT-OUTPUT) BOX - 5 - February 21 , 2023... -
Page 7: Front And Rear Panel Description
3. FRONT AND REAR PANEL DESCRIPTION 3 FRONT AND REAR PANEL DESCRIPTION Figure 2: Front and Rear Panels of AIB-2000 Front (Left + Right) NON-SYNC IN XLR MIC IN XLR Phantom +48V switch HPF 100 Hz switch MIC IN Gain knob... -
Page 8: Routing Diagram
4. ROUTING DIAGRAM 4 ROUTING DIAGRAM Figure 3: Routing Diagram for AIB-2000 USER MANUAL FOR AIB-2000 IO (INPUT-OUTPUT) BOX - 7 - February 21 , 2023... -
Page 9: Ethernet/ Aes3/ Analog Out Connection
5. ETHERNET/ AES3/ ANALOG OUT CONNECTION 5 ETHERNET/ AES3/ ANALOG OUT CONNECTION Analog outputs, balanced lines Analog outputs, unbalanced lines ETH port in AES3 in USER MANUAL FOR AIB-2000 IO (INPUT-OUTPUT) BOX - 8 - February 21 , 2023... -
Page 10: Safety Instructions
CONNECTIONS TO THE MAINS SHALL BE DONE ONLY BY AN ELECTROTECHNICALLY SKILLED PERSON ACCORDING TO THE NATIONAL REQUIREMENTS OF THE COUNTRIES WHERE THE UNIT IS SOLD. USER MANUAL FOR AIB-2000 IO (INPUT-OUTPUT) BOX - 9 - February 21 , 2023... - Page 11 INSTALLING OF THIS UNIT MUST BE PERFORMED ONLY BY QUALIFIED TRAINED PERSONNEL FOLLOWING APPLICABLE SAFETY RULES. DO NOT ALLOW INSTALLING OF THIS UNIT IF INSTALLATION HARDWARE IS BROKEN, BENT, PARTS ARE MISSING OR IS OTHERWISE DAMAGED. USER MANUAL FOR AIB-2000 IO (INPUT-OUTPUT) BOX - 10 - February 21 , 2023...
-
Page 12: Regulatory Information
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ▪ Consult the dealer or an experienced radio/TV technician for help. USER MANUAL FOR AIB-2000 IO (INPUT-OUTPUT) BOX - 11 - February 21... -
Page 13: Introduction To Aib-2000

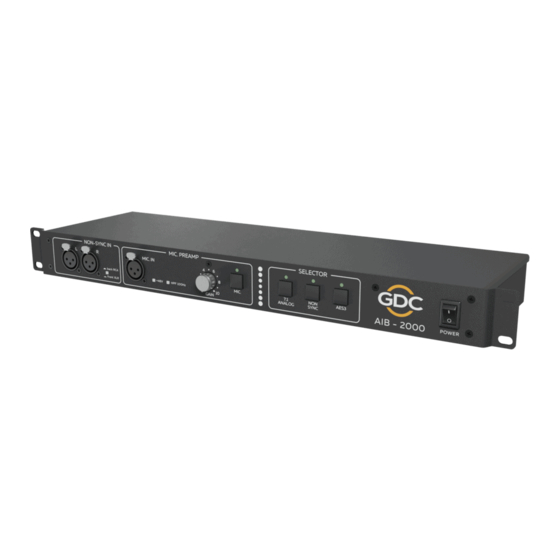

The AIB-2000 is a complementary input/output device compatible with most cinema power amplifiers. It provides functionality to connect additional signal sources, like satellite receivers, DVD-players and cable receivers and offers dedicated H/I, V/I and LCR outputs. AIB-2000 is easily controlled with media server automation commands. -
Page 14: Aib-2000 Connections
AIB-2000 CONNECTIONS 9.1 Installation The AIB-2000 is a 1U Rack device and most conveniently installed in the amplifier rack it connects to. NOTE: Instead of connecting the AIB-2000 to the power grid directly, it is recommended to plug the device’s mains connection to a UPS outlet. -
Page 15: Front Panel
7.1 ANALOG button chooses the input from analog 7.1. INPUT connectors on the back. ▪ NS RCA chooses rear NON-SYNC inputs. ▪ NS XLR chooses front NON-SYNC inputs. USER MANUAL FOR AIB-2000 IO (INPUT-OUTPUT) BOX - 14 - February 21 , 2023... -
Page 16: Rear Panel
Ethernet RJ-45 connector provides IP connection. It can be used to access built-in web-interface to set up the AIB-2000 or receive the control automation signals from the media server. Refer to Section 4 for the correct wiring of the Ethernet RJ-45 socket. -
Page 17: Input
Rear XLR NON-SYNC input can be routed to 7.1. output by selecting the NS RCA button at the SELECTOR section. USER MANUAL FOR AIB-2000 IO (INPUT-OUTPUT) BOX - 16 - February 21 , 2023... -
Page 18: Aib-2000 Remote Controls
MIC, setting MIC output to CENTER/SIDE SURROUND channels. The AIB-2000 can be controlled from the SR-1000 (with Audio Processing enabled) by choosing the default AIB-2000 device in the SR-1000 Automation settings. For more details, please refer to the ‘GDC SR-1000 User Manual’. -
Page 19: Aib-2000 Web Interface
IP and Submask, setting a password and monitoring device’s digital input state and internal temperature. AIB-2000 must be connected to a wired or a wireless network via the ETH port. The device used for accessing the web interface must be in the same network as the AIB-2000. -
Page 20: Accessing The Web Interface
Make sure your computer is in the same network as the AIB-2000 and has the same network mask. Open a web browser and enter the IP of the AIB-2000 in the Address bar. Enter the login credentials and click on the Sign In button. - Page 21 Allows the user to switch to Rear NON-SYNC RCA input [NON-SYNC XLR] Allows the user to switch to Front NON-SYNC XLR input [AES INPUT:] Displays the signal presence at the AES3 digital input. Table 3 USER MANUAL FOR AIB-2000 IO (INPUT-OUTPUT) BOX - 20 - February 21 , 2023...
-
Page 22: Config Tab
Figure 10: Signal routing (1) Sr. No. Name Function Description Allows the user to choose the input for the 7.1 output that is used when the AIB-2000 device boots up, which can be either of the following: ▪ [Default input:] 7.1 ANALOG, ▪ AES3, ▪... - Page 23 Center screen channel or Surround channels. Click on Save to apply the changes. Click on Cancel [Save / Cancel] discard the changes. Table 4 USER MANUAL FOR AIB-2000 IO (INPUT-OUTPUT) BOX - 22 - February 21 , 2023...
-
Page 24: Config → Ip Config
11. AIB-2000 WEB INTERFACE 11.4.2.2 Config → IP config The Misc config sub-tab allows the user to change the network settings for the AIB-2000. Figure 12: IP config Sr. No. Name Function Description [MAC:] Displays the MAC address of the AIB-2000 device. -
Page 25: Config → Misc. Config
11. AIB-2000 WEB INTERFACE 11.4.2.3 Config → Misc. config The Misc. config sub-tab allows the user to assign a custom name to the AIB-2000 and to change the user name and password used to access the device . Figure 13: Misc. config Sr. -
Page 26: Sensors Info
AIB-2000. These sensors provide information regarding nominal voltages of the power supplies and internal temperature of the device. - Page 27 Contact Us GDC Technology manufacturing facility is ISO 9001:2015 certified. Copyright © 2023 GDC Technology Limited. All rights reserved. All trademarks listed in this manual are properties of their respective owners. Specifications are subject to change without notice due to ongoing product development and improvement.
