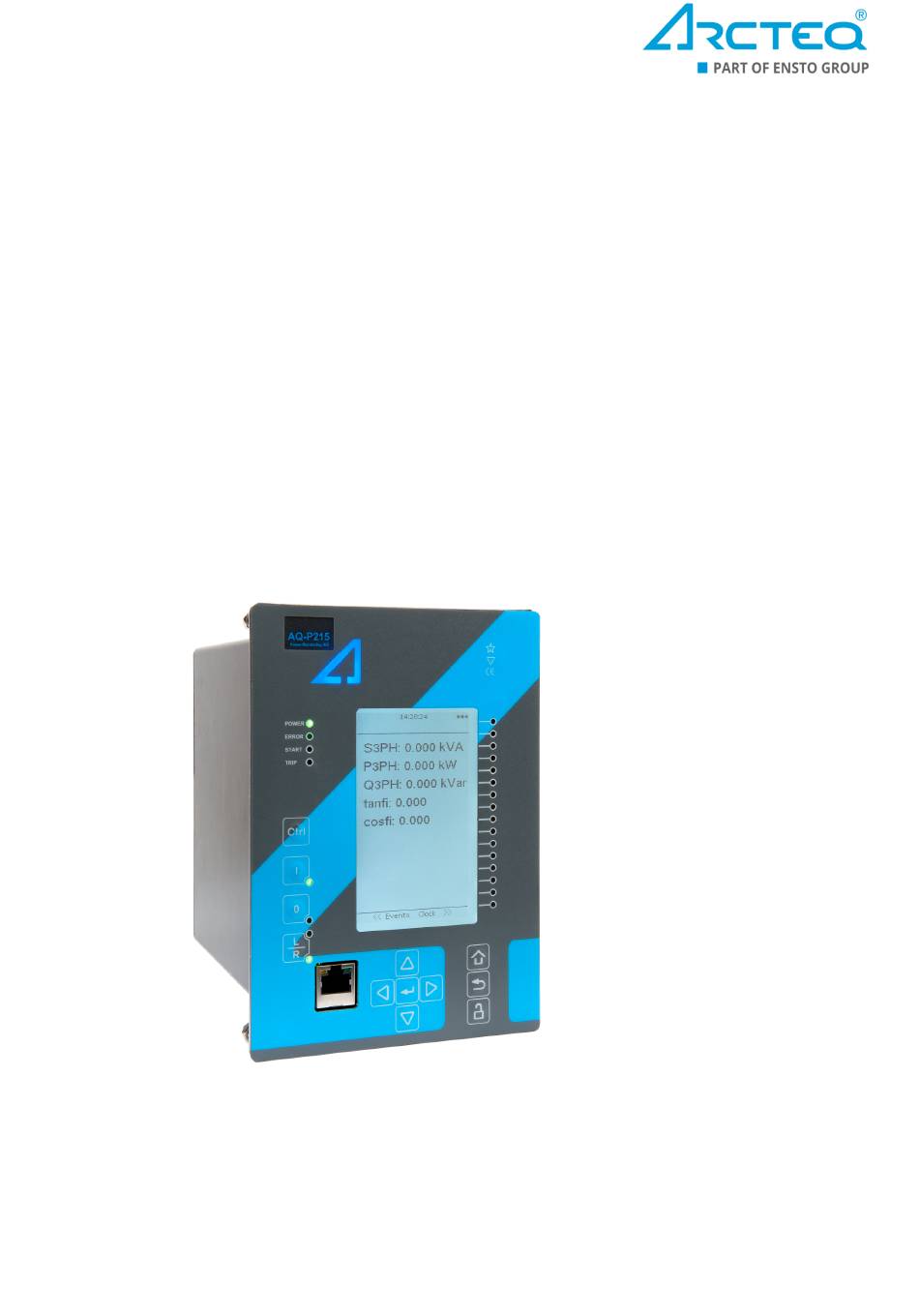

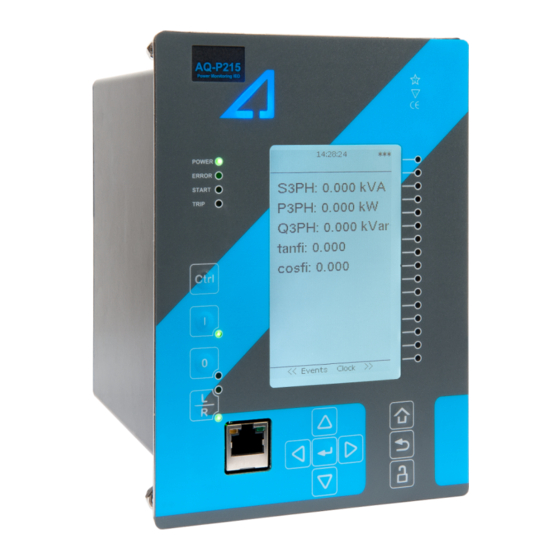

Page 1 AQ-P215 Power monitoring device Instruction manual...
Page 2: Table Of Contents
3.8 Configuring user levels and their passwords................. 45 4 Functions unctions ...................................................... 48 4.1 Functions included in AQ-P215.................... 48 4.2 Measurements........................49 4.2.1 Current measurement and scaling ................49 4.2.2 Voltage measurement and scaling ................64 4.2.3 Voltage memory ......................76 4.2.4 Power and energy calculation ..................
Page 3 6 Connections and applic 6 Connections and applica a tion examples tion examples..................................164 6.1 Connections of AQ-P215....................164 6.2 Application example and its connections................166 6.3 Two-phase, three-wire ARON input connection ..............167 7 Construction and installa 7 Construction and installation tion ....................
Page 4 A A Q Q -P215 -P215 Instruction manual Version: 2.09 10 Contact and r 10 Contact and re e f f er erence inf ence informa ormation tion....................................209 © Arcteq Relays Ltd IM00022...
Page 5 Nothing contained in this document shall increase the liability or extend the warranty obligations of the manufacturer Arcteq Relays Ltd. The manufacturer expressly disclaims any and all liability for any damages and/or losses caused due to a failure to comply with the instructions contained herein or caused by persons who do not fulfil the aforementioned requirements.
Page 6: Document Inf
- Order codes revised. - Added double ST 100 Mbps Ethernet communication module and Double RJ45 10/100 Mbps Ethernet communication module descriptions Revision 2.02 Date 7.7.2020 Changes - A number of image descriptions improved. Revision 2.03 Date 27.8.2020 © Arcteq Relays Ltd IM00022...
Page 7 - Improvements to many drawings and formula images. - Improved and updated device user interface display images. - AQ-P215 Functions included list Added: Voltage memory, running hour counter, programmable control switch and mA output control. - Changed disturbance recorder maximum digital channel amount from 32 to 95.
Page 8: Version 1 Revision Notes
Revision 2.09 Date 14.3.2023 - Updated the Arcteq logo on the cover page and refined the manual's visual look. - Added the "Safety information" chapter and changed the notes throughout the document accordingly. - Changed the "IED user interface" chapter's title to "Device user interface" and replaced all 'IED' terms with 'device' or 'unit'.
Page 9: Safety Information
Additionally, this document contains four (4) types of special messages to call the reader's attention to useful information as follows: NOTICE! TICE! "Notice" messages indicate relevant factors and conditions to the the concept discussed in the text, as well as to other relevant advice. © Arcteq Relays Ltd IM00022...
Page 10: Abbreviations
CT – Current transformer CTM – Current transformer module CTS – Current transformer supervision DG – Distributed generation DHCP – Dynamic Host Configuration Protocol DI – Digital input DO – Digital output DOL – Direct-on-line © Arcteq Relays Ltd IM00022...
Page 11 RTU – Remote terminal unit SCADA – Supervisory control and data acquisition SG – Setting group SOTF – Switch-on-to-fault SW – Software THD – Total harmonic distortion TRMS – True root mean square VT – Voltage transformer © Arcteq Relays Ltd IM00022...
Page 12 A A Q Q -P215 -P215 1 Document information Instruction manual 1.4 Abbreviations Version: 2.09 VTM – Voltage transformer module VTS – Voltage transformer supervision © Arcteq Relays Ltd IM00022...
Page 13: General
Version: 2.09 2 General The AQ-P215 power monitoring unit is a member of the AQ 200 product line. The hardware and software are modular: the hardware modules are assembled and configured according to the application's I/O requirements and the software determines the available functions. This manual describes the specific application of the AQ-P215 power monitoring unit.
Page 14: Device User Int Vice User Interface Erface
Home Home, the Back Back and the password activation buttons. 6. One (1) RJ-45 Ethernet port for device configuration. NOTICE! TICE! The object control buttons are not in use in AQ-P215. © Arcteq Relays Ltd IM00022...
Page 15: Mimic And Main Menu
Please note that the available quick display carousel view might be different if you have changed the view with AQtivate's Carousel Designer tool. Figure. 3.2.1 - 2. Basic navigation for AQ-P215. © Arcteq Relays Ltd IM00022...
Page 16: Navigation In The Main Configuration Menus
Home button switches between the quick display carousel and the main display with the six (6) main configuration menus. The AQ-P215 power monitoring device has the following six configuration menus: General, PMU functions , Control, Communication , Measurements and Monitoring . You can switch between these menus by using the four navigational arrow keys and confirming your selection with the E E nt nter er button in the middle.
Page 17 Table. 3.3 - 3. Parameters and indications in the General menu. Name Range Step Default Description Device name Unitname The file name uses these fields when loading the .aqs configuration file from the AQ-200 unit. Device location Unitlocation © Arcteq Relays Ltd IM00022...
Page 18 When a reset command is given, the 1: Reset parameter automatically returns back to "-". Enables the measurement recorder tool, further Measurement 0: Disabled 0: Disabled configured in Tools → Misc → Measurement recorder 1: Enabled recorder. © Arcteq Relays Ltd IM00022...
Page 19 "Fault registers" view in carousel. Function comments Function comments displays notes of each function that has been activated in the Protection, Control and Monitoring menu. Function notes can be edited by the user. Figure. 3.3 - 6. Function comments. © Arcteq Relays Ltd IM00022...
Page 20: Control Menu
In this submenu you can also activate and disable controllable objects. As with control functions, all objects are disabled by default. All activated objects can be viewed in the Objects submenu (see the section "Objects" below for more information). © Arcteq Relays Ltd IM00022...
Page 21 Setting group 1 (SG1) has the highest priority, while Setting group 8 (SG8) has the lowest priority. Setting groups can be controlled with pulses or with both pulses and static signals (see the image below). Figure. 3.4 - 10. Example of setting group (SG) changing. © Arcteq Relays Ltd IM00022...
Page 22 Controls → Controls enabled submenu. Each active object has four sections in their submenus: "Settings", "Application control" ("App contr"), "Registers" and "Events". These are described in further detail below. Figure. 3.4 - 12. Settings section. © Arcteq Relays Ltd IM00022...
Page 23 By default, the access level is set to "Configurator". • You can use digital inputs to control the object locally or remotely. Remote controlling via the bus is configured on the protocol level. © Arcteq Relays Ltd IM00022...
Page 24 Object blocking is done in the "Blocking input control" subsection. It can be done by any of the following: digital inputs, logical inputs or outputs, object status information as well as stage starts, trips or blocks. Figure. 3.4 - 14. Registers section. © Arcteq Relays Ltd IM00022...
Page 25 In the image series below, the user has activated three control functions. The user accesses the list of activated control stages through the "Control functions" module, and selects the control function for further inspection. Figure. 3.4 - 16. Control functions submenu. © Arcteq Relays Ltd IM00022...
Page 26 While the function is activated and disabled in the Control → Controls enabled submenu, you can disable the function through the "Info" section (the [function name] mode at the top of the section). Figure. 3.4 - 18. Settings section. © Arcteq Relays Ltd IM00022...
Page 27 Data included in the register depend on the control function. You can clear the the operation register by choosing "Clear registers" → "Clear". "General event register" stores the event generated by the stage. These general event registers cannot be cleared. © Arcteq Relays Ltd IM00022...
Page 28 "Blocking input control" allows you to block stages. The blocking can be done by using any of the following: • digital inputs. • logical inputs or outputs. • the START, TRIP or BLOCKED information of another protection stage. • object status information. © Arcteq Relays Ltd IM00022...
Page 29 Mimic Indicator", "Logic signals" and "GOOSE matrix". Please note that digital inputs, logic outputs, protection stage status signals (START, TRIP, BLOCKED, etc.) as well as object status signals can be connected to an output relay or to LEDs in the "Device I/O matrix" section. © Arcteq Relays Ltd IM00022...
Page 30 "Event masks" subsection you can determine which events are masked –and therefore recorded into the event history– and which are not. Figure. 3.4 - 24. Digital outputs section. All settings related to digital outputs can be found in the "Digital outputs" section. © Arcteq Relays Ltd IM00022...
Page 31 LED quick displays and the matrices. You can also modify the color of the LED ("LED color settings") between green and yellow; by default all LEDs are green. © Arcteq Relays Ltd IM00022...
Page 32 These signals can be used in a variety of situations, such as for controlling the logic program, for function blocking, etc. You can name each switch and set the access level to determine who can control the switch. © Arcteq Relays Ltd IM00022...
Page 33 Logical output signals can be used as the end result of a logic that has been built in the AQtivate 200 setting tool. The end result can then be connected to a digital output or a LED in the matrix, block functions and much more. © Arcteq Relays Ltd IM00022...
Page 34: Communication Menu
Communication → Connections submenu. As a standard, the devices support the following communication protocols: • NTP • IEC 61850 • Modbus/TCP • Modbus/RTU • IEC-103 • IEC -101/104 • SPA • DNP3 • ModbusIO. © Arcteq Relays Ltd IM00022...
Page 35 When communicating with a device via the front Ethernet port connection, the IP address is always 192.168.66.9. SERIAL COM1 & COM2 SERIAL COM1 & COM2 SERIAL COM1 and SERIAL COM2 are reserved for serial communication option cards. They have the same settings as the RS-485 port. © Arcteq Relays Ltd IM00022...
Page 36 • DNP3: supports both serial and Ethernet communication. • ModbusIO: used for connecting external devices like ADAM RTD measurement units. NOTICE! TICE! Please refer to the "Communication" chapter for a more detailed text on the various communication options. © Arcteq Relays Ltd IM00022...
Page 37: Measurement Menu
Transformers menu is used for setting up the measurement settings of available current transformer modules or voltage transformer modules. Some unit types have more than one CT or VT module. Some unit types like AQ-S214 do not have current or voltage transformers at all. © Arcteq Relays Ltd IM00022...
Page 38 U4 channel can be set to work as residual voltage mode or "SS" (system set) mode, which can be used for synchrochecking, synchronizing and other uses. © Arcteq Relays Ltd IM00022...
Page 39 Ref1, fRef2 and fRef3. With these parameters it is possible to set up three voltage or current channels to be used for frequency sampling. Parameter "f.meas in use" indicates which of the three channels are used for sampling if any. © Arcteq Relays Ltd IM00022...
Page 40 (IL1, IL2, IL3) as well as the two residual currents (I01, I02); each component can be displayed as absolute or percentage values, and as primary or secondary amperages or in per-unit values. © Arcteq Relays Ltd IM00022...
Page 41 • "Harmonics" displays harmonics up to the 31 harmonic for all four voltages (U1, U2, U3, U4); each component can be displayed as absolute or percentage values, and as primary or secondary voltages or in per-unit values. © Arcteq Relays Ltd IM00022...
Page 42 "Energy measurements" displays the three-phase energy as well as the energies of the individual phases. Impedance calculations Figure. 3.6 - 41. Impedance calculations submenu. © Arcteq Relays Ltd IM00022...
Page 43: Monitoring Menu
( Disturbance REC ) and accessing the device diagnostics ( Device diagnostics ). The available monitoring functions depend on the type of the device in use. Figure. 3.7 - 43. Monitoring menu view. © Arcteq Relays Ltd IM00022...
Page 44 Configuring monitor functions is very similar to configuring protection and control stages. They, too, have the five sections that display information ("Info"), set the parameters ("Settings"), show the inputs and outputs ("I/O") and present the events and registers ("Events" and "Registers"). © Arcteq Relays Ltd IM00022...
Page 45 • "Pretriggering time" can be selected between 0.1…15.0 s. • The device can record up to 20 (20) analog channels that can be selected from the twenty (20) available channels. Every measured current or voltage signal can be selected to be recorded. © Arcteq Relays Ltd IM00022...
Page 46: Configuring User Levels And Their Passwords
L L ock ock button in the device's HMI and set the desired passwords for the different user levels. NOTICE! TICE! Passwords can only be set locally in an HMI. © Arcteq Relays Ltd IM00022...
Page 47 As mentioned above, the access level of the different user levels is indicated by the number of stars. The required access level to change a parameter is indicated with a star (*) symbol if such is required. As a general rule the access levels are divided as follows: © Arcteq Relays Ltd IM00022...
Page 48 • Super user: Can change any setting and can operate breakers and other equipment. NOTICE! TICE! Any user level with a password automatically locks itself after half an hour (30 minutes) of inactivity. © Arcteq Relays Ltd IM00022...
Page 49: Functions Unctions
Instruction manual Version: 2.09 4 Functions 4.1 Functions included in AQ-P215 The AQ-P215 power monitoring device includes the following functions as well as the number of stages in those functions. Table. 4.1 - 4. Measurement functions of AQ-P215. Name Description...
Page 50: Measurements
Sum of imported and exported reactive inductive energy E+, E, Eq+, Eq- Energy measurements 1.-31.harm. Voltage and current harmonics up to 31 1.-31.harm. Table. 4.1 - 5. Protection, control and monitoring functions of AQ-P215. Name ANSI Description RTD alarms (Resistance temperature detector) (1...16) PGx>/<...
Page 51 For the measurements to be correct the user needs to ensure that the measurement signals are connected to the correct inputs, that the current direction is connected to the correct polarity, and that the scaling is set according to the nominal values of the current transformer. © Arcteq Relays Ltd IM00022...
Page 52 CT in Input I02: T in Input I02: L L oad ( oad (nominal): nominal): • CT primary: 100 A • I0CT primary: 10 A 36 A • CT secondary: 5 A • I0CT secondary: 1 A © Arcteq Relays Ltd IM00022...
Page 53 If the protected object's nominal current is chosen to be the basis for the per-unit scaling, the option "Object in p.u." is selected for the "Scale meas to In" setting (see the image below). Figure. 4.2.1 - 51. Setting the phase current transformer scalings to the protected object's nominal current. © Arcteq Relays Ltd IM00022...
Page 54 The first of the two images shows how the measurements are displayed when the CT primary values are the basis for the scaling; the second shows them when the protected object's nominal current is the basis for the scaling. © Arcteq Relays Ltd IM00022...
Page 55 Zero sequence CT scaling (ZCT scaling) is done when a zero sequence CT instead of a ring core CT is part of the measurement connection. In such a case the zero sequence CT should be connected to the I02 channel which has lower CT scaling ranges (see the image below). © Arcteq Relays Ltd IM00022...
Page 56 The measured current amplitude does not match one of the measured Check the wiring connections between the injection device or the CTs and the device. phases./ The calculated I0 is measured even though it should not. © Arcteq Relays Ltd IM00022...
Page 57 The following image presents the most common problems with phase polarity. Problems with phase polarity are easy to find because the vector diagram points towards the opposite polarity when a phase has been incorrectly connected. © Arcteq Relays Ltd IM00022...
Page 58 If two phases are mixed together, the network rotation always follows the pattern IL1-IL3-IL2 and the measured negative sequence current is therefore always 1.00 (in. p.u.). © Arcteq Relays Ltd IM00022...
Page 59 5 to connector 6, with the secondary currents' starpoint pointing towards the line. A feedback value; the calculated scaling factor that CT scaling is the ratio between the primary current and the factor P/S secondary current. © Arcteq Relays Ltd IM00022...
Page 60 9 to connector A feedback value; the calculated scaling factor that is the scaling ratio between the primary current and the secondary factor P/S current. Measurements The following measurements are available in the measured current channels. © Arcteq Relays Ltd IM00022...
Page 61 TRMS Sec") Table. 4.2.1 - 13. Phase angle measurements. Name Unit Range Step Description Phase angle The phase angle measurement from each of the three phase 0.00…360.00 0.01 ("Pha.angle current inputs. ILx") © Arcteq Relays Ltd IM00022...
Page 62 0.00…300.00 0.01 calculated current channel I0. ("Sec.calc.I0") Secondary residual The secondary TRMS current (inc. harmonics up to 31 current I0x TRMS 0.00…300.00 0.01 measurement from the secondary residual current channel (Res.curr.I0x TRMS I01 or I02. Sec") © Arcteq Relays Ltd IM00022...
Page 63 Secondary positive sequence current The secondary measurement from the calculated 0.00…300.00 0.01 ("Sec.Positive sequence positive sequence current. curr.") Secondary negative sequence current The secondary measurement from the calculated 0.00…300.00 0.01 ("Sec.Negative sequence negative sequence current. curr") © Arcteq Relays Ltd IM00022...
Page 64 Displays the selected harmonic from the current input ILx or 0.01 ...31 000.00 I0x. harmonic) Ixx Amplitude % 0.000...100.000 0.001 Amplitude ratio THD voltage. Recognized by IEC. Ixx Power THD % 0.000...100.000 0.001 Power ratio THD voltage. Recognized by the IEEE. © Arcteq Relays Ltd IM00022...
Page 65: Voltage Measurement And Scaling
VT ratings. In the figure below, three line-to-neutral voltages are connected along with the zero sequence voltage; therefore, the 3LN+U4 mode must be selected and the U4 channel must be set as U0. Other possible connections are presented later in this chapter. © Arcteq Relays Ltd IM00022...
Page 66 ( Protection → Voltage → [protection stage menu] → INFO ; see the image below). The number of available protection functions depends on the device type. Figure. 4.2.2 - 61. Selecting the measured magnitude. © Arcteq Relays Ltd IM00022...
Page 67 • 2LL+U3+U4 (two line-to-line voltages and the U3 and the U4 channels can be used for synchrochecking, zero sequence voltage, or for both) The 3LN+U0 is the most common voltage measurement mode. See below for example connections of voltage line-to-line measurement (3LL on the left, 2LL on the right). © Arcteq Relays Ltd IM00022...
Page 68 In the image below is an example of 2LL+U0+SS, that is, two line-to-line measurements with the zero sequence voltage and voltage from side 2 for Synchrocheck. Since U0 is available, line-to-neutral voltages can be calculated. Figure. 4.2.2 - 64. 2LL+U0+SS settings and connections. © Arcteq Relays Ltd IM00022...
Page 69 The measured voltage amplitude does not match one of the measured phases./ Check the wiring connections between the injection device or the VTs and the device. The calculated U0 is measured even though it should not. © Arcteq Relays Ltd IM00022...
Page 70 "U4 mode U0 or SS" has been set to 2: Open the "U0" mode. delta Voltage 0: Disabled Activates the voltage memory. The "Voltage memory" memory 1: Activated Disabled chapter describes the function in more detail. © Arcteq Relays Ltd IM00022...
Page 71 VT scaling A feedback value; the scaling factor for the primary factor p.u. Pri voltage's per-unit value. VT scaling A feedback value; the scaling factor for the factor p.u. Sec secondary voltage's per-unit value. © Arcteq Relays Ltd IM00022...
Page 72 The secondary RMS voltage measurement from each of the voltage Ux 0.00…500.00 0.01 voltage channels. ("Ux Volt sec") Secondary voltage Ux 0.00…500.00 0.01 The secondary TRMS voltage (inc. harmonics up to 31 TRMS measurement from each of the voltage channels. ("UxVolt TRMS sec") © Arcteq Relays Ltd IM00022...
Page 73 ("Pos.seq.Volt.sec") Secondary negative 0.00…4 The secondary measurement from the calculated sequence voltage 0.01 800.00 negative sequence voltage. ("Neg.seq.Volt.sec") Secondary zero sequence 0.00…4 The secondary measurement from the calculated zero voltage 0.01 800.00 sequence voltage. ("Zero.seq.Volt.sec") © Arcteq Relays Ltd IM00022...
Page 74 UL1 mag") System voltage magnitude 0.00…1 The primary RMS line-to-neutral UL2 voltage (measured or calculated). You 0.01 can also select the row where the unit for this is kV. ("System 000.00 volt UL2 mag") © Arcteq Relays Ltd IM00022...
Page 75 UL23 0.00…360.00 0.01 The primary line-to-line angle UL23 (measured or calculated). ("System volt UL23 ang") System voltage angle UL31 0.00…360.00 0.01 The primary line-to-line angle UL23 (measured or calculated). ("System volt UL31 ang") © Arcteq Relays Ltd IM00022...
Page 76 Defines how the harmonics are displayed: in p.u. values, as 1: Primary V display primary voltage values, or as secondary voltage values. 2: Secondary V Maximum 0.00…100 Displays the maximum harmonics value of the selected harmonics value 0.01 000.00 voltage input Ux. ("UxMaxH") © Arcteq Relays Ltd IM00022...
Page 77: Voltage Memory
2. At least one phase current must be above the set value for the "Measured current condition 3I>" parameter. This setting limit is optional. Figure. 4.2.3 - 67. Distance protection characteristics and directional overcurrent. © Arcteq Relays Ltd IM00022...
Page 78 Table. 4.2.3 - 35. Measurement inputs of the voltage memory function. Signal Description Time base IL1RMS RMS measurement of phase L1 (A) current IL2RMS RMS measurement of phase L2 (B) current IL3RMS RMS measurement of phase L3 (C) current RMS measurement of voltage U © Arcteq Relays Ltd IM00022...
Page 79 When the "Forced CT f tracking" parameter is activated and voltages are gone, the frequency from the selected current-based reference channel 3 (the current from IL3) is used for current sampling. This eliminates any possible measurement errors in the fixed frequency mode. Figure. 4.2.3 - 69. Frequency reference channels. © Arcteq Relays Ltd IM00022...
Page 80: Power And Energy Calculation
The following equations apply for power calculations with the line-to-neutral mode and the line- to-line voltage mode (with U0 connected and measured): © Arcteq Relays Ltd IM00022...
Page 81 The direction of reactive power is divided into four quadrants. Reactive power may be inductive or capacitive on both forward and reverse directions. Reactive power quadrant can be indicated with Tan (φ) (tangent phi), which is calculated according the following formula: © Arcteq Relays Ltd IM00022...
Page 82 (i.e. wiring errors, wrong measurement modes, faulty frequency settings, etc.). Settings Table. 4.2.4 - 37. Power and energy measurement settings Name Range Step Default Description 3ph active 0: Disabled Enables/disables the active energy energy 1: Enabled Disabled measurement. measurement © Arcteq Relays Ltd IM00022...
Page 83 Reset energy calculators Resets the memory of the indivisual phase 0: - (per phase) 0: - energy calculator. Goes automatically back to 1: Reset ("Reset E per the "-" state after the reset is finished. phase") © Arcteq Relays Ltd IM00022...
Page 84 Table. 4.2.4 - 40. Three-phase power calculations. Name Unit Range Step Description The total three-phase apparent power in kilo-volt- 3PH Apparent power (S) 0.01 -1x10 …1x10 ampere 3PH Active power (P) 0.01 The total three-phase active power in kilowatts -1x10 …1x10 © Arcteq Relays Ltd IM00022...
Page 85 0.01 The total amount of imported active energy. (kWh or MWh) 995 904.00 -999 999 995 Active Energy (P) Export/ The sum of imported and exported active 904.00…999 999 0.01 Import balance (kWh or MWh) energy. 995 904.00 © Arcteq Relays Ltd IM00022...
Page 86 The exported reactive energy of the phase while 0.01 -1x10 …1x10 (kVarh or MVarh) active energy is imported. Imported (Q) while Import (P) Lx The imported reactive energy of the phase while 0.01 -1x10 …1x10 (kVarh or MVarh) active energy is imported. © Arcteq Relays Ltd IM00022...
Page 87 L2 Tan an -0.83 L3 T L3 Tan an 0.11 3PH T H Tan an 0.00 L1 Cos L1 Cos 0.71 L2 Cos L2 Cos 0.77 L3 Cos L3 Cos 0.99 3PH Cos H Cos 0.87 © Arcteq Relays Ltd IM00022...
Page 88: Frequency Tracking And Scaling
The benefit of frequency tracking is that the measurements are within a pre-defined accuracy range even when the fundamental frequency of the power system changes. Frequency independent current and voltage measurement accuracy is achieved with algorithms specified in patent US 10,809,287. © Arcteq Relays Ltd IM00022...
Page 89 FFT calculation always has a whole power cycle in the buffer. The measurement accuracy is further improved by Arcteq's patented calibration algorithms that calibrate the analog channels against eight (8) system frequency points for both magnitude and angle.
Page 90 The second reference source for frequency 2: CT2IL2 1: CT1IL2 reference 2 tracking. 3: VT1U2 4: VT2U2 0: None 1: CT1IL3 Frequency 2: CT2IL3 1: CT1IL3 The third reference source for frequency tracking. reference 3 3: VT1U3 4: VT2U3 © Arcteq Relays Ltd IM00022...
Page 91 Alg f avg 0.000…75.000Hz 0.001Hz - tracked frequencies and U4 voltage channel samples. 0: One f measured System 1: Two f Displays the amount of frequencies that are measured measured measured. frequency 2: Three f measured © Arcteq Relays Ltd IM00022...
Page 92: General Menu
The order code identification of the unit. System phase rotating order at The selected system phase rotating order. Can be changed with parameter the moment "System phase rotating order". UTC time The UTC time value which the device's clock uses. © Arcteq Relays Ltd IM00022...
Page 93 When a reset command is given, the parameter 1: Reset automatically returns back to "-". 0: Disabled Enables the measurement recorder tool, further Measurement recorder 0: Disabled 1: Enabled configured in Tools → Misc → Measurement recorder. © Arcteq Relays Ltd IM00022...
Page 94: Protection Functions
(2) separate alarms from one selected input. The user can set alarms and measurements to be either in degrees Celsius or Fahrenheit. The following figure shows the principal structure of the resistance temperature detection function. © Arcteq Relays Ltd IM00022...
Page 95 5: Channel 4 the selected module. 6: Channel 5 7: Channel 6 8: Channel 7 0: Deg C Selects the measurement temperature S1...S16 Deg C/Dec F 0: Deg C 1: Deg F scale (Celsius or Fahrenheit). © Arcteq Relays Ltd IM00022...
Page 96 (16) independent stages; the events are segregated for each stage operation. The events triggered by the function are recorded with a time stamp and with process data values. The function registers its operation into the last twelve (12) time-stamped registers. © Arcteq Relays Ltd IM00022...
Page 97 S6 Alarm1 OFF RTD1 S6 Alarm2 ON RTD1 S6 Alarm2 OFF RTD1 S7 Alarm1 ON RTD1 S7 Alarm1 OFF RTD1 S7 Alarm2 ON RTD1 S7 Alarm2 OFF RTD1 S8 Alarm1 ON RTD1 S8 Alarm1 OFF © Arcteq Relays Ltd IM00022...
Page 98 S14 Alarm1 ON RTD1 S14 Alarm1 OFF RTD1 S14 Alarm2 ON RTD1 S14 Alarm2 OFF RTD1 S15 Alarm1 ON RTD1 S15 Alarm1 OFF RTD1 S15 Alarm2 ON RTD1 S15 Alarm2 OFF RTD1 S16 Alarm1 ON © Arcteq Relays Ltd IM00022...
Page 99 S10 Meas Invalid RTD2 S11 Meas Ok RTD2 S11 Meas Invalid RTD2 S12 Meas Ok RTD2 S12 Meas Invalid RTD2 S13 Meas Ok RTD2 S13 Meas Invalid RTD2 S14 Meas Ok RTD2 S14 Meas Invalid © Arcteq Relays Ltd IM00022...
Page 100: Programmable Stage (Pgx>/<; 99)
1 ms. The function also provides a resettable cumulative counter for the START, TRIP and BLOCKED events. Analog values The numerous analog signals have been divided into categories to help the user find the desired value. © Arcteq Relays Ltd IM00022...
Page 101 I01 primary current of a current-resistive component I01CapP I01 primary current of a current-capacitive component I01ResS I01 secondary current of a current-resistive component I01CapS I01 secondary current of a current-capacitive component I02ResP I02 primary current of a current-resistive component © Arcteq Relays Ltd IM00022...
Page 102 Positive sequence voltage angle (degrees) U2 neg.seq.V Ang Negative sequence voltage angle (degrees) Table. 4.4.2 - 54. Power measurements Name Description S3PH Three-phase apparent power S (kVA) P3PH Three-phase active power P (kW) Q3PH Three-phase reactive power Q (kvar) © Arcteq Relays Ltd IM00022...
Page 103 Positive Impedance Z primary (Ω) ZSeqSec Positive Impedance Z secondary (Ω) ZSeqAngle Positive Impedance Z angle Table. 4.4.2 - 57. Conductances, susceptances and admittances (L1, L2, L3) Name Description GLxPri Conductance G L1, L2, L3 primary (mS) © Arcteq Relays Ltd IM00022...
Page 104 Transformer thermal temperature RTD meas 1…16 RTD measurement channels 1…16 Ext RTD meas 1…8 External RTD measurement channels 1…8 (ADAM) mA input 7,8,15,16 mA input channels 7, 8, 15, 16 ASC 1…4 Analog scaled curves 1…4 © Arcteq Relays Ltd IM00022...
Page 105 -5 000 000...5 000 The ratio between measured magnitude and the pick-up MagSet3 at the setting. moment PSx >/< CalcMeasMag/ -5 000 000...5 000 The ratio between calculated magnitude and the pick-up MagSet at the setting. moment © Arcteq Relays Ltd IM00022...
Page 106 If the measured signal is less than the set pick-up level, the comparison 2: Under < condition is fulfilled. The user can also set a blocking limit: the comparison is not active when the measured value is less than the set blocking limit. © Arcteq Relays Ltd IM00022...
Page 107 START, TRIP, and BLOCKED. The user can select which event messages are stored in the main event buffer: ON, OFF, or both. The events triggered by the function are recorded with a time stamp and with process data values. © Arcteq Relays Ltd IM00022...
Page 108 PGS1 PS4 >/< Block OFF PGS1 PS5 >/< Start ON PGS1 PS5 >/< Start OFF PGS1 PS5 >/< Trip ON PGS1 PS5 >/< Trip OFF PGS1 PS5 >/< Block ON PGS1 PS5 >/< Block OFF © Arcteq Relays Ltd IM00022...
Page 109 PGS1 PS9 >/< Block ON PGS1 PS9 >/< Block OFF PGS1 PS10 >/< Start ON PGS1 PS10 >/< Start OFF PGS1 PS10 >/< Trip ON PGS1 PS10 >/< Trip OFF PGS1 PS10 >/< Block ON © Arcteq Relays Ltd IM00022...
Page 110: Control Functions
The following figure presents a simplified function block diagram of the setting group selection function. Figure. 4.5.1 - 73. Simplified function block diagram of the setting group selection function. © Arcteq Relays Ltd IM00022...
Page 111 Table. 4.5.1 - 65. Settings of the setting group selection function. Name Range Default Description 0: SG1 1: SG2 2: SG3 Active setting 3: SG4 Displays which setting group is active. group 4: SG5 5: SG6 6: SG7 7: SG8 © Arcteq Relays Ltd IM00022...
Page 112 The selection of Setting group 4 ("SG4"). Has the fourth highest priority input in setting group control. group Can be controlled with pulses or static signals. If static signal control is applied, no requests with a lower priority than SG1, SG2 and SG3 will be processed. © Arcteq Relays Ltd IM00022...
Page 113 Petersen coil is connected when the network is compensated, or whether it is open when the network is unearthed. © Arcteq Relays Ltd IM00022...
Page 114 The status of the Petersen coil controls whether Setting group 1 is active. If the coil is disconnected, Setting group 2 is active. This way, if the wire is broken for some reason, the setting group is always controlled to SG2. © Arcteq Relays Ltd IM00022...
Page 115 4 Functions A A Q Q -P215 -P215 4.5 Control functions Instruction manual Version: 2.09 Figure. 4.5.1 - 76. Setting group control – two-wire connection from Petersen coil status. © Arcteq Relays Ltd IM00022...
Page 116 The application-controlled setting group change can also be applied entirely from the relay's internal logics. For example, the setting group change can be based on the cold load pick-up function (see the image below). © Arcteq Relays Ltd IM00022...
Page 117 The function does not have a register. Table. 4.5.1 - 67. Event messages. Event block name Event names SG2 Enabled SG2 Disabled SG3 Enabled SG3 Disabled SG4 Enabled SG4 Disabled © Arcteq Relays Ltd IM00022...
Page 118 Remote Change SG Request ON Remote Change SG Request OFF Local Change SG Request ON Local Change SG Request OFF Force Change SG ON Force Change SG OFF SG Request Fail Not configured SG ON © Arcteq Relays Ltd IM00022...
Page 119: Milliampere Output Control
• good for travelling long distances, as current does not degrade over long connections like voltage does • less sensitive to background electrical noise • detects a fault in the system incredibly easily since 4 mA is equal to 0 % output. © Arcteq Relays Ltd IM00022...
Page 120 The second input point in the mA output 0.001 …10 value 2 control curve. Scaled The mA output value when the measured value mA output 0.0000…24.0000mA 0.0001mA 0mA is equal to or greater than Input value 2. value 2 © Arcteq Relays Ltd IM00022...
Page 121 Displays the input value of the selected mA 0.001 …10 Magnitude now output channel at that moment. mA Out Channel Displays the output value of the selected mA 0.0000…24.0000mA 0.0001mA Outputs now output channel at that moment. © Arcteq Relays Ltd IM00022...
Page 122: Programmable Control Switch
ON, OFF, or both. The function offers five (5) independent switches. Table. 4.5.3 - 73. Event messages. Event block name Event names Switch 1 ON Switch 1 OFF Switch 2 ON Switch 2 OFF Switch 3 ON Switch 3 OFF Switch 4 ON © Arcteq Relays Ltd IM00022...
Page 123: Analog Input Scaling Curves
1: Yes signal. filtering Curve 1...4 Time constant for input signal filtering. input signal 0.005...3800.000 0.005 s This parameter is visible when "Curve 1...4 input filter time signal filtering" has been set to "Yes". constant © Arcteq Relays Ltd IM00022...
Page 124 Floating point 1: Integer Scaled value Floating Rounds the milliampere signal output as selected. (Floor) handling point 2: Integer (Ceiling) 3: Integer (Nearest) © Arcteq Relays Ltd IM00022...
Page 125: Logical Outputs
5 ("OUT5") when the circuit breaker's cart status is "In". Figure. 4.5.5 - 80. Logic output example. Logical output is connected to an output relay in matrix. © Arcteq Relays Ltd IM00022...
Page 126: Logical Inputs
Figure. 4.5.6 - 81. Operation of logical input in "Hold" and "Pulse" modes. A logical input pulse can also be extended by connecting a DELAY-low gate to a logical output, as has been done in the example figure below. © Arcteq Relays Ltd IM00022...
Page 127: Monitoring Functions
The maximum sample rate of the recorder's analog channels is 64 samples per cycle. The recorder also supports 95 digital channels simultaneously with the twenty (20) measured analog channels. Maximum capacity of recordings is 100. © Arcteq Relays Ltd IM00022...
Page 128 F tracked 2 Tracked frequency of reference 2 F tracked 3 Tracked frequency of reference 3 ISup Current measurement module voltage supply supervision (CT card 1) ISup'' Current measurement module voltage supply supervision (CT card 2) © Arcteq Relays Ltd IM00022...
Page 129 Pha.curr.ILx TRMS Pri ILx (IL1, IL2, IL3) IL2, IL3) Phase angle ILx (IL1, Positive/Negative/Zero sequence Pha.angle ILx Pos./Neg./Zero seq.curr. IL2, IL3) current Phase current ILx (IL1, Sec.Pos./Neg./Zero Secondary positive/negative/zero Pha.curr.ILx IL2, IL3) seq.curr. sequence current © Arcteq Relays Ltd IM00022...
Page 130 System volt ULx mag(kV) ULx in kilovolts (U1, U2, U3, U4) Secondary Ux voltage Angle of the system voltage ULx Ux Volt TRMS sec TRMS (U1, U2, U3, System volt ULx ang (U1, U2, U3, U4) © Arcteq Relays Ltd IM00022...
Page 131 ILx (IL1, IL2, Current Pri. Current Sec. current I0x (I01, I02) IL3) Power, GYB, frequency Lx power factor (L1, Lx PF Curve x Input Input of Curve x (1, 2, 3, 4) L2, L3) © Arcteq Relays Ltd IM00022...
Page 132 Enable f based functions frequency-based protection component (Pri) component I01 functions are enabled. Table. 4.6.1 - 81. Digital recording channels – Binary signals. Signal Description Signal Description Digital input 1...11 Timer x Output Output of Timer 1...10 © Arcteq Relays Ltd IM00022...
Page 133 "Estimating the maximum length of total recording time". Table. 4.6.1 - 82. Recorder control settings. Name Range Step Default Description Recorder 0: Enabled Enables and disables the disturbance recorder function. enabled 1: Disabled Enabled © Arcteq Relays Ltd IM00022...
Page 134 Selects the trigger input(s). Clicking the "Edit" button brings up a pop-up window, and checking the trigger boxes enable the selected triggers. Table. 4.6.1 - 84. Recorder settings. Name Range Step Default Description Recording length 0.100...1800.000s 0.01s 1s Sets the length of a recording. © Arcteq Relays Ltd IM00022...
Page 135 However, if the user wishes to confirm this calculation, they can do so with the following formula. Please note that the formula assumes there are no other files in the FTP that share the 64 MB space. © Arcteq Relays Ltd IM00022...
Page 136 The recorder is configured by using the setting tool software or relay HMI, and the results are analyzed with the AQviewer software (is automatically downloaded and installed with AQtivate). Registered users can download the latest tools from the Arcteq website (arcteq.fi./downloads/).
Page 137 ) . Alternatively, the user can load the recordings individually ( Disturbance recorder → DR List ) from a folder in the PC's hard disk drive; the exact location of the folder is described in Tools → Settings → DR path . © Arcteq Relays Ltd IM00022...
Page 138: Event Logger
Version: 2.09 The user can also launch the AQviewer software from the Disturbance recorder menu. AQviewer software instructions can be found in AQtivate 200 Instruction manual (arcteq.fi./downloads/). Events The disturbance recorder function (abbreviated "DR" in event block names) generates events and registers from the status changes of the function: the recorder generates an event each time it is triggered (manually or by dedicated signals).
Page 139: Measurement Recorder
The setting tool estimates the maximum recording time, which depends on the recording interval. When the measurement recorder is running, the measurements can be viewed in graph form with the AQtivate PRO software (see the image below). © Arcteq Relays Ltd IM00022...
Page 140 V V olta oltage mea ge measur surements ements L2 Imp.React.Cap.E.Mvarh Res.Curr.I01 TRMS Pri U1Volt Pri L2 Imp.React.Cap.E.kvarh Res.Curr.I02 TRMS Pri U2Volt Pri L2 Exp/Imp React.Cap.E.bal.Mvarh Sec.Pha.Curr.IL1 U3Volt Pri L2 Exp/Imp React.Cap.E.bal.kvarh Sec.Pha.Curr.IL2 U4Volt Pri L2 Exp.React.Ind.E.Mvarh © Arcteq Relays Ltd IM00022...
Page 141 Neg.Seq.Volt. p.u. Exp/Imp Act. E balance MWh Pha.L3 ampl. THD Zero.Seq.Volt. p.u. Exp/Imp Act. E balance kWh Pha.L1 pow. THD U1Volt Angle Exp.React.Cap.E.Mvarh Pha.L2 pow. THD U2Volt Angle Exp.React.Cap.E.kvarh Pha.L3 pow. THD U3Volt Angle Imp.React.Cap.E.Mvarh © Arcteq Relays Ltd IM00022...
Page 142 S2 Measurement I” Pri.Neg.Seq.Curr. System Volt UL31 ang S3 Measurement I” Pri.Zero.Seq.Curr. System Volt UL1 ang S4 Measurement Res.Curr.I”01 TRMS Pri System Volt UL2 ang S5 Measurement Res.Curr.I”02 TRMS Pri System Volt UL3 ang S6 Measurement © Arcteq Relays Ltd IM00022...
Page 143 L1 Exp.Active Energy kWh Curve1 Input Pha.IL”2 ampl. THD L1 Imp.Active Energy MWh Curve1 Output Pha.IL”3 ampl. THD L1 Imp.Active Energy kWh Curve2 Input Pha.IL”1 pow. THD L1 Exp/Imp Act. E balance MWh Curve2 Output © Arcteq Relays Ltd IM00022...
Page 144: Running Hour Counter
1: Clear Table. 4.6.4 - 88. Event messages. Event block name Event name RHC1 Running hour counter ON RHC1 Running hour counter OFF RHC1 Running hour counter cleared ON RHC1 Running hour counter cleared OFF © Arcteq Relays Ltd IM00022...
Page 145: Communica A Tion
Ethernet and the Virtual Ethernet. Table. 5.1 - 90. Virtual Ethernet settings. Name Description Enable virtual adapter (No / Yes) Enable virtual adapter. Off by default. IP address Set IP address of the virtual adapter. © Arcteq Relays Ltd IM00022...
Page 146 Paritybits used by serial fiber channels. 2: Odd Stopbits 1...2 Stopbits used by serial fiber channels. 0: None 1: ModbutRTU 2: ModbusIO Protocol 3: IEC103 Communication protocol used by serial fiber channels. 4: SPA 5: DNP3 6: IEC101 © Arcteq Relays Ltd IM00022...
Page 147: Time Synchronization
Commands → Sync Time command or in the clock view from the HMI. When using Sync time command AQtivate sets the time to device the connected computer is currently using. Please note that the clock doesn't run when the device is powered off. © Arcteq Relays Ltd IM00022...
Page 148: Ntp
A unique IP address must be reserved for the NTP client. The relay's IP address cannot be used. Additionally, the time zone of the relay can be set by connecting to the relay and the selecting the time zone at Commands → Set time zone in AQtivate setting tool. © Arcteq Relays Ltd IM00022...
Page 149: Communication Protocols
5.3 Communication protocols 5.3.1 Fast Modbus/TCP The fast Modbus/TCP is available as a part of the PMU functionality in the AQ-P215 model. The fast Modbus/TCP is designed to respond quickly to measured data, supporting only 64 configurable holding registers. Only Function code 3 ("Read holding registers") is supported. Other restrictions are described below.
Page 150: Iec 61850
AQ-25x frame units support both Edition 1 and 2 of IEC 61850. The following services are supported by IEC 61850 in Arcteq devices: • Up to six data sets (predefined data sets can be edited with the IEC 61850 tool in AQtivate) •...
Page 151 0.01…5000.00 0.01 Determines the data reporting deadband settings Voltage deadband 200 V for this measurement. Residual 0.01…5000.00 0.01 Determines the data reporting deadband settings 200 V voltage deadband for this measurement. © Arcteq Relays Ltd IM00022...
Page 152: Goose
→ AQ 200 series → Resources). 5.3.2.1 GOOSE Arcteq relays support both GOOSE publisher and GOOSE subscriber. GOOSE subscriber is enabled with the "GOOSE subscriber enable" parameter at Communication → Protocols → IEC 61850/ GOOSE. The GOOSE inputs are configured using either the local HMI or the AQtivate software.
Page 153: Modbus/Tcp And Modbus/Rtu
• Read multiple holding registers (function code 3) • Write single holding register (function code 6) • Write multiple holding registers (function code 16) • Read/Write multiple registers (function code 23) The following data can be accessed using both Modbus/TCP and Modbus/RTU: © Arcteq Relays Ltd IM00022...
Page 154: Iec 103
AQ-200 device and receive information by polling from the slave device. The transfer of disturbance recordings is not supported. NOTE TE: Once the configuration file has been loaded, the IEC 103 map of the relay can be found in the AQtivate software ( Tools → IEC 103 map ). © Arcteq Relays Ltd IM00022...
Page 155: Iec 101/104
Defines the cause of transmission size. size IEC 104 settings Table. 5.3.5 - 107. IEC 104 settings. Name Range Step Default Description IEC 104 Disabled Enables and disables the IEC 104 communication protocol. enable Disabled Enabled © Arcteq Relays Ltd IM00022...
Page 156 Residual current 12: 1 000 000 Voltage Residual voltage Angle Deadband settings. Table. 5.3.5 - 109. Analog change deadband settings. Name Range Step Default Description Determines the general data reporting General deadband 0.1…10.0% 0.1% deadband settings. © Arcteq Relays Ltd IM00022...
Page 157: Spa
AQtivate ( Tools → SPA map ). The SPA event addresses can be found at Tools → Events and logs → Event list . Table. 5.3.6 - 110. SPA setting parameters. Name Range Description 1...899 SPA slave address. address © Arcteq Relays Ltd IM00022...
Page 158: Dnp3
Counts the total number of errors in received and sent messages. 0…2 counter Diagnostic -1 1 Counts the total number of transmitted messages. 0…2 Transmitted messages Diagnostic - Received -1 1 Counts the total number of received messages. 0…2 messages © Arcteq Relays Ltd IM00022...
Page 159 0.1% deadband settings. Active energy deadband 0.1…1000.0kWh 0.1kWh 2kWh Reactive 0.1…1000.0kVar 0.1kVar 2kVar energy deadband Determines the data reporting deadband settings for this measurement. Active power deadband 0.1…1000.0kW 0.1kW Reactive 0.1…1000.0kVar 0.1kVar 2kVar power deadband © Arcteq Relays Ltd IM00022...
Page 160: Modbus I/O
"0", the selected module is not in use. Module x 0: ADAM-4018+ Selects the module type. type 1: ADAM-4015 Channel Channels in 0…Channel 7 (or Selects the number of channels to be used by the module. None) © Arcteq Relays Ltd IM00022...
Page 161: Analog Fault Registers
The real measurement update delay depends on the used communication protocol and equipment used. Up to ten (10) magnitudes can be selected. The recorded value can be either a per- unit value or a primary value (set by the user). © Arcteq Relays Ltd IM00022...
Page 162 P3PH Three-phase apparent, active and reactive power. Q3PH SL1, SL2, SL3, PL1, PL2, PL3, Phase apparent, active and reactive powers. QL1, QL2, QL3 tanfi3PH tanfiL1 Tan (φ) of three-phase powers and phase powers. tanfiL2 tanfiL3 © Arcteq Relays Ltd IM00022...
Page 163 0: Disabled Activates and disables the real-time signals value recorder 1: Activated Disabled to communication. mode Scale current 0: No Selects whether or not values are scaled to 0: No values to primary 1: Yes primary. © Arcteq Relays Ltd IM00022...
Page 164 Displays the measured value of the selected magnitude of the selected slot. -10 000 000.000…10 000 Magnitude X 0.001 - The unit depends on the selected 000.000 magnitude (either amperes, volts, or per- unit values). © Arcteq Relays Ltd IM00022...
Page 165: Connections Of Aq-P215
6 Connections and application examples A A Q Q -P215 -P215 6.1 Connections of AQ-P215 Instruction manual Version: 2.09 6 Connections and application examples 6.1 Connections of AQ-P215 Figure. 6.1 - 86. AQ-P215 variant without add-on modules. © Arcteq Relays Ltd IM00022...
Page 166 A A Q Q -P215 -P215 6 Connections and application examples Instruction manual 6.1 Connections of AQ-P215 Version: 2.09 Figure. 6.1 - 87. AQ-P215 variant with digital input and output modules. © Arcteq Relays Ltd IM00022...
Page 167: Application Example And Its Connections
6 Connections and application examples A A Q Q -P215 -P215 6.2 Application example and its connections Instruction manual Version: 2.09 Figure. 6.1 - 88. AQ-P215 application example with function block diagram. AQ-P215 Device I/O Add-on 3 (IL) 4 voltage 1...3...
Page 168: Two-Phase, Three-Wire Aron Input Connection
This chapter presents the two-phase, three-wire ARON input connection for any AQ-200 series device with a current transformer. The example is for applications with protection CTs for just two phases. The connection is suitable for both motor and feeder applications. © Arcteq Relays Ltd IM00022...
Page 169 A fault between Line 2 and the earth cannot be detected when the ARON input connection is used. In order to detect an earth fault in Phase 2, a cable core CT must be used. © Arcteq Relays Ltd IM00022...
Page 170: Construction And Installation Tion
In field upgrades, therefore, add-on modules must be ordered from Arcteq Relays Ltd. or its representative who can then provide the module with its corresponding unlocking code to allow the device to operate correctly once the hardware configuration has been upgraded.
Page 171 "OUT6", "OUT7", "OUT8", "OUT9" and "OUT10" to this slot. The I/O is then added if the type designation code (e.g. AQ-P215-PH0AAAA-BBC) matches with the existing modules in the device. If the code and the modules do not match, the device issues and alarm.
Page 172: Cpu Module
Slot C. It also has a total of 10 digital output channels available: five (DO1…DO5) in the CPU module, and five (DO6…DO10) in Slot E. These same principles apply to all non-standard configurations in the AQ-X215 devices. 7.2 CPU module Figure. 7.2 - 93. CPU module. © Arcteq Relays Ltd IM00022...
Page 173 The auxiliary voltage is defined in the ordering code: the available power supply models available are A (80…265 VAC/DC) and B (18…75 DC). For further details, please refer to the "Auxiliary voltage" chapter in the "Technical data" section of this document. © Arcteq Relays Ltd IM00022...
Page 174 0…15 milliseconds in theory and 2…13 milliseconds in practice. Please note that the mechanical delay of the relay is no not t included in these approximations. © Arcteq Relays Ltd IM00022...
Page 175: Current Measurement Module
64 samples/cycle when the system frequency ranges from 6 Hz to 75 Hz. For further details please refer to the "Current measurement" chapter in the “Technical data” section of this document. © Arcteq Relays Ltd IM00022...
Page 176: Voltage Measurement Module
64 samples/cycle when the system frequency ranges from 6 Hz to 75 Hz. For further details please refer to the "Voltage measurement" chapter in the “Technical data” section of this document. © Arcteq Relays Ltd IM00022...
Page 177: Option Cards
1 V. All digital inputs are scannced in 5 ms program cycles, and their pick-up and release delays as well as their NO/NC selection can be set with software. © Arcteq Relays Ltd IM00022...
Page 178 (NC) defines whether or not the digital input is considered activated when the digital input channel is energized. The diagram below depicts the digital input states when the input channels are energized and de- energized. © Arcteq Relays Ltd IM00022...
Page 179 Control → Device IO → Digital inputs → Digital input voltages . Table. 7.5.1 - 124. Digital input channel voltage measurement. Name Range Step Description DIx Voltage now 0.000...275.000 V 0.001 V Voltage measurement of a digital input channel. © Arcteq Relays Ltd IM00022...
Page 180: Digital Output Module (Optional)
For technical details please refer to the chapter titled "Digital output module" in the "Technical data" section of this document. Digital output descriptions Option card outputs can be given a description. The user defined description are displayed in most of the menus: • logic editor • matrix © Arcteq Relays Ltd IM00022...
Page 181: Rtd Input Module (Optional)
The RTD input module is an add-on module with eight (8) RTD input channels. Each input supports 2-wire, 3-wire and 4-wire RTD sensors. The sensor type can be selected with software for two groups, four channels each. The card supports Pt100 and Pt1000 sensors © Arcteq Relays Ltd IM00022...
Page 182: Serial Rs-232 Communication Module (Optional)
Description • Serial-based communications • Wavelength 660 nm Serial fiber (GG/PP/ COM E • Compatible with 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 μm GP/PG) Plastic-Clad Silica (PCS) fiber • Compatible with ST connectors © Arcteq Relays Ltd IM00022...
Page 183 COM F – Clock sync GND Clock synchronization input Pin 12 The option card includes two serial communication interfaces: COM E is a serial fiber interface with glass/plastic option, COM F is an RS-232 interface. © Arcteq Relays Ltd IM00022...
Page 184: Lc Or Rj45 100 Mbps Ethernet Communication Module (Optional)
• Communication port D, 100 Mbps LC fiber connector. • RJ-45 connectors COM D: • 62.5/125 μm or 50/125 μm multimode (glass). • 10BASE-T and 100BASE-TX • Wavelength 1300 nm. Both cards support both HSR and PRP protocols. © Arcteq Relays Ltd IM00022...
Page 185: Double St 100 Mbps Ethernet Communication Module (Optional)
For other redundancy options, please refer to the option card "LC 100 Mbps Ethernet communication module". The images below present two example configurations: the first displays a ring configuration (note how the third party devices are connected in a separate ring), while the second displays a multidrop configuration. © Arcteq Relays Ltd IM00022...
Page 186 A A Q Q -P215 -P215 7 Construction and installation Instruction manual 7.5 Option cards Version: 2.09 Figure. 7.5.6 - 104. Example of a ring configuration. Figure. 7.5.6 - 105. Example of a multidrop configuration. © Arcteq Relays Ltd IM00022...
Page 187: Double Rj45 10/100 Mbps Ethernet Communication Module (Optional)
• Two Ethernet ports RJ-45 connectors • RJ-45 connectors • 10BASE-T and 100BASE-TX This option card supports multidrop configurations. For other redundancy options, please refer to the option card "LC 100 Mbps Ethernet communication module". © Arcteq Relays Ltd IM00022...
Page 188: Milliampere (Ma) I/O Module (Optional)
Pin 1 mA OUT 1 + connector (0…24 mA) Pin 2 mA OUT 1 – connector (0…24 mA) Pin 3 mA OUT 2 + connector (0…24 mA) Pin 4 mA OUT 2 – connector (0…24 mA) © Arcteq Relays Ltd IM00022...
Page 189: Dimensions And Installation
(¼) of the rack's width, meaning that a total of four devices can be installed to the same rack next to one another. The figures below describe the device dimensions (first figure), the device installation (second), and the panel cutout dimensions and device spacing (third). Figure. 7.6 - 109. Device dimensions. © Arcteq Relays Ltd IM00022...
Page 190 A A Q Q -P215 -P215 7 Construction and installation Instruction manual 7.6 Dimensions and installation Version: 2.09 Figure. 7.6 - 110. Device installation. © Arcteq Relays Ltd IM00022...
Page 191 7 Construction and installation A A Q Q -P215 -P215 7.6 Dimensions and installation Instruction manual Version: 2.09 Figure. 7.6 - 111. Panel cutout dimensions and device spacing. © Arcteq Relays Ltd IM00022...
Page 192: Technic Echnical Da Al Data Ta
< ±0.2° (I> 0.1 A) Angle measurement inaccuracy < ±1.0° (I≤ 0.1 A) Burden (50/60 Hz) <0.1 VA Transient overreach <8 % Coarse residual current input (I01) Rated current I 1 A (configurable 0.1…10 A) © Arcteq Relays Ltd IM00022...
Page 193 4 mm Maximum wire diameter NOTICE! TICE! Current measurement accuracy has been verified with 50/60 Hz. The amplitude difference is 0.2 % and the angle difference is 0.5 degrees higher at 16.67 Hz and other frequencies. © Arcteq Relays Ltd IM00022...
Page 194: Voltage Measurement
The amplitude difference is 0.2 % and the angle difference is 0.5 degrees higher at 16.67 Hz and other frequencies. 8.1.1.3 Voltage memory Table. 8.1.1.3 - 128. Technical data for the voltage memory function. Measurement inputs Voltage inputs © Arcteq Relays Ltd IM00022...
Page 195: Power And Energy Measurement
3 VA secondary Energy measurement Frequency range 6…75 Hz 0.5% down to 1A RMS (50/60Hz) as standard Energy and power metering 0.2% down to 1A RMS (50/60Hz) option available (see the order code for inaccuracy details) © Arcteq Relays Ltd IM00022...
Page 196: Frequency Measurement
Maximum wire diameter 2.5 mm Other Minimum recommended fuse rating MCB C2 Table. 8.1.2.1 - 133. Power supply model B Rated values Rated auxiliary voltage 18…72 VDC < 7 W Power consumption < 15 W © Arcteq Relays Ltd IM00022...
Page 197: Cpu Communication Ports
Port media Copper Ethernet RJ-45 Number of ports Features IEC 61850 IEC 104 Modbus/TCP Port protocols DNP3 Telnet Data transfer rate 100 MB/s System integration Can be used for system protocols and for local programming © Arcteq Relays Ltd IM00022...
Page 198: Cpu Digital Inputs
Terminal block Phoenix Contact MSTB 2,5/5-ST-5,08 Solid or stranded wire 2.5 mm Maximum wire diameter 8.1.2.4 CPU digital outputs Table. 8.1.2.4 - 138. Digital outputs (Normally Open) Rated values Rated auxiliary voltage 265 V (AC/DC) © Arcteq Relays Ltd IM00022...
Page 199 220 VDC 0.15 A Control rate 5 ms Settings Polarity Software settable: Normally Open / Normally Closed Terminal block connection Terminal block Phoenix Contact MSTB 2,5/5-ST-5,08 Solid or stranded wire Maximum wire diameter 2.5 mm © Arcteq Relays Ltd IM00022...
Page 200: Option Cards
Table. 8.1.3.2 - 141. Technical data for the digital output module. General information Spare part code #SP-200-DO5 Compatibility AQ-200 series models Rated values Rated auxiliary voltage 265 V (AC/DC) Continuous carry Make and carry 0.5 s 30 A Make and carry 3 s 15 A © Arcteq Relays Ltd IM00022...
Page 201: Milliampere Module (Ma Out & Ma In)
Inaccuracy @ 0...24 mA ±0.01 mA Response time @ 5 ms cycle [fixed] < 5 ms mA output scaling range 0...24 mA, setting step 0.001 mA Source signal scaling range -1 000 000.000…1 000 000.0000, setting step 0.0001 © Arcteq Relays Ltd IM00022...
Page 202: Rtd Input Module
8.1.3.6 Double LC 100 Mbps Ethernet communication module Table. 8.1.3.6 - 145. Technical data for the double LC 100 Mbps Ethernet communication module. General information Spare part code #SP-2XX-2XLC Compatibility AQ-200 series & AQ-250 series models Protocols © Arcteq Relays Ltd IM00022...
Page 203: Double St 100 Mbps Ethernet Communication Module
Phoenix Contact MC 1,5/ 2-ST-3,5 BD:1-2 8.1.4 Display Table. 8.1.4 - 147. Technical data for the HMI LCD display. General information Spare part code #SP-200-DISP Compatibility AQ-200 series models Dimensions and resolution Number of dots/resolution 320 x 160 © Arcteq Relays Ltd IM00022...
Page 204: Functions
Freely selectable analog and binary signals channels 5 ms sample rate (FFT) Performance Sample rate 8, 16, 32 or 64 samples/cycle 0.000…1800.000 s, setting step 0.001 s Recording length The maximum length is determined by the chosen signals. © Arcteq Relays Ltd IM00022...
Page 205: Event Logger
= 150 kHz….80 MHz, 10 V (RMS) EN 60255-26, IEC 61000-4-6 Table. 8.3 - 152. Voltage tests. Dielectric voltage test EN 60255-27, IEC 60255-5, EN 60255-1 2 kV (AC), 50 Hz, 1 min Impulse voltage test © Arcteq Relays Ltd IM00022...
Page 206 Table. 8.3 - 155. Environmental conditions. IP classes IP54 (front) Casing protection class IP21 (rear) Temperature ranges Ambient service temperature range –35…+70 °C Transport and storage temperature range –40…+70 °C Other Altitude <2000 m Overvoltage category Pollution degree © Arcteq Relays Ltd IM00022...
Page 207 Height: 117 mm (4U) Dimensions Width: 127 mm (¼ rack) Depth: 174 mm (no cards & connectors) Weight 1.5 kg With packaging (gross) Height: 170 mm Dimensions Width: 242 mm Depth: 219 mm Weight 2 kg © Arcteq Relays Ltd IM00022...
Page 208: Ordering Inf Dering Informa Ormation Tion
A A Q Q -P215 -P215 9 Ordering information Instruction manual 8.3 Tests and environmental Version: 2.09 9 Ordering information © Arcteq Relays Ltd IM00022...
Page 209 External 8-ch Thermocouple mA Input module, Requires an Advanced pre-configured external power module Co. Ltd. AQX033 Raising frame 87 mm Arcteq Ltd. AQX070 Raising frame 40 mm Arcteq Ltd. AQX069 Combiflex frame Arcteq Ltd. AQX097 Wall mounting bracket Arcteq Ltd. © Arcteq Relays Ltd IM00022...
Page 210: Arcteq Relays Ltd
Arcteq Relays Ltd. Visiting and postal address Kvartsikatu 2 A 1 65300 Vaasa, Finland Contacts Phone: +358 10 3221 370 Website: arcteq.fi Technical support: support.arcteq.fi +358 10 3221 388 (EET 9:00 – 17.00) E-mail (sales): sales@arcteq.fi © Arcteq Relays Ltd IM00022...

Arcteq AQ-P215 Instruction Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Arcteq AQ-P215

Summary of Contents for Arcteq AQ-P215

Table of Contents
