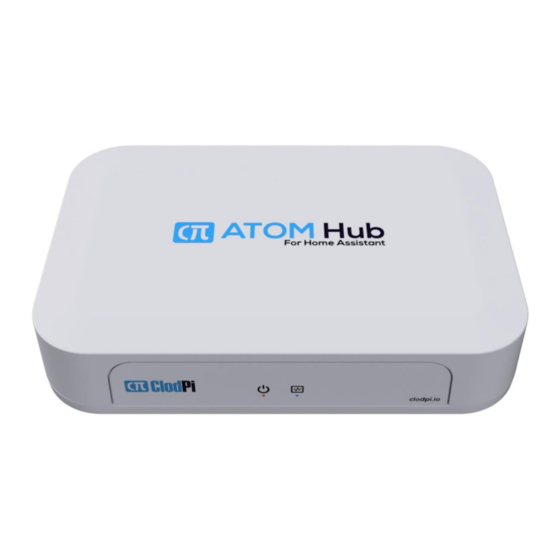

How to install battery in to ClodPi Labs ATOM Hub for Home Assistant?
ClodPi Labs ATOM Hub for Home Assistant does not come with pre-installed battery. Before you start using the ATOM Hub device, battery
installation has to be done. Below are the suggested steps to install / replace the battery
Pre-Requisite:
1) We need to open up the ATOM Hub enclosure using a screw driver (PH0 / PH1)
2) Buy locally a battery "CR2032", 3 Volts.
Steps:

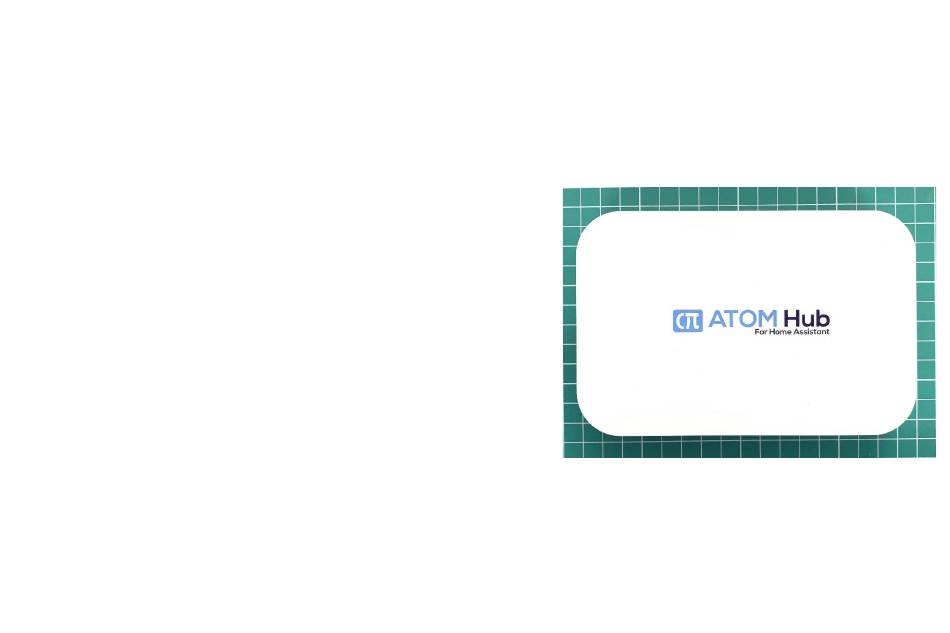

1) Take the device, do not connect to power and internet.
Advertisement
Related Manuals for ClodPi Labs ATOM Hub
Summary of Contents for ClodPi Labs ATOM Hub
- Page 1 How to install battery in to ClodPi Labs ATOM Hub for Home Assistant? ClodPi Labs ATOM Hub for Home Assistant does not come with pre-installed battery. Before you start using the ATOM Hub device, battery installation has to be done. Below are the suggested steps to install / replace the battery...
- Page 2 2) Keep the device upside down 3) Remove the rubber feet. 4) Take a screw driver (PH0 / PH1) and remove all the four screws 5) Cautiously pick the device and keep it in a way with cover is at the top 6) Remove the top cover 7) Observe a battery slot labelled U10 (highlighted in blue –...
- Page 3 8) Battery placement: • Remove the battery from the package • Slide it into the battery slot as shown in adjacent image with battery slipping under the two teeth.
- Page 4 • Hold the ATOM Hub base board from the left side firmly. • Push the battery from right side and press. • The battery should get fixed int o the slot. 9) Place the top cover 10) Keep the device upside down...
