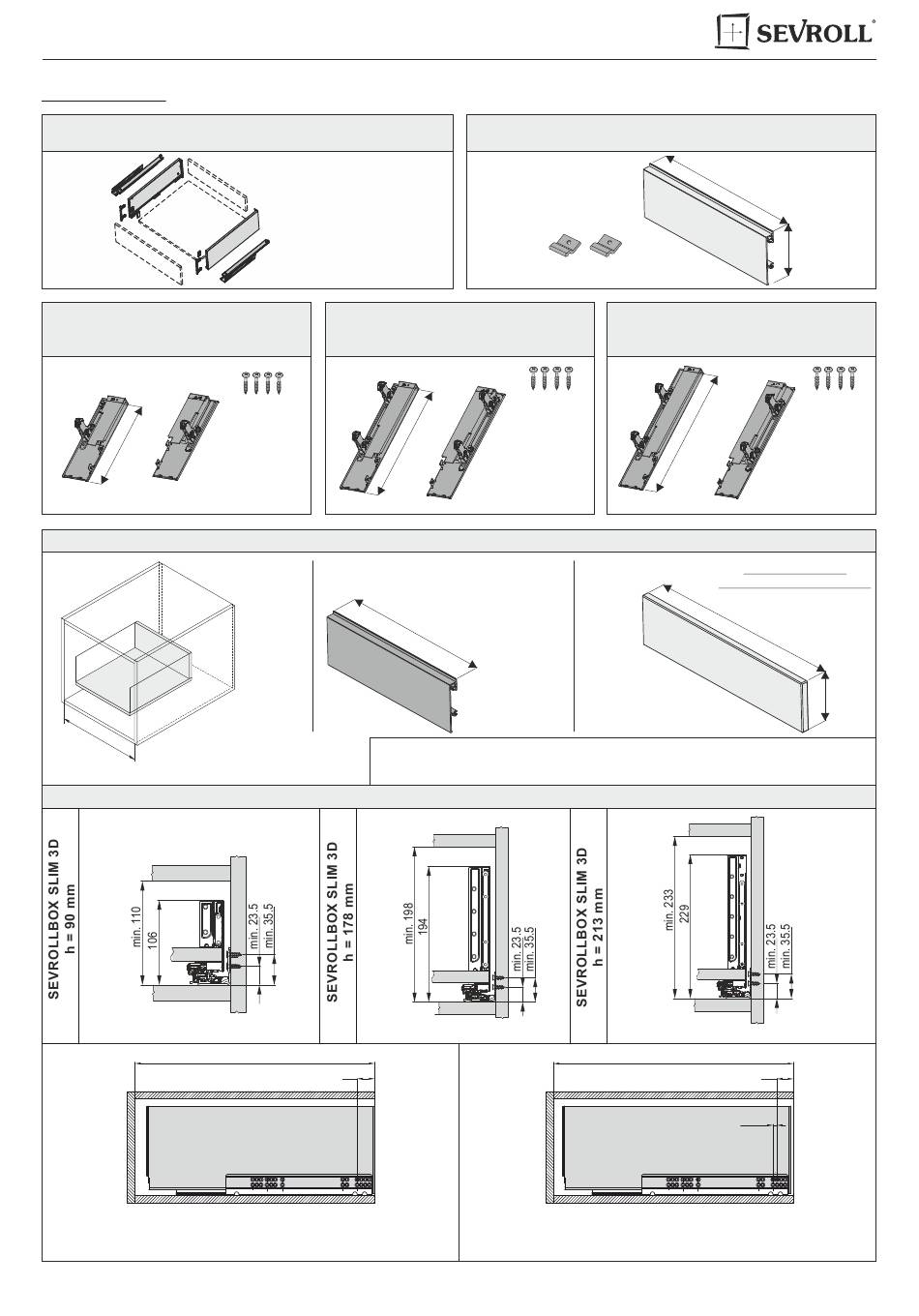

SEVROLL SEVROLLBOX SLIM 3D Quick Start Manual

Glass front fitting Set
for internal drawer front SEVROLLBOX SLIM 3D
Components:
Drawer SEVROLLBOX SLIM 3D
h = 90 mm / h = 178 mm / h = 213 mm

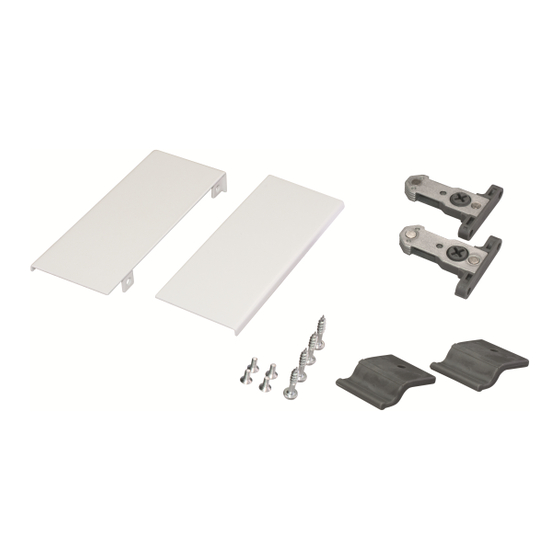

Glass front fitting Set
for internal drawer front
SEVROLLBOX SLIM 3D h= 90 mm
R L
114
L W
LW – internal width of carcass
NL – nominal length of the drawer
minimum carcass length: (NL + 3 mm)
Drawer with flush front
The front of the drawer sits level with the carcass edges
Length: 270 [mm]
300
350
400
450
500
550
Glass front fitting Set
for internal drawer front
SEVROLLBOX SLIM 3D h= 178 mm
4x25
Screws for
"front base
profile for glass"
Cutting dimensions of profiles
Front base profile for glass
NL : 270 [mm]
internal drawer front
300
350
400
450
500
550
Mounting dimensions
37 mm
internal drawer front SEVROLLBOX SLIM 3D
196
4x25
Screws for
"front base
profile for glass"
202
L = LW - 100 mm
P
H :
48 mm
135 mm
170 mm
Calculations for the back wall and base of the drawer
can be found in the instructions SEVROLLBOX SLIM 3D
ATTENTION! To ensure that the drawers cover the high front applied,
the guides should be taken back by 9 mm (one hole in the guide)
Front base profile for glass
1080
Glass front fitting Set
for internal drawer front
SEVROLLBOX SLIM 3D h= 213 mm
232
Edges should be
Glass # 8 mm
polished and chamfered!
L = LW - 85 mm
sz
sz
(for h = 90)
(for h = 178)
(for h = 213)
minimum carcass length: (NL + 12 mm)
9 mm
Drawer with inset front
into the carcass
66
4x25
Screws for
"front base
profile for glass"
H
sz
37 mm
