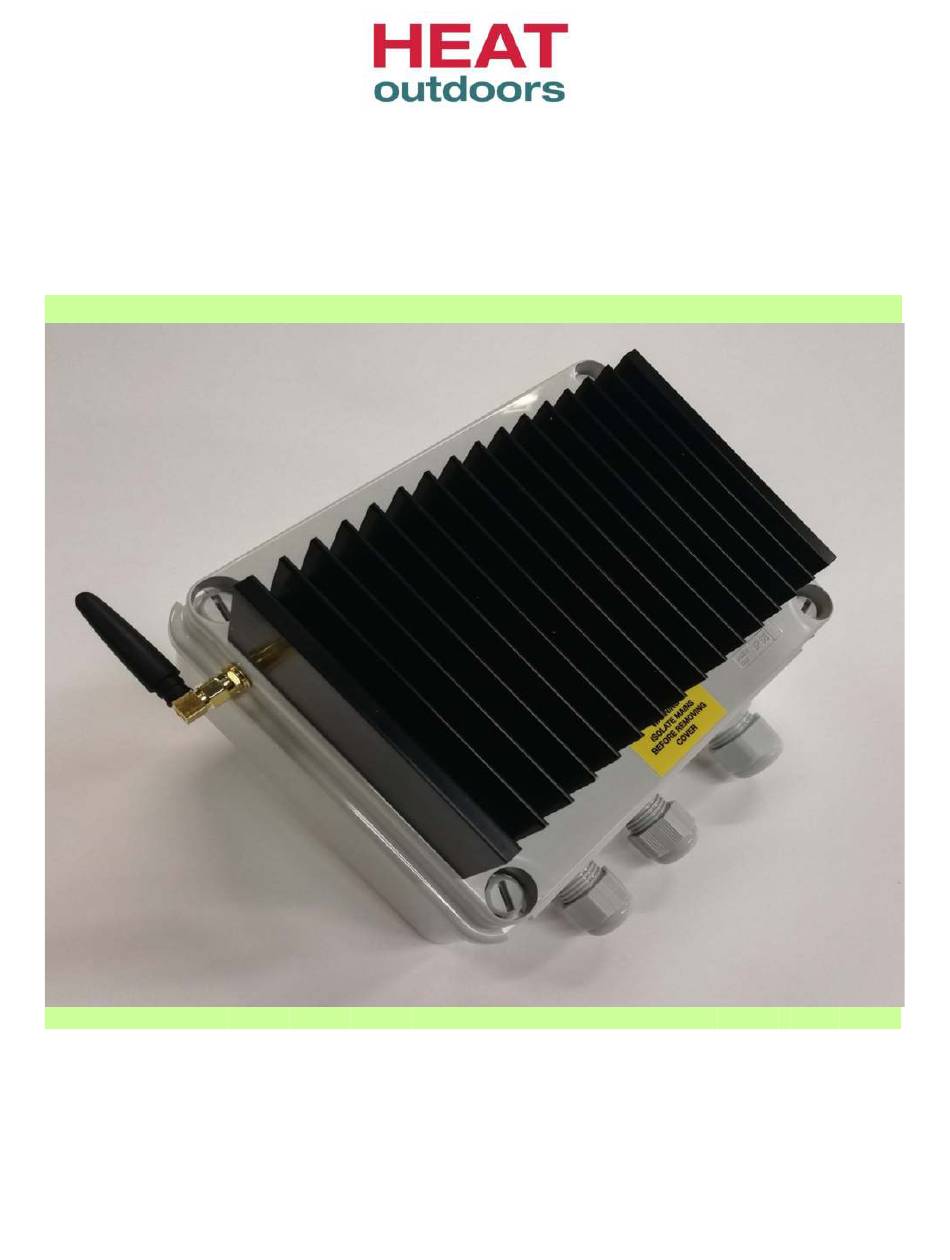

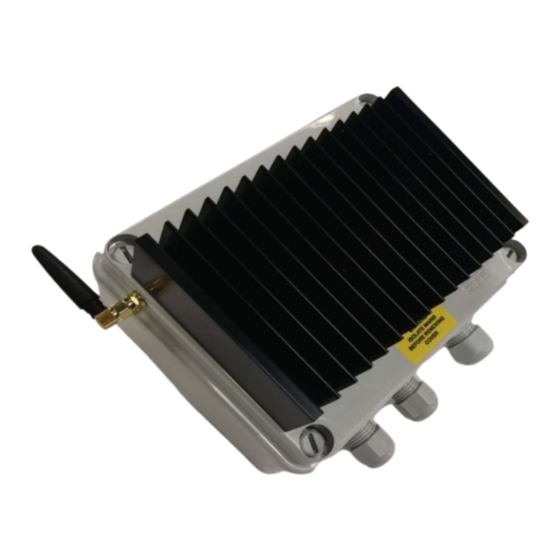

- Page 1 QHC06MR 6kW Heater Controller (Receiver) Single Phase 240v / Single Channel / Sort Start Remote Operation...
- Page 2 Quick Start for QHC06MR 6kW Heater Controller (receiver) 1) Remember isolate the Mains before removing the cover. Remove the cover by removing the 4 screws. There is a terminal strip connector for connecting the Mains IN and Mains OUT. 2) Use the three cable glands to bring the Mains cables into and out of the controller base .
- Page 3 – green – orange – green and remain Green to indicate that the unit is ready. 10) The QHC06MR unit is preset as a Blue zone (1). Turn the Blue control dial to position 1. The heaters connected to the QHC06MR units will come ON at the minimum setting 33%.
- Page 4 Pairing (programming) Devices QHVCR & QHCxxMR Pairing (programming) devices QHVCR (transmitter) and QHCxxMR (receivers). 1) The Left Hand Side rotary switches (TEN) on both boards must be set the same. The LHS switch (TEN) is used to set the RF frequency the setting must match on both boards.
- Page 5 A PIR can be connected to a QHC06MR controller. This will enable the controller to turn ON the heaters only when the presence of a person or people are detected by the PIR.
- Page 6 There are 5 setting levels > Off – 1 (33%) - 2 (50%) - 3 (66%) - 4 (100%). Any combination of our QHC controllers can be used in the proposed zoned layout below. There are 3kW QHC03MR, 6kW QHC06MR & 18kW QHC18MR controllers available to be used depending on the over all number of heaters required.
- Page 7 The setting is marked at the back of the unit. If it's marked (0) you must check to see if the QHC06MR is also set the same and is also marked (0). If they are different then the controller QHC06MR will not work.
- Page 8 RoHS Technical Data Supply voltage : Single phase 240v AC 50 Hz Max. Load capacity : 6 kilo Watt Input : Live (Brown) terminal #2 Neutral (Blue) terminal #3 Earth in (Grn/Yel) terminal #4 Input : PIR input trigger terminal #1 Output : Switched Live out (Brown) terminal #7...
