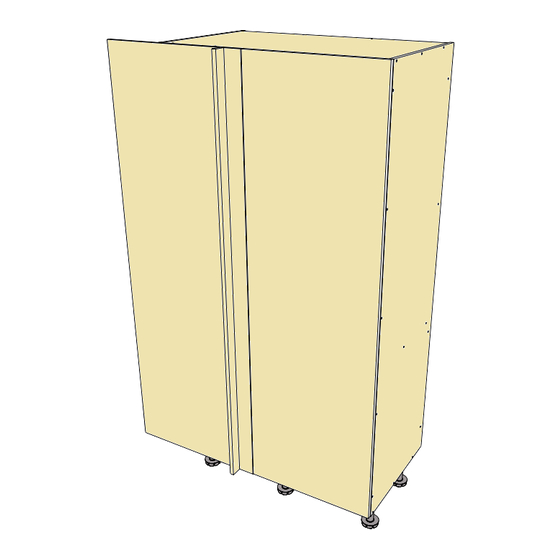

Mitre 10 PANTRY CABINET TALL RETURN PR1000-IMP Assembly Instructions

PANTRY CABINET
TAL L RE TU RN
Assembly Instructions
Suitable for Pantry Cabinets
PR1000-IMP
Art. 732.25.845
Handy Note:
Please make sure to identify the parts you need for each step. Making sure to read the instructions carefully before you start.
When assembling it is best to assemble on a soft surface to pervent damage.
Cabinet
Panels
included.
Base Panel x1 Inner Front x1
SCREWS SHELF STUD ( 28 )
Hardware
DOWELS ( 32 )
included.
POWER DRILL NO.2 POZI BIT
Required
Tools.
CLAMP LEVEL
Handy
Tools.
Manufactured in New Zealand for: Mitre 10 New Zealand Limited.
Back Panel x1 Side Panels x2 Top Panel x1 Shelf Panel x4
LEG BASE ( 5 ) TOEKICK CLIP HINGE MOUNT
( 4 )
( 2 )
FOOT ( 5 ) ADJ LEGS ( 5 )
HINGE ( 4 )
5MM DRILL BIT MALLET SCREWDRIVER
TAPE PENCIL LADDER
MEASURE
1.
Installing Leg Bases.
• Fix the Leg bases by aligning them on the base panel as shown.
• Ensure dowels in the blocks line up with the holes when you hammer it with a
rubber mallet or a hammer with a block of wood in between to prevent damage.
2.
Fixing Bottom and Back Panels.
• Lay the back flat down as shown.
• Use 50mm Cabinet Screws to fix the
bottom panel with the back panel.
Fixed Shelf x1
3.
Inserting the Dowels
• While the side panels are laying flat, insert the dowels
into the correct holes marked in the image with arrows.
Note: Position leg block as shown
in the image to support side panel.
