Super Bright LEDS BLRB Series User Manual

Important: Read all instructions prior to installation.
LED Bollard Light

Safety and Notes

WARNING—RISK OF FIRE, ELECTRIC SHOCK, INJURY, OR PROPERTY DAMAGE.
• To reduce the risk of electric shock, ensure that the main power source and circuit
breakers are switched off before performing any installation or wiring procedures.
• Product should be installed and serviced by a certified electrician in accordance
with applicable national, state, and local building and electrical codes.
• Ensure all mounts are securely attached and the foundation will support the weight
of the fixture. Failure to properly support fixture may result in damage or injury, for
which the manufacturer does not assume responsibility.
• Mount using the appropriate installation kit as offered by the manufacturer only.
CAUTION
• Edges may cut—wear gloves while handling or servicing this equipment.
• Inspect equipment for shipping damage before installation.
• Clean using a dry, soft cloth only. If necessary, use a mild detergent and luke warm
water to remove grease. Do not use undiluted detergents or those that contain
abrasives or sealants.

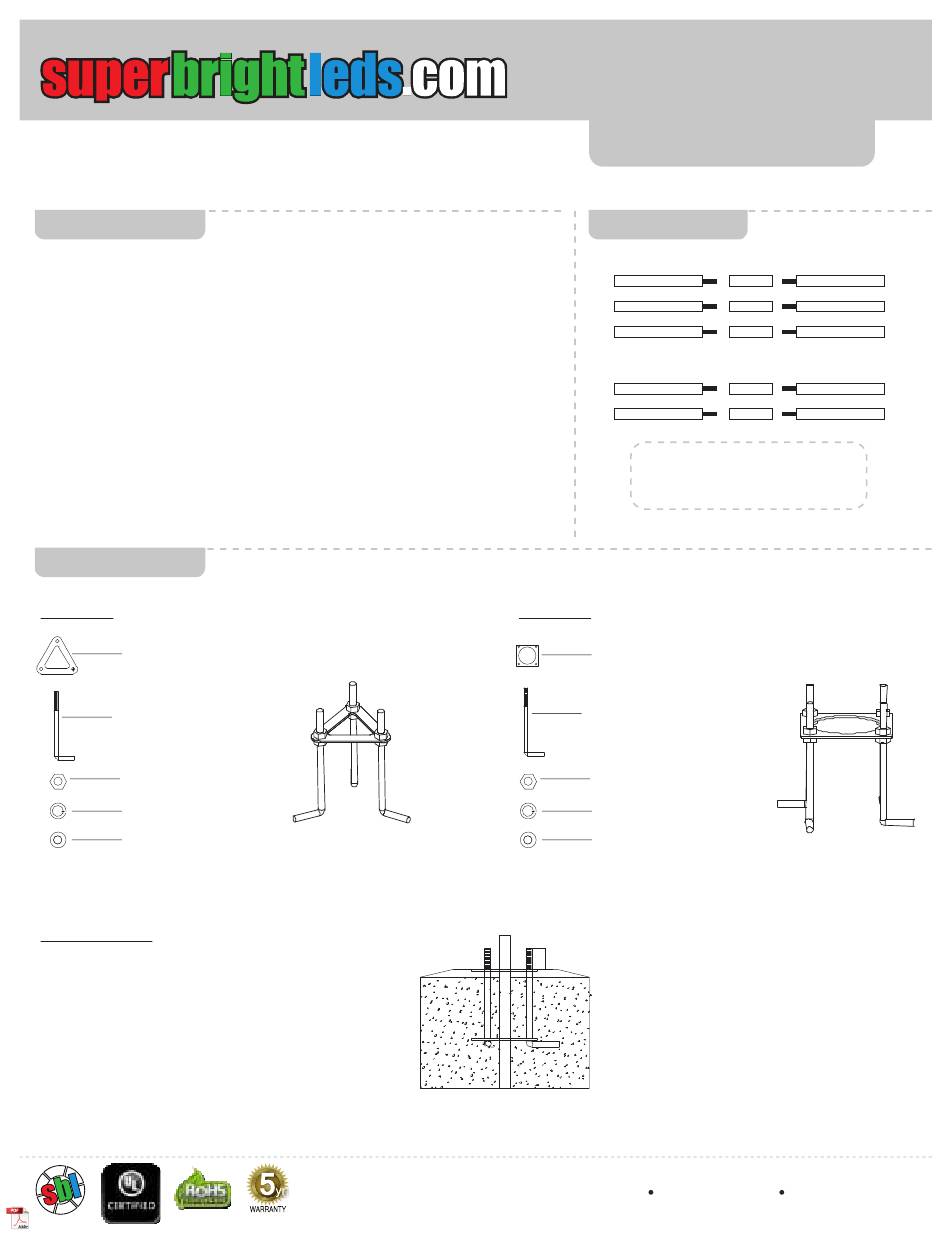

Installation Kits

BLRB-KIT
1 - Anchor Bolt Carrier
3 - Anchor Bolt
12 - Nut
3 - SpringWasher
6 - FlatWasher

INSTALLATION

With electrical conduit in place, mount anchor
bolts in concrete using the carrier to maintain
proper spacing. Install so that 1.5–2 in. of the
anchor bolt remains exposed above the surface.

Wiring Diagram

BLSB-KIT
1 - Anchor Bolt Carrier
4 - Anchor Bolt
16 - Nut
4 - SpringWasher
8 - FlatWasher
1-1/2~2"
Rev Date: V1.0 01/11/2022
4400 Earth City Expy, St. Louis, MO 63045
User Manual
BLRB and BLSB Series
120–277 VAC Input
Line
L L
Neutral
N N
Ground
GND GND
0–10 V Dimming
Dim (+)
+ +
Dim (-) Grey or Pink
- -
Check product label for specific electrical
specifications related to installation.
Improper installation will void warranty.
866-590-3533 superbrightleds.com
Black
White
Green
Purple
