Important: Read all instructions prior to installation.
Recessed LED Step Lights

Included Parts

1 - step light (stainless steel or black finish)
1 - wire pigtail

Safety and Notes

• This product should be installed and serviced in accordance with
applicable national, state, and local building and electrical codes.
• To reduce the risk of electric shock, ensure that the main power source
and circuit breakers are switched off before performing any installation
or wiring procedures.
• While the light is IP68 water-resistant, the connectors built into the
harness are not.
• When interconnected, each six light accessory harness will support
five lights each instead of six.

Optional Accessories

RSL-6S - six light wire harness for single color light
RSL-S2M - 6.6 ft (2 m) extension harness for single color light
RSL-6RGB - six light wire harness for RGB lights
RSL-RGB3M - 9.8 ft (3 m) extension harness for single RGB light

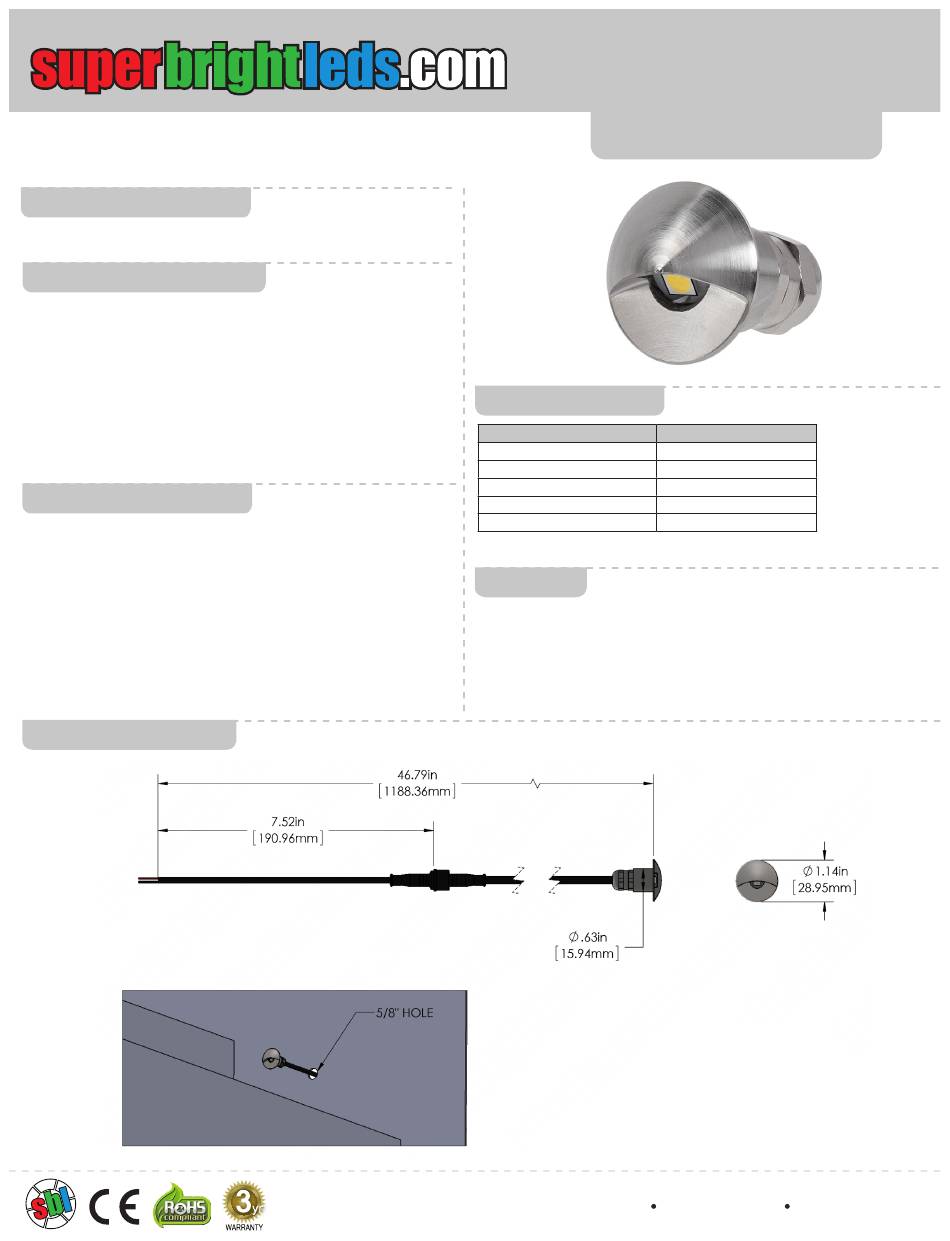

RSL-40K1-S shown (dimensions represent all models)
Rev Date: V1 07/31/2020
4400 Earth City Expy, St. Louis, MO 63045

Specifications

Model
Total Power Consumption
Operating Voltage Range
Operating Temperature
Beam Angle
Warranty

Installation

1. Mark and drill 5/8" hole in mounting surface.
2. Make electrical connection
3. Test fit light. If needed, apply silicone adhesive
to assist in securing light.
User Manual
RSL-Series
RSL-x
1 Watts
12 VDC
-4–122° F (-20–50° C)
150°
3 Years
866-590-3533
superbrightleds.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSL Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Super Bright LEDS RSL Series

  • Page 1 User Manual RSL-Series Important: Read all instructions prior to installation. Recessed LED Step Lights Included Parts 1 - step light (stainless steel or black finish) 1 - wire pigtail Safety and Notes • This product should be installed and serviced in accordance with applicable national, state, and local building and electrical codes.
  • Page 2 User Manual RSL-Series Important: Read all instructions prior to installation. Recessed LED Step Lights Dimensional Drawings (accessories) RSL-6RGB (Dimensions also represent RSL-6S) 1.70in 1.39in 1.42in 43.18mm 35.39mm 36.07mm 17.50in 17.50in PIG TAIL 444.50mm 444.50mm (5 total per harness) 10ft 3048mm TOTAL LENGTH RSL-RGB3M RSL-S2M...
