1.2 Operating your Fridge Freezer
Once you have plugged in the product, all symbols will be displayed for 2 seconds and the
initial values will be shown as -18 °C on the freezer adjustment indicator, and +4 °C on the
fridge adjustment indicator.
1.2.1 Freezer Temperature Settings
• The initial temperature value for the freezer setting indicator is -18 °C.
• Press the freezer set button once.
When you first press the button, the previous value will blink on the screen.
• Whenever you press the same button, a lower temperature will be set (-16 °C, -18 °C, -20
°C, -22 °C or -24 °C).
• If you continue to press the button, it will restart from -16 °C.
NOTE: Eco mode gets activated automatically when the temperature of the freezer
compartment is set to -18°C.
1.2.2 Cooler Temperature Settings
• The initial temperature value for the cooler setting indicator is +4 °C.
• Press the cooler button once.
• Whenever you press the button, a lower temperature will be set (+8 °C, +6 °C, +5 °C, +4
°C, or +2 °C).
• If you continue to press the button, it will restart from +8 °C.
1.2.3 Super Freeze Mode
Purpose
• To freeze a large quantity of food that cannot fit on the fast freeze shelf.
• To freeze prepared foods.
• To freeze fresh food quickly to retain freshness.
How to use
To enable the super freeze mode, press and hold the freezer temperature setting button
for 3 seconds. Once the super freeze mode has been set, the super freeze symbol on
the indicator will be lit and the machine will beep to confirm the mode has been
switched on.
353-373-383 INNER DISPLAY

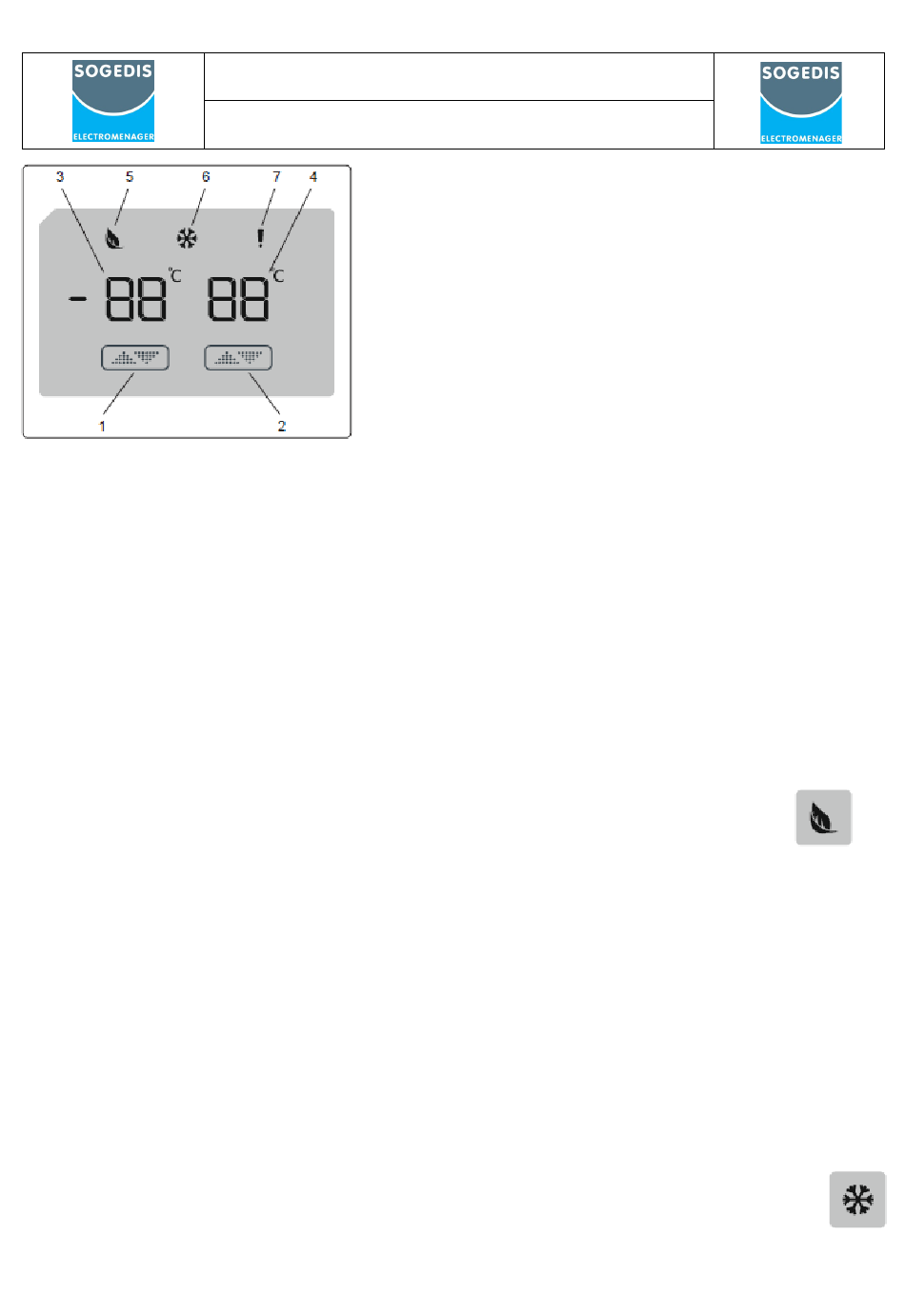

Display and Control Panel
Using the Control Panel
1. Enables the setting of the freezer to be modified
and super freeze mode to be activated if desired.
2. Enables the setting of the cooler to be modified and
super cool mode to be activated if desired.
3. Freezer set value screen.
4. Cooler set value screen.
5. Economy mode symbol.
6. Super freeze symbol.
7. Alarm symbol.
1
MARCH 2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the 353 and is the answer not in the manual?

Questions and answers

Summary of Contents for SOGEDIS 353

  • Page 1 353-373-383 INNER DISPLAY Display and Control Panel Using the Control Panel 1. Enables the setting of the freezer to be modified and super freeze mode to be activated if desired. 2. Enables the setting of the cooler to be modified and super cool mode to be activated if desired.
  • Page 2 353-373-383 INNER DISPLAY Display and Control Panel During Super Freeze Mode: • The temperature of the Cooler may be adjusted. In this case, Super Freeze mode will continue. • Economy mode cannot be selected. • Super Freeze mode can be cancelled in the same way it is selected.
  • Page 3 353-373-383 INNER DISPLAY Air Flow Diagram Cutaway view: Air Flow Direction Blown : Cold Air Returned: Hot Air MARCH 2022...
  • Page 4 353-373-383 INNER DISPLAY Refrigerant Cycle Serpentine Evaporator Condenser Hot Gas Pipe Fin Evaporator Dryer Capillary Tube Compressor This model is double controlled product without any valve. When both cooler & freezer set by user : Mainboard controls both the cooler sensor & freezer sensor. When cooler part reach requested value, if the freezer part haven’t reach the requested level;...
  • Page 5 353-373-383 INNER DISPLAY Used Component Resistance Values According To The Temperature Sensor (°C/Ohm Rates) ( For The Freezer Defrost and The Cooler Ambient Sensor) 45 °C/1kΩ -1 °C/6.2kΩ 35 °C/1.5kΩ -3 °C/6.8kΩ 30 °C/1.8kΩ -5 °C/7.5kΩ 25 °C/2.2kΩ -7 °C/8.2kΩ...
  • Page 6: Service Mode

    353-373-383 INNER DISPLAY Service Mode Entering service mode : After the cooler temperature is set to 8, push cooler temperature button for 10 seconds. • If there is a faulty situation, error code will be observed on screen. Otherwise nothing will be on the screen.
  • Page 7 353-373-383 INNER DISPLAY Service Mode To cancel Service Mode : You can use same method as entering the Service Mode. After the cooler temperature is set to 8, push cooler temperature button for 10 seconds. Sensor Faults; SENSOR FREEZER SET VALUE...
  • Page 8 353-373-383 INNER DISPLAY Special Programs NTC Sensor There are three types of sensors. They are cooler, freezer defrost, cooler defrost sensors. Cooler and freezer defrost sensors have the same features but their cable length is different. The resistance values of all sensors decrease when the temperature values of the sensors increase. For example, the resistance value that is 33 kΩ...
  • Page 9 353-373-383 INNER DISPLAY Special Programs Freezer Defrosting Time The Defrost is disabled when the defrost sensor temperature feels 8ºC.If defrost time passes 37 minutes, defrost completing temperature will be rise to 15ºC. Cooler Defrosting Time The cooler defrost and the freezer defrost are operated parallel except those below. The cooler defrost will not work if the freezer defrost stops.
  • Page 10: Abnormal Noise

    353-373-383 INNER DISPLAY Probable Faults Is the appliance too close to wall or It should be placed min 50cm heat sources (stove, central heating, distance from heat sources and oven, cooker etc.)? min 5 cm from electrical ovens. Unsufficient cooling Is the ambient temperature high? Raise the thermostat value.
  • Page 11 353-373-383 INNER DISPLAY Changing The Door Swing Direction to Right Hand Hold the top hinge cover and Unscrew the screws fixing the top hinge remove it toward that direction. and remove it. Remove the hince cover cap and Displace the top door.
  • Page 12 353-373-383 INNER DISPLAY Changing The Door Swing Direction to Right Hand Unscrew the bottom hinge screws. Displace the bottom door. Unscrew the adjustable foot. Screw the bottom hinge to the left bottom Unscrew the bottom hinge pin and side of refrigerator. Screw the adjustable screw it to other hole.
  • Page 13 353-373-383 INNER DISPLAY Changing The Door Swing Direction to Right Hand Unscrew the two screws fixing stopper Replace the top bushing and the and stopper support plate under the bottom top bushing cap at the bottom door. door. After that screw the other side.
  • Page 14 353-373-383 INNER DISPLAY Changing The Door Swing Direction to Right Hand Remove the middle hinge cover and then Place the bottom door and rotate screw the screw on the side panel the middle hinge by 180º. After that, and assemble to the right side panel Screw to the right side on the middle sheet.
  • Page 15 353-373-383 INNER DISPLAY Removing and Chancing The Mainboard 1. Unscrew the screws which are fixing the main board cover. (Pic-1) CAUTION: The plug must be pulled out before the mainboard group is removed. Picture-1 2. Pull the mainboard slightly forward and disconnect all the connectors and then replace it.
  • Page 16 353-373-383 INNER DISPLAY Removing- Assembling LEDs and LED’s Covers SIDE LED (Optional-2) 1. Stick a tape to protect plastic. Insert a flat screwdriver into the gap and remove the cover. (Pic-1) Picture-1 2. Remove the led strip light from its 3.
  • Page 17 353-373-383 INNER DISPLAY Removing- Assembling LEDs and LED’s Covers 4. First, place the bottom point of the led light strip and then place towards other side.(Pic-4) Picture-4 5. Reassemble the led cover. (Pic-5) Picture-5 MARCH 2022...
  • Page 18 353-373-383 INNER DISPLAY Removing- Assembling LEDs and LED’s Covers TOP LED (Optional-2) 1. Remove the led cover by pulling forward and disconnect the connector. MARCH 2022...
  • Page 19 353-373-383 INNER DISPLAY Removing The Cooler Multi Flow 1. Remove the cooler glass 2. Remove the screw caps by using a flat shelves and the chiller. screwdriver and screw the screws. Picture-2 Picture-1 Flex the multi flow by holding the fan cover and remove it.
  • Page 20 353-373-383 INNER DISPLAY Removing The Cooler Multi Flow Fan Motor 1.Remove the fan cover by flexing the fan cover detail and then remove the fan motor by flexing the fan motor rubbers. (Pic-1/ Pic-2/Pic-3) Picture-1 Picture-2 Picture-3 2. Place the rubbers to the fan motor. After that, first place the bottom two details of the fan motor and place the top two details by pressing-flexing it.
  • Page 21 353-373-383 INNER DISPLAY Replacement of Refrigerator & Freezer Sensor Remove the sensor cover by pulling forward and disconnect sensor connector. Refrigerator Sensor Removing Freezer Sensor Remove the sensor cover with the help of a screwdriver and then disconnect the sensor connector.
  • Page 22 353-373-383 INNER DISPLAY Removing The Freezer Multi Flow Group 1. Displace the glass shelfs and baskets if there is. 2. Unscrew the screw fixing the multiflow group. 3. Removing the freezer bottom cover by flexing back side of it. 4. Remove the fan motor connector.
  • Page 23 353-373-383 INNER DISPLAY Removing Fin Evaporator Group 1.Remove the fin evaporator resistance 2. Displace the fin evaporator balanced by connectors from the sockets. (Pic-1) holding on both sides. (Pic-2) (blue connector) Fin Evap Res. Connector Picture-1 Picture-2 CAUTION: The fin evaporator should not be pulled upward-downward. Otherwise, the fin evaporator fixing plastics might be broken.
  • Page 24 353-373-383 INNER DISPLAY Removing The Freezer Fan Motor (Optional-1) . Remove the fan motor connector. (Pic-1) 2. Unscrew the fan motor fixing screws and displace the fan motor. (Pic-2) 3. Remove the propeller. (Pic-3) Picture-1 Picture-2 Picture-3 4. Displace the details on the fan FAN MOTOR motor box.
  • Page 25 353-373-383 INNER DISPLAY Removing The Freezer Fan Motor (Optiona-2) . Unscrew the air duct plastic. (Pic-1) 2. When removing the air duct plastic, pay attention to the connection of the fan socket cable. (Pic-2) 3. Remove the fan motor connector. (Pic-3)
  • Page 26 353-373-383 INNER DISPLAY Removing Fin Evaporator Sensor Displace the defrost sensor from its location. Cut the end of the sensor cable by using pliers/side cutting pliers. Connect the cut sensor cable ends to each other as separate clips. Immobilize the sensor resistance’s end its previous position by using cable bant.
  • Page 27 353-373-383 INNER DISPLAY Removing/Assembling The Reed Switch Picture-1 Picture-2 Take the reed switch out of its place with a screwdriver. (Picture-2) Then Disconnect the connectors of the Switch and remove it. (Picture-2) NOTE: Reed Switch is a very sensitive miniature electronic card. So during the assembly and disassembly be carefull not to damage it.
  • Page 28 353-373-383 INNER DISPLAY Removing/Assembling Display CAUTION: The plug must be pulled out before the display is removed. 1. The display can be removed with the help of a horizontal brace or a spatula. Avoid screwdriver etc. in display disassembly which will apply pressure to the liner plastic on single point.
  • Page 29 353-373-383 INNER DISPLAY CHANCING THE DOOR GASKET Pull the gasket towards starting from top right corner Slowly pull the rest of the gasket. Completely remove the gasket from door. Check the replacement gasket form Starting with upper right corner , press on the gasket until it fits to its place..
  • Page 30 353-373-383 INNER DISPLAY Barcode and Serial Number Explanation: Vestel refrigerator serial numbers are consist of 22 digits. DOOR COUNTRY DESIGN BRAND ENERGY CLASS VESTEL MODEL MONTH YEAR SERIAL NUMBER Cabinet Packaging Type Product Number of Type the party 1-Carton 2-Shrink...
