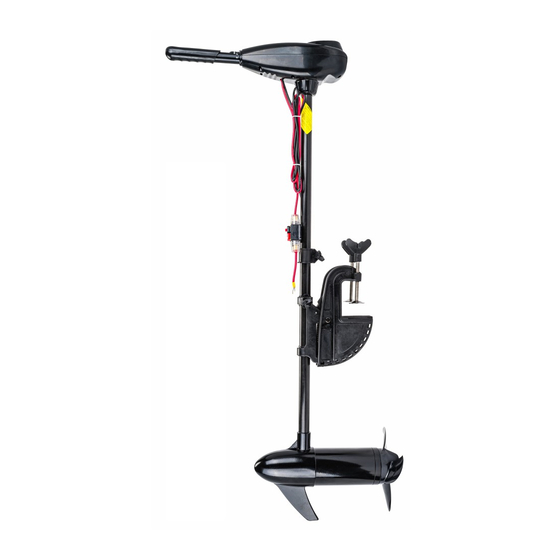

- Page 1 PM0751 USER MANUAL Outboard electric motor PM-ESZ-65W ORIGINAL MANUAL...
-
Page 2: Table Of Contents
Table of Contents WARNING / INFORMATION SYMBOLS ........................3 APPLICATION OF THE DEVICE ............................3 TECHNICAL DATA................................4 SAFETY RULES..............................4 GENERAL SAFETY TIPS ..............................4 Responsibilities of Persons Using Motor Boats ..............................5 PROTECTION AGAINST ELECTRIC SHOCK .......... -
Page 3: Warning / Information Symbols
Error! Source of reference not found. " APPLICATION OF THE DEVICE The POWERMAT outboard combustion engine is designed for amateur use on boats and pontoons designed for up to four people. It is not intended for professional or gainful work. -
Page 4: Technical Data
TECHNICAL DATA Model PM-ESZ-65W Supply voltage DC 12V Maximum current Maximum rotational speed 1700 / min Maximum power 750W Maximum thrust 65lbs Motor shaft length 92cm 32mm Motor shaft thickness 13.9mm The minimum thickness of the transom 84mm Maximum thickness of the transom... -
Page 5: Responsibilities Of Persons Using Motor Boats
need medical attention beyond first aid, the boats or other property are damaged, or the boat is completely damaged. Contact the local police station for help. ABOUT ABOUT BONUSES YOURSELF SERVING IĘ WITH CLOTHES OTOROWE The user (driver) is responsible for the proper and safe operation of the boat and for the safety of passengers and others. -
Page 6: In The Stationary Łódź
maximal; see the boat data plate for information. When in doubt check with your dealer or boat manufacturer. Perform safety checks and required maintenance. Systematically perform scheduled activities and make any repairs properly. IERUSABLE CLOTHES A rotating propeller, a moving boat, or any hard device attached to the boat can cause serious injury or death to people in the water. -
Page 7: General Thoughts
• The charger is for indoor use only. GENERAL THOUGHTS Before starting the engine for the first time, read this manual carefully to familiarize yourself with all its and) features and functions, safety requirements, and operation and maintenance. Before each cruise, the so-called daily inspection Never run the engine indoors. -
Page 8: Standard Practices And Procedures
explosion, electric shock, or engine starting unexpectedly. Always disconnect the cables from the battery before performing maintenance, service, installation, and engine disassembly. STANDARD PRACTICES AND PROCEDURES When installing or removing the motor, follow these guidelines: • Disconnect the engine from its battery. •... -
Page 9: Cable Routing
3. Do not reverse the polarity of the wire connections connected to the battery. CABLE ROUTING • Route the cables for the outboard on the opposite side of the boat from other boat cables. • Delicate electronics, such as a depth gauge, should not be connected directly to the main battery. Different battery systems require separate connection cables. -
Page 10: Description Of The Device
DESCRIPTION OF THE DEVICE DESCRIPTION No | Mark No | Mark Telescopic steering handle Battery charge indicator Control Panel Immersion depth adjustment knob Column tilt adjustment lever Rudder play adjustment Adjustable mounting bracket Mounting screws Engine body Engine column Propeller... -
Page 11: Preliminary Steps
PRELIMINARY STEPS Open the package, then take out the device. a) Remove the protective foil and transport protection (if any). b) Check if the package contains dismantled parts and keys. c) Check that the machine and accessories have not been damaged during transport. d) Retain the packaging. -
Page 12: Engine Depth Adjustment
3) Press here to release the spring, then you can turn the shaft to adjust the angle of the motor, or take it out of the water, after you finish adjusting, release it, the motor will stay constant direction. 4) Place the mount on the transom and tighten these two bolts to secure the engine to the deck of the boat. ENGINE DEPTH ADJUSTMENT Adjusting the depth of the motor allows you to increase its performance at different water depths. -
Page 13: Storage
IN THE EVENT OF AN ENGINE FLOOR A flooded engine must be immediately subjected to a detailed service inspection. For this purpose, contact the Powermat service center. PRE-LEAKAGE CONTROL Perform an engine health check before each journey. -
Page 14: Speed Control
SPEED CONTROL To start the engine from position 0, turn the handle to the desired gear to the left to move forward. To move backwards, turn the handle clockwise from position 0 to the desired gear. BATTERY CHARGE INDICATOR The battery indicator light (located on the front cover) gives you instant information on the battery charge status. The indicator light comes on when it is connected to the battery and remains on as long as the engine is connected to the battery. -
Page 15: Maintenance
MAINTENANCE HOW TO TAKE CARE OF THE OUTBOARD To keep the engine in optimal operating condition and to maintain its reliability, carry out regular checks and maintenance. Keep the engine in good condition for your own safety and that of passengers. Neglecting to inspect, maintain, and repair your engine can result in product damage, serious injury, or death. -
Page 16: Battery Inspection
OVERVIEW CUMULATOR The battery should be checked periodically to ensure proper engine operation. IMPORTANT: Read the safety and maintenance instructions that ship with the battery. 1. Make sure the battery is attached to the boat. 2. Make sure the battery cable terminals are clean, tight, and properly installed. For installation instructions, see Connecting the Battery. -
Page 17: Service
Repair of power tools should be performed only by qualified personnel using original spare parts. This ensures the safe use of the device. Address: Powermat service ul. Obrońców Poczty Gdańskiej 97 42-400 Zawiercie Tel. 32 670 39 68, internal 4 e-mail: serwis@powermat.pl... -
Page 18: Manufacturer's Data
You can also take the old equipment back to the collection point. More information on the collection points for used devices is available at the website: https://sklep.powermat.pl/webpage/pl/recycling.html MANUFACTURER'S DATA PH Powermat TMK Bijak Sp. Jawna Ul. Obrońców Poczty Gdańskiej 97 42-400 Zawiercie https://www.powermat.pl...
