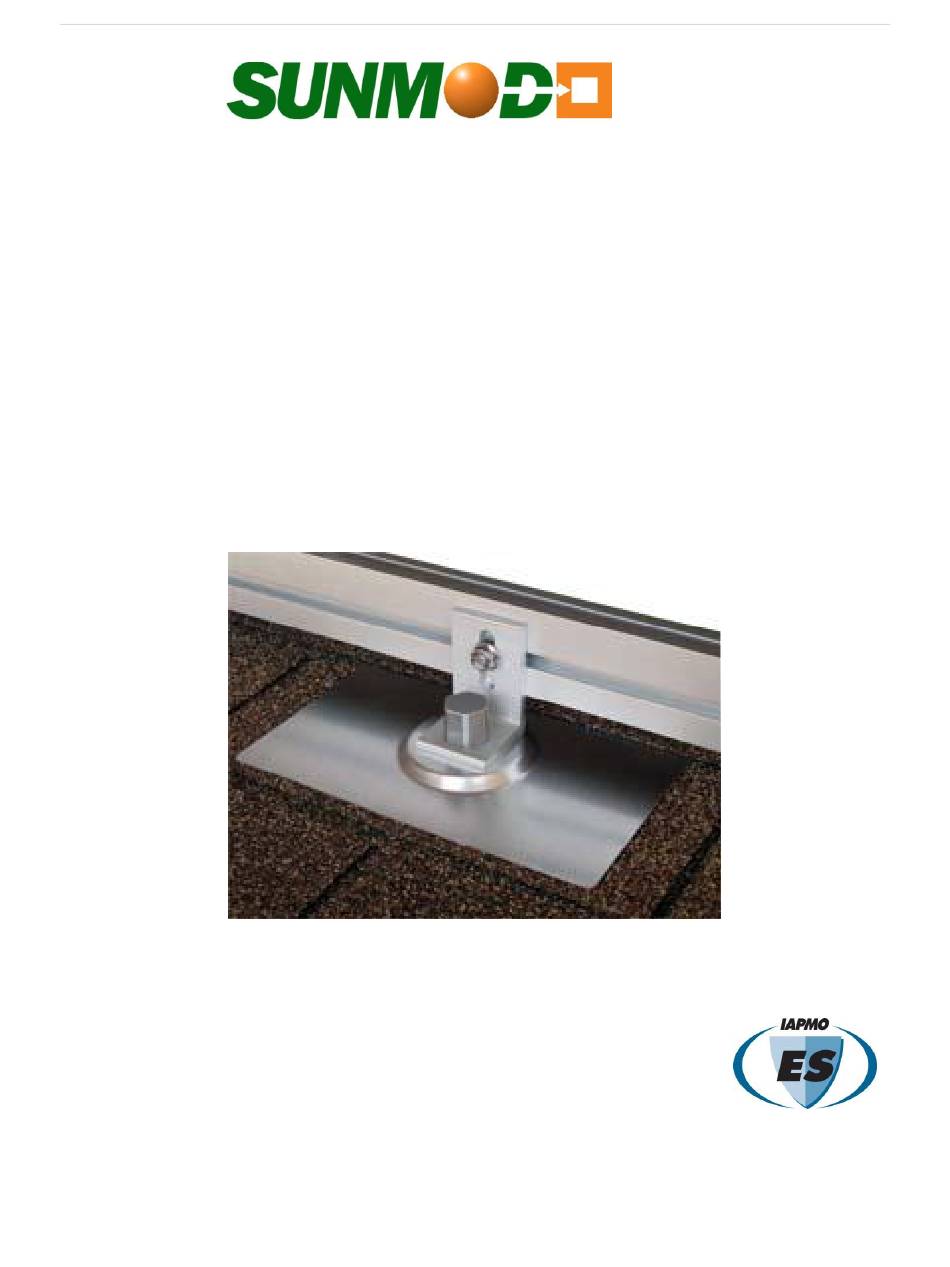

P a g e
| 1
Corp.
EZ Roof Mount with "L" foot,
Standoff and Variants
Patent #
US 8122648B
INSTALLATION INSTRUCTIONS
Please Read Carefully Before Installing
Products are tested and listed by IAPMO
To standards EC002-2011 and UL-441-96 Rain Test
Document Number 2012-K10068a
SunModo Corp., 2009-2012 C- All rights Reserved
EZ Roof Mount Installation © SunModo 2012
Document # 2012-K10068a
Advertisement
Table of Contents
Related Manuals for Sunmodo EZ
Summary of Contents for Sunmodo EZ
- Page 1 INSTALLATION INSTRUCTIONS Please Read Carefully Before Installing Products are tested and listed by IAPMO To standards EC002-2011 and UL-441-96 Rain Test Document Number 2012-K10068a SunModo Corp., 2009-2012 C- All rights Reserved EZ Roof Mount Installation © SunModo 2012 Document # 2012-K10068a...
- Page 2 Personal product line including the following: Safety Equipment including but not limited to: fall protection, eye EZ Roof mount with “L” foot, and hand protection, proper use available in silver or black of electrical cords, use of ladders, finish K10068-xxx and electrical hazard protection.
- Page 3 P a g e Part List for EZ Roof Mount Kit K10068-001 and K10068-XXX with “L” foot (AL rail not included in the kit): AL Shoe A20065 & Sealing 5/16X4 Stainless Steel Lag Bolt AL Hex Cap Washer C10006-001 B15015-004 A20066-001 and –...
- Page 4 Torque wrench with 9/16 and 1 1/16 sockets. (Lag bolt and Hex 3/8 Socket wrench with 9/16 deep cap) socket for lag screws and 7/16 deep socket for mid and end clamps. EZ Roof Mount Installation © SunModo 2012 Document # 2012-K10068a...
- Page 5 P a g e Installation of the EZ Roof Mount Kit K10068-xxx 1. From the marked location, move 3. Make sure the washer on the threaded shank is positioned down the roof 2.25 inches from the bottom of the shingle, and correctly.
- Page 6 Shoe Use roofer bar to lift roof shingle, slide the flashing under shingle, and insert the flashing over the threaded shank. 5. Then the Rail can be mounted to the “L” foot as shown below. EZ Roof Mount Installation © SunModo 2012 Document # 2012-K10068a...
- Page 7 SunModo’s Written Installation instructions, or is not used for the purpose for which it is designed, or the product has been modified, Installation of the EZ Roof Mount with repaired, or reworked not authorized by C Bracket Kit K12005-001 SunModo.
