Sunmodo SMR Manual

Pitched roof pv rack mounting system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SMR Pitched Roof System
SunModo PV Rack Mounting System
UL2703 Compliant
1 of 48

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMR and is the answer not in the manual?

Questions and answers

Related Manuals for Sunmodo SMR

Summary of Contents for Sunmodo SMR

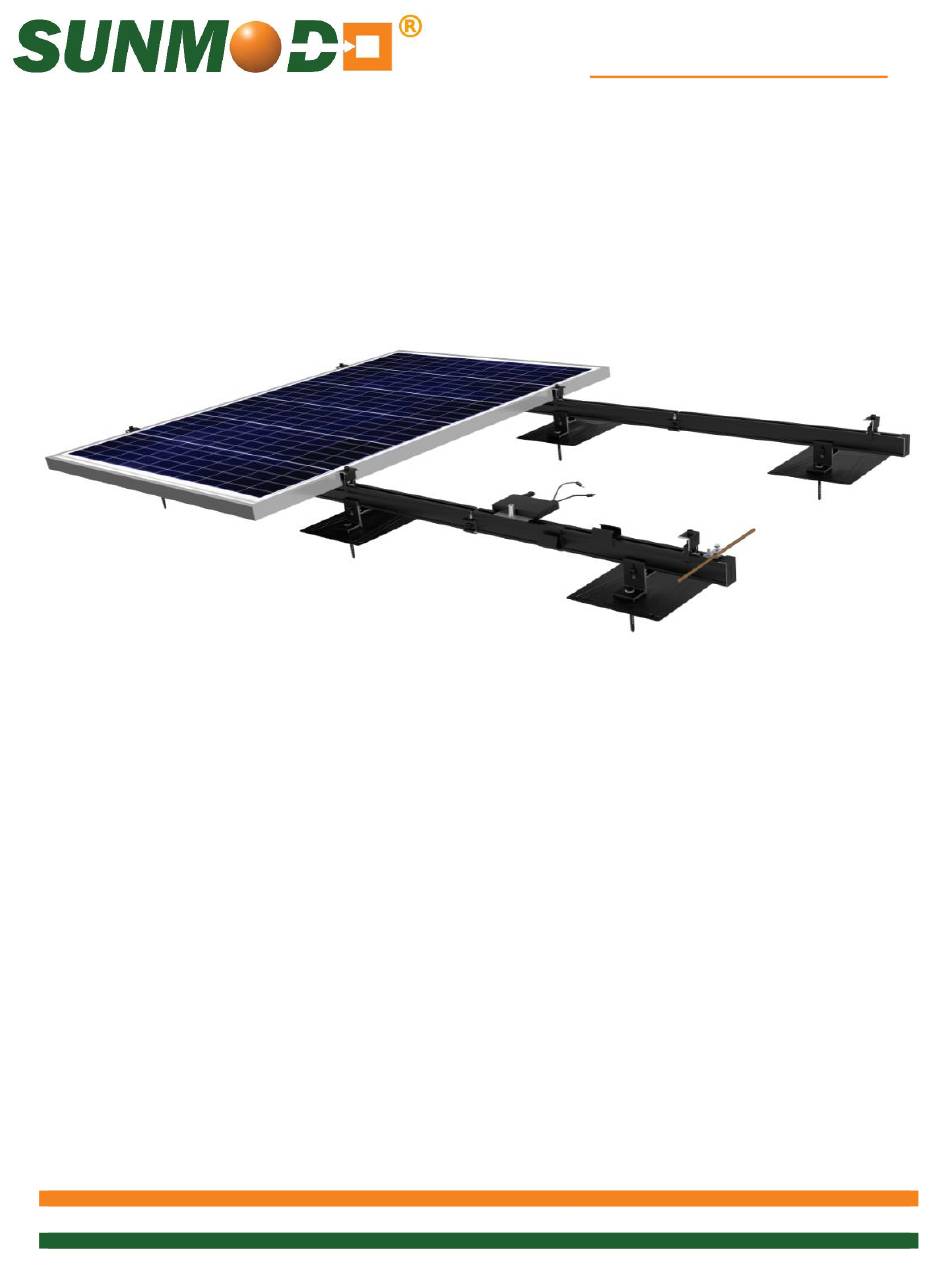

  • Page 1 SMR Pitched Roof System SunModo PV Rack Mounting System UL2703 Compliant 1 of 48...

  • Page 2: Table Of Contents

    Product is tested to and recognized to UL 2703 standards for safety grounding and bonding equipment and meets UL 1703 fire standards. SunModo PV Rack Mount System can be used to mount photovoltaic (PV) panels in a wide variety of locations. All installations shall be in accordance with NEC requirements in the USA.
  • Page 3 SMR Pitched Roof System Pilot Hole ........................... 25 Flashing (Optional) Installation ................... 25 UltraMount Roof Attachment ....................25 Lag Screw Installation ......................26 Deck Screws Installation ....................26 L-Foot Assembly ........................ 26 L-Foot Connection......................27 Rail to L-Foot Connection....................27 NanoMount Installation Instructions: ....................
  • Page 4 SMR Splice ........................37 Gap Between Rails ......................37 Bonding ..........................37 SMR Rail and Splice Use Cases....................38 SMR Rail and Splice Use Cases (Continued): ................39 Portrait Panel Configuration: ......................40 Minimum Panel Height ....................... 41 End Clamp Location ......................41 SMR End Clamp ........................
  • Page 5 SMR Pitched Roof System SunModo Corporation: Vancouver, Washington Document: D10210-V003.3.3 www.SunModo.com Ph.: 360-844-0048 ©2021 – SunModo Corp. info@sunmodo.com 5 of 48...

  • Page 6: Installer Responsibility

    It is not possible for SunModo to be aware of all the possible job site situations that could cause an unsafe condition to exist. The installer of the roof system is responsible for reading these instructions and determining the safest way to install the roof system.

  • Page 7: Sunmodo Racking Self-Bonding System

    The patented SMR self-bonding system is for use with PV modules that have a maximum series fuse rating of 30A. This means the maximum number of PV modules in the SMR system is limited by the system voltage, so if a system has multiple inverters, the SunModo racking system can theoretically go on forever.

  • Page 8: Smr Roof Mount System Components

    SMR Pitched Roof System SMR Roof Mount System Components Primary Materials SoloFlash Kit includes: • 9X12 Flashing K50538-XXX • 3” L-Foot • 4” Lag Screw • Seal Washer K50056-XX1 UltraMount Kit includes: Rafter Mount • 3” L-Foot With Lag screw •...
  • Page 9 SMR Pitched Roof System K50053-BK1 Nano Rafter Mount With lag screw K50053-BK3 Nano Deck Mount With Self-tapping screws Rafter Kit includes: K10466-005 • 5” Mounting System 1X Rafter Stanchion • 1X M8 Hardware • K10466-007 1X Flashing 7” Mounting System 1”...
  • Page 10 SMR Pitched Roof System EZ 1” Mini Standing Seam Roof Mounting Kit includes: K50200-002 • 1” Standing Seam Clamp EZ 1” Mini Standing • M10 Set Screw Seam Roof Mounting • M10 Flange Bolt EZ 1” Mini Standing Seam Roof...
  • Page 11 SMR Pitched Roof System K10418-003 SMR End Clamp K10418-BK3 K10417-003 SMR Mid Clamp K10417-BK3 For single-use only Shared Rail SMR End Clamp K10420-XXX K10419-XXX Shared Rail SMR Mid Clamp For single-use only SMR100 Rail A20422-XXX 11 of 48...
  • Page 12 SMR Pitched Roof System SMR200 Rail A20453-XXX K10421-002 SMR100 Structural Rail Splice For single-use only K10462-002 SMR200 Structural Rail Splice For single-use only SMR100 L-Foot Adaptor K10433-XXX K10434-XXX SMR200 L-Foot Adaptor Top Mount Cable Clip A20162-001 12 of 48...
  • Page 13 SMR Pitched Roof System Top Mount Cable Clip A20408-XXX A20427-XXX SMR100 Side Mount Cable Clip A20434-XXX SMR200 A20440-XX1 SMR100 Rail End Cover A20440-XX2 SMR200 Microinverter Mounting Kit K50052-003 Grounding Lug Kit K10179-XXX May be repositioned until torqued to final For single-use only value.

  • Page 14: List Of Compliant Pv Modules

    SMR Pitched Roof System List of Compliant PV Modules UL 2703 Qualified Modules for use with SunModo PV Racking Systems Evaluated PV Modules Module Model numbers manufacturer Aptos DNA-144-BF26-xxxW, DNA-144-MF26-xxxW Astronergy CHSM6612M-xxx, CHSM6612M/HV-xxx AXITec Solar AC-xxxP/60S, AC-xxxMH/120S, AC-xxxMH/120V, AC-xxxMH/144S, AC-xxxMH/144V...
  • Page 15 SMR Pitched Roof System LGxxxA1C-A6, LGxxxM1C-A6, LGxxxM1K-A6, LGxxxN1C-A6, LGxxxN1C-E6, LGxxxN1C-G4, LGxxxN1C-N5, LGxxxN1K-A6, LGxxxN1K-B6, LGxxxN1K-E6, LGxxxN1K-G4, LGxxxN1K-V5, LGxxxN1T-G4, LGxxxN2T-E6, LGxxxN2W-A5, LGxxxN2W-B3, LGxxxN2W-E6, LGxxxN2W-G4, LGxxxN3K-A6, LGxxxQAC-A6, LGxxxQAK-A6, LGxxxQ1C-A6, LGxxxQ1C-V5, LGxxxQ1K-A6, LGxxxQ1K-V5, LGxxxS1C-G4, LGxxxS2W-G4 LONGi LR6-60PE-BOW-xxxW, LR6-60HPH-BOB-xxxW, LR672HPH-SOW-xxxW Mission Solar MSExxxSQ5T, MSExxxSQ8T, MSExxxSO9J, MSExxxSQ9S, MSExxxSR8T,...
  • Page 16 SMR Pitched Roof System SunPower SPR-xxxE-WHT-D, SPR-Axxx, SPR-E19-xxx, SPR-E19-xxx-COM, SPR-E19-xxx, SPR-E20-xxx, SPR-E20-xxx, SPR-E20-xxx-COM, SPR-E20-xxx-D-AC, SPR-P17-xxx- COM, SPR-X20-xxx-BLK, SPR-X20-xxx-BLK-B-AC, SPR-X20-xxx-C-AC, SPR-X21- xxx-BLK, SPR-X21-xxx-BLK-D-AC, SPR-X21-xxx, SPR-X21-xxx-COM, SPR-X21-xxx- D-AC, SPR-X21-xxx-BLK, SPR-X21-xxx-BLK-D-AC, SPR-X21-xxx-BLK, SPR-X21- xxx-COM, SPR-X22-xxx, SPR-X22-xxx-COM, SPR-X22-xxx-D-AC, SPR-X22-xxx-D- Trina TSM-xxx PC/PA05, TSM-DE15M(II), TSM-DEG15MC.20(II), TSM-DE15H(II), TSM- DEG15HC.20(II), TSM-DE15V(II), TSM-DEG15VC.20(II), TSM-DE19, TSM-...

  • Page 17: Fault Current Path Diagram

    SMR Pitched Roof System Fault Current Path Diagram Items are listed in the fault current path in order from the PV Panel to the Grounding Lug: 1. PV Panel 2. Mid Clamp Kit 3. SMR Rail Splice 4. SMR Rail 5.

  • Page 18: Tools Required For Installation

    SMR Pitched Roof System Tools Required for Installation Electric Drill or Impact Driver. Note that the use of an impact driver is strongly discouraged for all stainless nut and bolt hardware. Set impact driver to its lowest torque setting. 6mm Hex Drive Bit Adjustable Torque Wrench, 0 –...
  • Page 19 SMR Pitched Roof System Tile Hole Saw Bit, 1-1/2” diamter Dow Great Stuff FireBlock Spray Foam Saws for cutting aluminum rails as necessary 19 of 48...

  • Page 20: Torque Values

    SMR Pitched Roof System Torque Values These values must be adhered to, both for mechanical strength and to insure the performance of the integral grounding and bonding features. It is required that a torque wrench be used to measure the bolt torque during final assembly, and it is recommended that anti-seize compound be applied to the screw threads.

  • Page 21: Lag Pull-Out Capacities

    SMR Pitched Roof System Lag Pull-Out Capacities: Sources: American Wood Council, NDS 2005, Table 11.2 A, 11.3.2 A Notes: Specific 5/16" Shaft 5/16" Shaft Lag pull-out (withdrawal) capacities (lbs.) in typical lumber: Gravity per 1" thrd depth per 2-1/2" thrd depth...

  • Page 22: Soloflash Installation Instructions

    SMR Pitched Roof System SoloFlash Installation Instructions: Pilot Hole From the desired rafter location, move down the roof 2-1/4” [57mm] from the bottom of the shingle, and drill the pilot hole for the Lag Bolt with a 7/32” [6mm] drill bit. For maximum strength, the hole should not be more than 3”...

  • Page 23: Gasket Compression

    SMR Pitched Roof System Gasket Compression Incorrect: Under compressed EPDM Sealing Gasket Incorrect: Over compression of EPDM Sealing Gasket Correct: Compression of EPDM Sealing Gasket 23 of 48...

  • Page 24: L-Foot Adaptor Installation Instructions

    SMR Pitched Roof System L-Foot Adaptor Installation Instructions: L-Foot Adaptor Loosely install the L-Foot Adaptor to the L-Foot using the M8 Bolt provided. L-Foot Connection Loosely install the L-Foot Adaptor to the L-Foot using the M8 Bolt provided. Install the Rail onto the L-Foot and L-Foot Adaptor.

  • Page 25: Ultramount Installation Instructions

    SMR Pitched Roof System UltraMount Installation Instructions: Pilot Hole From the desired rafter location, move down the roof 2-1/4” [57mm] from the bottom of the shingle, and drill the pilot hole for the Lag Bolt with a 7/32” [6mm] drill bit. For maximum strength, the hole should not be more than 3”...

  • Page 26: Lag Screw Installation

    SMR Pitched Roof System Lag Screw Installation Attach the UltraMount Base to the roof by installing the 5/16” [M8] Lag Screw. Use either a 6mm Hex Driver or a 1/2" Hex Socket Driver. Do not over tighten. Deck Screws Installation Attach the UltraMount Base to the roof by installing the four Self-tapping Screws.

  • Page 27: L-Foot Connection

    SMR Pitched Roof System L-Foot Connection Loosely install the L-Foot Adaptor to the L-Foot using the M8 Bolt provided. Install the Rail onto the L-Foot and L-Foot Adaptor. Confirm that the hooks on the L-Foot Adaptor are fully engaged with the hooks on the side of the Rail.

  • Page 28: Nanomount Installation Instructions

    SMR Pitched Roof System NanoMount Installation Instructions: Nano Rafter Mount Sealant Application Apply a circular bead of composite roof sealant around the bottom of the NanoMount. Apply additional sealant to the roof if needed to seal gaps between shingles or to smooth uneven surfaces.

  • Page 29: Nano Deck Mount Sealant Application

    SMR Pitched Roof System Nano Deck Mount Sealant Application Apply a circular bead of composite roof sealant around the bottom of the NanoMount. Apply additional sealant to the roof if needed to seal gaps between shingles or to smooth uneven surfaces.

  • Page 30: Toptile Installation Instructions

    SMR Pitched Roof System TopTile Installation Instructions: Pilot Hole Locate and mark the desired location of the TopTile Mount. Using a hand drill guide and a 1-1/2” tile hole saw, drill a hole into the tile. Remove tile dust from around the hole in the tile and underlayment.

  • Page 31: Toptile "Correct" Deck Installation

    SMR Pitched Roof System TopTile “Correct” Deck Installation The 3 wood screw stanchion holes are above the tile and below the collar of the EPDM cover on the Flashing. Note: Repositioning the stanchion higher or lower along the tile will increase or decrease the position of the 3 wood screw stanchion holes.

  • Page 32: 1" Spacer Assembly

    SMR Pitched Roof System 1” Spacer Assembly If required add a 1” Spacer to the bottom of the stanchion. Remove the EPDM Washer, install the 1” Spacer, and replace the EPDM Washer with the rubber gasket facing down. Deck Mount Foam Application...

  • Page 33: Flashing Installation

    SMR Pitched Roof System Flashing Installation For curved tiled roofs hand form the flashing to match the tile contour. Install flashing over Stanchion and under the edge of the tile located above. L-Foot Attachment Install the L-Foot with its M8 Bolt onto the top of the stanchion;...

  • Page 34: Standing Seam Clamp Installation Instructions

    SMR Pitched Roof System Standing Seam Clamp Installation Instructions: 1” Clamp Installation Select the correct EZ Standing Seam Roof Mounting System to fit your roof. Snap a line or use a laser to line up the clamps on the roof panel seams.

  • Page 35: 2" Clamp Installation

    SMR Pitched Roof System 2” Clamp Installation Select the correct EZ Standing Seam Roof Mounting System to fit your roof. Snap a line or use a laser to line up the clamps on the roof panel seams. Assemble the 2” Clamp in place by sliding the two halves together.

  • Page 36: Rail Splice Installation Instructions

    SMR Pitched Roof System Rail Splice Installation Instructions: SMR Splice The SMR Rail Splice has been designed to be both a structural and bonding rail splice. SMR Splice to First Rail Insert the SMR Splice into the first Rail. SMR Splice to Second Rail Insert the SMR Splice into the second Rail until both Rails are stopped by the M8 Bolt.

  • Page 37: Thermal Break Installation Instructions

    (WEEBBNDJMP8.0) to insure continuous bonding across the thermal break. Gap Between Rails Insert the SMR Splice into the Rails with a 1-1/4 inch gap between Rails. Modules cannot be installed over a thermal break. The row of continuous modules must end before the thermal break and a new row must start after the thermal break.

  • Page 38: Smr Rail And Splice Use Cases

    Rail shall be continuous and not spliced over a minimum of 2 supports except for approved span lengths per SunModo’s span charts. In these cases it is acceptable to use a minimum of 1 support per rail section as long as all supports are located at a minimum of 48-inches on center and the first and last rail sections have a minimum of 2 supports.

  • Page 39: Smr Rail And Splice Use Cases (Continued)

    • Rails installed with (3) or more Roof Attachments (2 or more rail spans): SMR Rail Splice where required shall not be installed within a distance of L/8 from any Roof Attachment, where “L” is the rail span. 39 of 48...

  • Page 40: Portrait Panel Configuration

    SMR Pitched Roof System Portrait Panel Configuration: With a full range of components, the SMR Pitched Roof System can be configured in an endless variety of designs. The system is IBC compliant for roof waterproofing, wind and wind driven rain tested, UL 1703 compliant for Class-A Fire Rated (Type 1 and 2) PV Modules and UL 2703 compliant for electrical bonding tested by ETL.

  • Page 41: Minimum Panel Height

    SMR Pitched Roof System Minimum Panel Height Minimum leading-edge height to meet the UL1703 PV module fire standard is 3.0” [76.2mm]. 3.0” [76.2mm] minimum from bottom of PV module frame to the roof covering End Clamp Location There must be a minimum of 1.5” [38.1mm] of Rail extending beyond the PV panel frame.

  • Page 42: Smr Mid Clamp

    SMR Pitched Roof System SMR Mid Clamp The patented SMR self-bonding system is for use with PV modules that have a maximum series fuse rating of 30A. SMR Mid Clamp Attachment Install the Mid Clamp on the Rail between PV panels.

  • Page 43: Landscape Panel Configuration

    SMR Pitched Roof System Landscape Panel Configuration: With a full range of components, the SMR Pitched Roof System can be configured in an endless variety of designs. The system is IBC compliant for roof waterproofing, wind and wind driven rain tested, UL 1703 compliant for Class-A Fire Rated (Type 1 and 2) PV Modules and UL 2703 compliant for electrical bonding tested by ETL.

  • Page 44: Shared Rail Roof Attachment

    SMR Pitched Roof System Shared Rail Roof Attachment Adjust the L-Foot up or down the roof slope to position Rail. Tighten the L-Foot using a 6mm hex driver and torque to 13Nm (10 ft-lbs). Shared Rail End Clamp Attachment Install the End Clamp on the Rail at the ends of the PV panel array.

  • Page 45: Ground Wire Attachment

    SMR Pitched Roof System Ground Wire Attachment The Ground Lug is intended for a single use after final torque values are reached and is designed to terminate or pass thru: #6 thru #12 AWG cable, either solid or stranded, including #6 thru #12 THHN or THWN jacketed cable.

  • Page 46: Top Mount Cable Clip Installation

    SMR Pitched Roof System Top Mount Cable Clip Installation Attach the Top Mount Cable Clip to the top of the Rail and space as needed. Top Mount Cable Clip Installation Attach the Top Mount Cable Clip to the top of the Rail and space as needed.

  • Page 47: Rail End Cap Attachment

    SMR Pitched Roof System Rail End Cap Attachment End Caps can be attached to the end of the Rail as shown. Microinverter Mounting Kit Installation Install the T-Bolt into the Rail in the desired location. Add a lock washer between the Rail and microinverter mounting bracket.
  • Page 48 SMR Pitched Roof System www.sunmodo.com for current warranty documents and information. SunModo Corporation Ph: 360-844-0048 48 of 48...
