Summary of Contents for MICLON Cybertrack 100

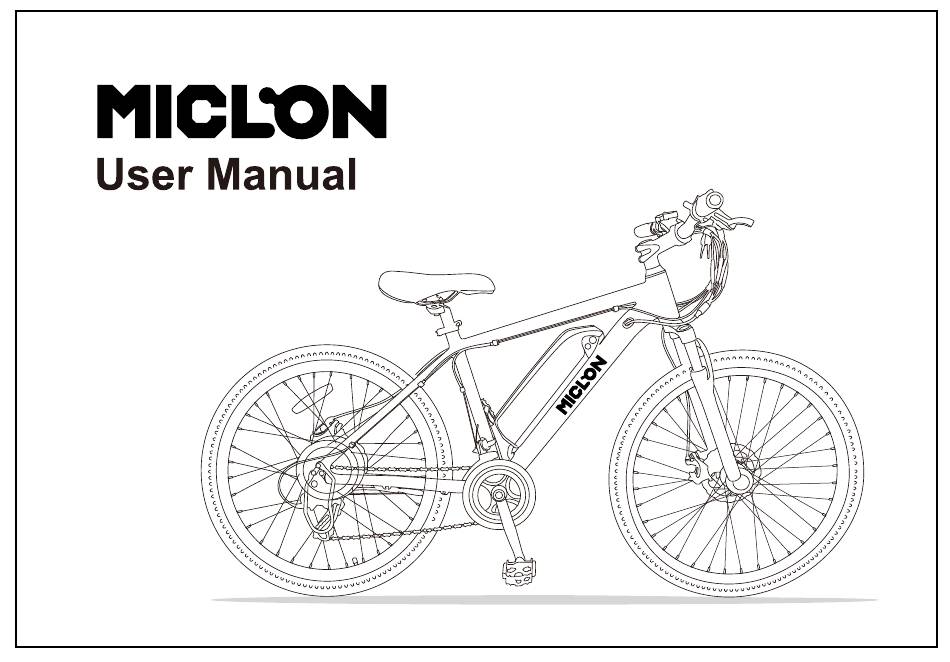

- Page 1 E-Bike Model:Cybertrack 100...
- Page 2 Thank you for your purchase of the MICLON Cybertrack 100 E-Bike! MICLON Cybertrack 100 fuses a traditional pedal bike with all-electric power to create a ride unlike anything else. With the MICLON Cybertrack 100 E-Bike, hills seem flattered. Your city feels smaller. Frustrating commutes become fun-filled joyrides. So charge up your new E-Bike and recharge your love of riding.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Section 1. General Information .......3 Section 5. Safe Riding Techniques & Tips ..... 15 1.1 What’s In the Box? ........... 5.1 Before Your First Ride ........5.2 Routine Bike Inspections ........ 1.2 Product Overview ..........5.3 Semi-Annual Bike Mechanic Inspections .. -
Page 4: Section 1. General Information
Section 1. General Information 1.1 What’s In the Box? 1×Bike frame with the rear wheel 1×Wheel 1×Saddle 2×Pedal 1×Disc brake 1×Quick release 2×Reflector 1×Rear derailleur protecting rack 1×Charger 1×Battery 1× Wheel 1× Bike frame with the rear wheel 1× Saddle 6×ScrewM5*8.5 2×ScrewM5*10 5×Tool... -
Page 5: Product Overview
1.2 Product Overview E-Bike display Gear lever Brake Handle Charging port Battery box ON/OFF switch Saddle Motor Front fork Disc brake Pedal Quick release Rear derailleur protecting rack - 04 -... -
Page 6: Section 2. Installation Steps
● Before operating your E-Bike, please read all instructions in the manual and follow the steps and descriptions carefully. This manual will guide you through the installation, functions, operation, and proper maintenance of your MICLON Cybertrack 100 E-Bike. ● Before assembling, check that all parts are complete and in good condition. If you have any questions or cannot find the information you need in the manual, please contact Support@MICLONbike.com. - Page 7 Step 2. Install the handlebar ● Loosen the 4 bolts on the stem to remove the stem cover ● Rotate the handlebar so that it’s 90 degrees from the wheel and frame ● Put on the stem cover and tighten the 4 screws in order 90°...
- Page 8 Step 4. Assemble and install the front wheel ● Take out the wheel and the quick-release skewer. Note that there are two cone springs on the quick-release skewer. ● Open the lever and unscrew the thumb nut from the quick release. ●...
- Page 9 Step 5. Install rear derailleur protecting rack ● Take out the 2 Bolts M5*10 from the box ● Align the rear derailleur protecting rack to the screw holes ① ② of the rear wheel, and then fasten the 2 Bolts Step 6.
- Page 10 Step 7. Install the saddle ● Open the clamp under the seat post. Pull the seat up or push it down to adjust the height ● Close the clamp to secure the seat in place. Do not raise the saddle higher than the safety line Safety Line - 09 -...
- Page 11 Step 8. Install the battery ● Insert the battery into the middle frame. Turn the key to the locked position ● To unlock the battery, insert the key, and turn it to the unlock position to pull the battery out Check whether the battery switch is turned on every time you ride OFF/ON Step 9.
-
Page 12: Section 3. Charging The Battery
For your convenience, the battery can also be charged while detached from the MICLON Cybertrack 100 E-Bike. The battery has a non-discharge function during charging, that is, the electric bike cannot be started during the charging process. Therefore, the meter cannot be used during the charging. - Page 13 Check that it is securely connected to the wall and to the bike. ● Use only the charger provided with your Cybertrack 100 E-Bike. If you have lost or misplaced your charger, contact customer support to obtain a replacement.
-
Page 14: Battery Security Lock/Removal
3.2 Battery Security Lock/Removal For your convenience and security, the MICLON Cybertrack 100 E-Bike's battery is removable and locked to the frame as needed Step 1. To unlock the battery, insert the key, and turn it to the unlock position to pull the battery out. -
Page 15: How To Ride
Open the clamp under the seat post. Pull the seat up or push it down to adjust the height. Check to make sure the seat post is fully inserted into the frame and the head of the seat is parallel with the frame. Lastly, close the clamp to secure the seat in place. -
Page 16: Buttons Information
4.3 Buttons Information The MICLON Cybertrack 100 E-Bike’s display features several different elements. : Quick-press to switch modes from high to low speed. Battery level Motor power : Press and hold for ~2 seconds to turn the E-Bike on/off. Speed mode Speed display : Quick-press to switch between speed modes from 0 to 5 speed. -
Page 17: Before Your First Ride
NOTE: ● Make sure your feet are always on the pedals. Make sure both hands are on the bike handle at all times when riding. Taking your feet off the pedals while riding is dangerous. ● Do not use the E-Bike to perform dangerous maneuvers. Failure to exercise good judgment and heed the above warnings increases the risk of serious injury or, in very rare cases, death. -
Page 18: Section 6. Maintenance
Section 6. Maintenance Do not perform any kind of maintenance while the E-Bike is powered on or charging. Before each ride, check whether the quick-release screws are loose and whether the brakes are effective. Check the handlebars and screws once a week, and charge at least once in three months. 6.1 Battery Maintenance ●... -
Page 19: Storage
The substances contained inside the battery present chemical risks to the environment. The recommended disposal for any MICLON product at its end-of-life is to dispose of the entire unit at or through an e-waste recycling center, program, or facility. -
Page 20: Section 7. Specifications
Section 7. Specifications Parameters ITEM Model Name Cybertrack 100 Net Weight 46.3 lb. / 21kg Product Dimensions 67x24x39 in. / 1700x620x1000 mm Package Dimensions 52.7x9x28 in. / 1340 x 240 x 710 mm Max. Incline 10° (rider weighs 100kg) Max. Capacity 308 lb. -
Page 21: One-Year Limited Hardware Warranty
MICLON offers a warranty of Frame for 12 months. As per any problem regarding manufacturing process and material defects, which includes product breakages during the riding (except riding improperly). MICLON offers 12 months Battery and Motor Warranty. But this warranty does not cover the faulty operation or failure to properly follow the manufacturer's instructions.
Need help?
Do you have a question about the Cybertrack 100 and is the answer not in the manual?
Questions and answers
had a flat so i replace tire and innertube now is showing code 30 why and how do i fix it ?????
The MICLON Cybertrack 100 shows error code 30 due to a connection error between the LCD screen and the controller. This may have occurred during the tire and inner tube replacement if the cable connecting the components was loosened or damaged.
How to fix it:
1. Inspect the cable connection between the LCD screen and the controller.
2. Ensure the cable is securely plugged in and not damaged.
3. If the cable is damaged, it may need to be replaced.
