MICLON Macmission 100 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Electric Bike
Model:Macmission 100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Macmission 100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MICLON Macmission 100

Summary of Contents for MICLON Macmission 100

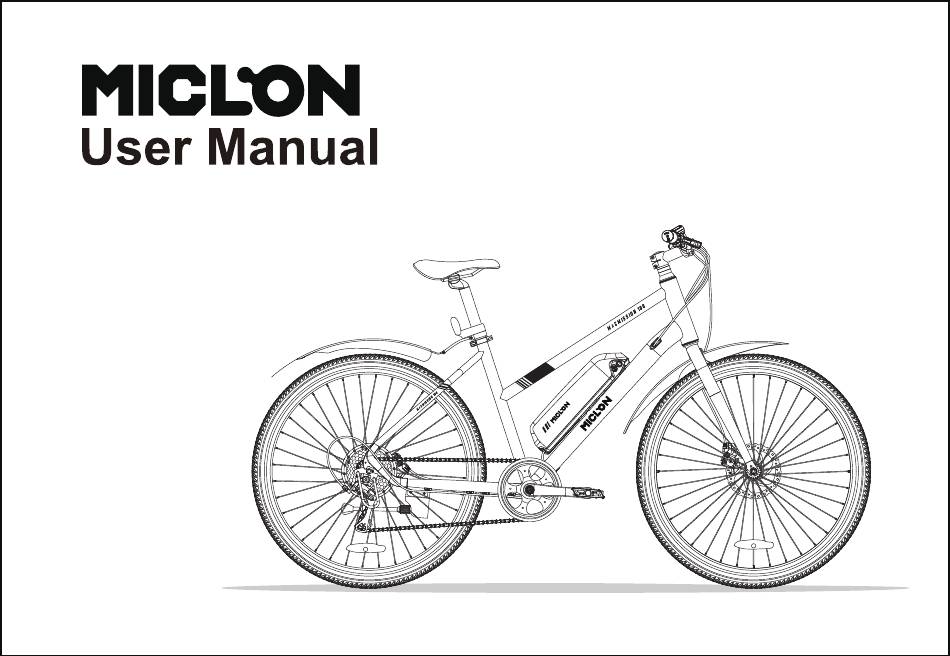

  • Page 1 Electric Bike Model:Macmission 100...
  • Page 2 Thank you for choosing MICLON. Thank you for purchasing MICLON Macmission 100. This Manual contains both procedural and conceptual information to guide you through proper installation, optimization, riding, and maintenance. For your safety, please read and understand every instruction in the manual before using it.

  • Page 3: Table Of Contents

    Contents 1.PRODUCT OVERVIEW ............................... 2.PACKAGE CONTENTS ............................... 3.HOW TO INSTALL ............................... 4.HOW TO CHARGE THE BATTERY ..........................5.RIDING MODE ................................6.DISPLAY AND BUTTONS ............................7.FOR YOUR SAFETY ..............................8.BATTERY MAINTENANCE ............................9.CLEANING .................................. 10.STORAGE ................................. 11.DISPOSAL AT END-OF-LIFE ............................. 12.SPECIFICATIONS ..............................13.WARRANTY ................................

  • Page 4: Product Overview

    1. PRODUCT OVERVIEW E-Bike display Handle Gear lever Brake Saddle On/Off switch Battery Front fork Quick-release Charging port Disc brake Pedal Rear derailleur Motor protector - 03 -...

  • Page 5: Package Contents

    2. PACKAGE CONTENTS 1× Bike frame + rear wheel 1× Wheel 1× Saddle 2× Pedal 1× Disc brake 1× Quick release 2× Reflector 1× Charger 6× Screw M5*8.5 3× Hex key 2×Wrench 1× Greeting card 1× User manual 1× Screwdriver 1×...

  • Page 6: How To Install

    3. HOW TO INSTALL Before Installation Please read this user manual thoroughly and completely, and comply with the instructions it contains. Please make sure all parts are intact and in good condition. DO NOT install the battery or start the meter before the bike is completely installed. If you have any questions or can not find the information you need in the user manual, please contact us at Support@miclonbikes.com Step 1 Adjust the stem Turn the stem of the handlebar 180 degrees to let it face forward.
  • Page 7 Step 2 Install the handlebar Unscrew the 4 bolts from the stem cover with the Allen key. Rotate the handlebar and make it perpendicular to the bike frame. Hold the stem cover tightly against the handlebar and install the 4 bolts back to the stem. 90°...
  • Page 8 Step 4 Install the front wheel Take out the front wheel and the quick release. Open the lever and unscrew the nut from the quick release. Insert the quick release skewer into the wheel and make sure the small end of the two cone spring faces inward. Keep the lever open and fasten the nut a little bit leaving enough room for the front fork dropouts.
  • Page 9 Step 5. Install pedals Identify the correct side by finding the marked ‘R’ and ‘L’ at the pedals. Tighten the pedal with hands at first. Tighten the right pedal clockwise and tighten the left counterclockwise. Completely tighten the pedals with a pedal wrench or an open-end wrench. When installing, L to L, R to R - 08 -...
  • Page 10 Step 6. Install the saddle Open the clamp under the seat. Pull the seat up or push it down to adjust the height. Close the clamp to secure the seat in place. Do not raise the saddle higher than the safety line. Safety Line - 09 -...
  • Page 11 Step 7. Install the battery Insert the battery into the middle frame and lock it with the battery key. Insert the battery key and turn it to the unlock position before pulling the battery out. Ensure the battery switch is on for boosting your ride. OFF/ON Step 8.
  • Page 12 Step 9. Install rear reflector Take out the red reflector and 1× screw of M5*10. Install the reflector on the saddle tube. Tighten the screws with the screwdriver and complete rear reflector installation. - 11 -...

  • Page 13: How To Charge The Battery

    Step 3. The power adapter’s light will turn green from red after about 3-hour charging. Disconnect all cables once charging is completed. For your convenience, the battery can also be charged while detached from the MICLON Macmission 100 E-Bike. Slide-Out Charging...
  • Page 14 The charging time is 3 hours approx. Long-time charging may deduct battery life and performance. Use the charger provided with your Macmission 100 E-Bike only. If the official charger is lost or damaged, please contact customer support to obtain a replacement.

  • Page 15: Riding Mode

    5. RIDING MODES Pure E-Bike - Turn on LCD smart display and switch the speed Speed Modes Pure Electric Bike Assisted Bike modes from 1~5 by rotating the throttle. Pedal-assist Bike - Turn on LCD smart display and switch the ×...

  • Page 16: Display And Buttons

    6. DISPLAY AND BUTTONS Display information Battery level Battery level: This icon indicates the battery remainder. Speed display: This icon indicates the current speed in mph. SPEED TRIP ODO Motor power: This icon indicates the current motor power. Speed display OFF/ON Speed mode: This icon indicates the current speed level.

  • Page 17: For Your Safety

    7. FOR YOUR SAFETY Read the following information thoroughly and carefully for having a safe riding experience. Before riding, always check to make sure your brakes can Read the following information thoroughly and carefully for having a safe riding experience. Before riding, always check to make sure your brakes can Read the following information thoroughly and carefully for having a safe riding experience.

  • Page 18: Battery Maintenance

    DO NOT use the E-Bike to perform dangerous maneuvers. Failure to exercise good judgment and heed the above warnings increases the risk of DO NOT use the E-Bike to perform dangerous maneuvers. Failure to exercise good judgment and heed the above warnings increases the risk of DO NOT use the E-Bike to perform dangerous maneuvers.

  • Page 19: Cleaning

    TTENTION: ATTENTION: ATTENTION: ATTENTION: DO NOT perform any kind of maintenance while the E-Bike is powered on or charging. DO NOT perform any kind of maintenance while the E-Bike is powered on or charging. DO NOT perform any kind of maintenance while the E-Bike is powered on or charging. DO NOT perform any kind of maintenance while the E-Bike is powered on or charging.

  • Page 20: Storage

    The recommended disposal for any MICLON product at its The substances contained inside the battery present chemical risks to the environment. The recommended disposal for any MICLON product at its The substances contained inside the battery present chemical risks to the environment.

  • Page 21: Specifications

    12. SPECIFICATIONS Item Parameters Model Name Macmission 100 Net Weight 46.3 lb. / 21kg Product Dimensions 69.5*27*41.3 in. / 176.5*68.5*105cm Package Dimensions 57*9.4*31 in. / 145*24*79cm Max. Incline 10° (rider weighs 220.4 lb. / 100kg) Max. Capacity 308 lb. / 140 kg Max.

  • Page 22: Warranty

    MICLON offers a warranty of Frame for 12 months. As per any problem regarding manufacturing process and material defects, which includes product breakages during the riding (except riding improperly). MICLON offers 12 months Battery and Motor Warranty. But this warranty does not cover the faulty operation or failure to properly follow the manufacturer's User Manual.
  • Page 23 Tel:516-927-8658 Mon-Fri 9AM-5PM(PT) Company: Shenzhen Meiqing Technology Co., LTD. ADD Room H11-03, Huishang Mingyuan, No.1 Jiefang Road Nanqing Street, East Gate Ave, Luohu District, Shenzhen, China, 518000 Email: Support@miclonbikes.com Website: miclonbikes.com Made in China...
