Budmat FWD2 Assembly And Usage Instructions

Photovoltaic module support structure

Advertisement

Quick Links

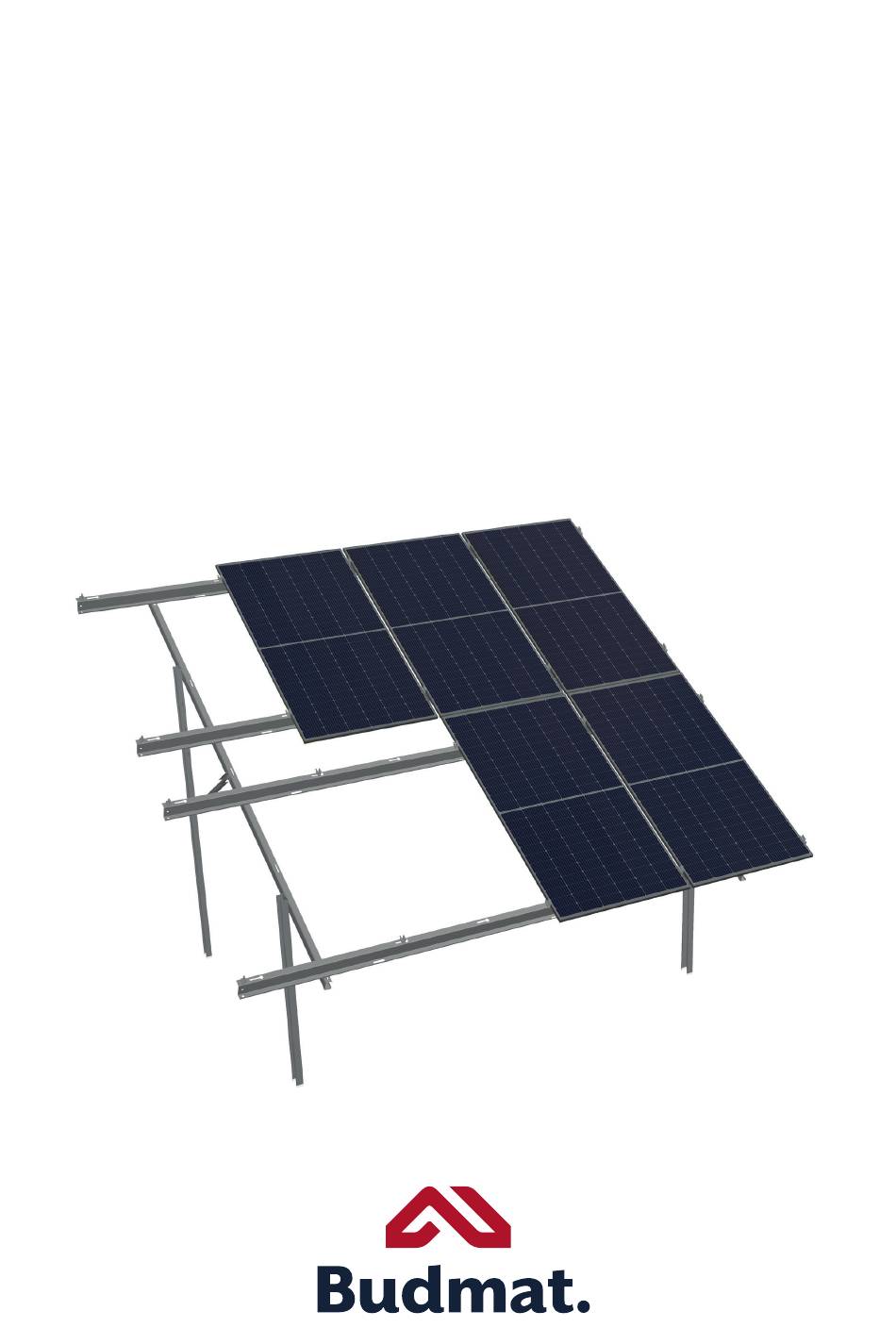

ASSEMBLY AND USAGE INSTRUCTIONS
for Photovoltaic Module
Support Structure
FWD2 HDM2

Advertisement

loading
Need help?

Need help?

Do you have a question about the FWD2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Budmat FWD2

  • Page 1 ASSEMBLY AND USAGE INSTRUCTIONS for Photovoltaic Module Support Structure FWD2 HDM2...
  • Page 2 Assembly Kit Components Component Name Description 2x4 layout 2x5 layout 2x6 layout 2x7 layout FWD12 HDM SP Front post L2400 2 pcs. L2400 3 pcs. L2400 3 pcs. L2400 4 pcs. FWS1 HDM2 ST Rear post L3497 2 pcs. L3497 3 pcs. L3497 3 pcs.
  • Page 3 3. Assembly The assembly is to be conducted in accordance with the instructions issued by Budmat. Recommended tightening torques during the assembly: - Mid and end clamps: 10-11 Nm, (Caution: During the tightening of the screws to the clamps, the rhombic Magnelis nut may become de- formed at the torque of 11 Nm.
  • Page 4 7. When working with Magnelis-coated profiles, comply with OHS regulations at all times. Transport and unloading 1. The profiles should be transported in their original Budmat steel packaging. 2. The vehicle transporting Magnelis-coated profiles should be adapted to this kind of transportation. The loading, unloading and proper fastening of the goods for the time of transport should be made easy for the person carrying out these activities.
  • Page 5 Post positioning – Wind rose Post Fig. 5b Fig. 5a 2x4 Layout Rear post Front post Fig. 5c 2x5 Layout 2x6 Layout 2x7 Layout Rear post Rear post Front post Front post Fig. 5d Fig. 5e...
  • Page 6: Rafter Assembly

    Rafter Assembly Fig. 6a Fig. 6b Bracket (B) and Splice (S) Assembly Fig. 6c Fig. 6c...
  • Page 7 Montaż wspornika W i łącznika L Bracket (B) and Splice (S) Assembly Fig. 7...
  • Page 8 Montaż płatew Purlin Assembly Layout Layout Fig. 8...
  • Page 9 Purlin Assembly Fig. 8a Fig. 8b...
  • Page 10: Module Assembly

    Module Assembly No. 8 No. 7 No. 6 No. 9 No. 10 No. 3 No. 2 No. 1 No. 4 No. 5 Fig. 10a Fig. 10b...
  • Page 11 X-Brace Assembly Fig. 11a Fig. 11b Fig. 11c...
  • Page 12 Inverter Mounting Assembly Fig. 12a Fig. 12b...
  • Page 13 Freestanding Support Structure Components pod moduły fotowoltaiczne for Photovoltaic Modules System Type and Name Rodzaj i nazwa systemu FWD1 HMM4 FWD2 HDM2 Date of Sale by the Warrantor Data sprzedaży przez Gwaranta Warrantor’s Seal Pieczęć Gwaranta ul.Ziejkowa 2A 05-900 Gostynin systemypv@budmat.com...
  • Page 14: Warranty Terms And Conditions

    Warrantor The enterprise Budmat. Bogdan Więcek, 09-407 Płock, ul. Otolińska 25, Poland, NIP [Tax ID] 774-001-50-83, provides a warranty, hereinafter referred to as “the Warranty”, on freestanding support structure components for photovoltaic modules (hereinafter referred to as “Structure Components”).
  • Page 15 17. Complaints under this Warranty shall be filed immediately after the discovery of a defect covered by the Warranty. The filing shall be made in writing, within 14 days of the day of the discovery, and sent by e-mail to reklamacje@budmat.com, or by letter to Budmat.
  • Page 16: Warranty Card

    Warranty Card Date / Seal and Visual Structure Owner’s Seal and Inspection Period Inspection Date Screw Force Signature of Authorised Assessment Cleanliness Signature Service Provider Assembly Confirmation Within 12 Months of Assembly Date Within 24 Months of Assembly Date Within 36 Months of Assembly Date Within 48 Months of Assembly Date...

This manual is also suitable for:

Hdm2
