- Page 1 STAM AUDIO ENGINEERING SA-16 - USER MANUAL SA-16 - USER MANUAL PAGE 1...
- Page 2 ● Do not use this equipment near water. ● Clean only with dry cloth. ● Do not block any ventilation openings. ● Install in accordance with the manufacturer’s instructions. ● Do not install near any heat sources SA-16 - USER MANUAL PAGE 2...
- Page 3 21. Use this equipment in tropical and/or moderate climates. ● Stam Audio accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein.

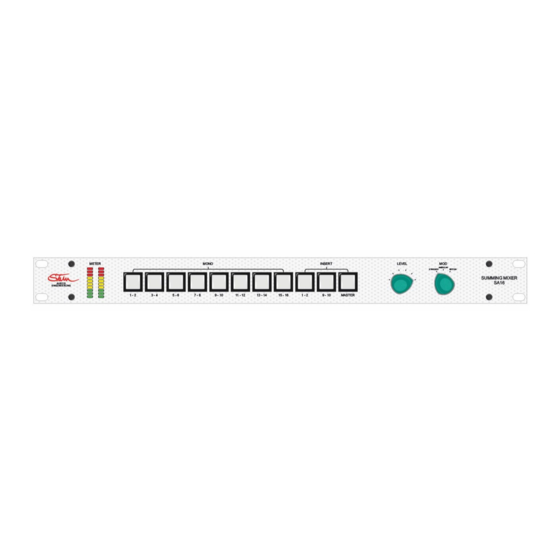

- Page 4 “N” styled BA-440 output section (as found on the legendary 33609) giving you instant “British” vibe & attitude! The SA-16 features three balanced stereo insert points; allowing you to add your favorite external units (such as compressors, limiters, and equalizers). A fully stepped output...
- Page 5 DB25 pinout), allowing to connect an external outboard as a true balanced insert. 2.3 LEVEL: A stepped output level control (3dB each step), from -9 to +6. 2.4 MOD: Select 3 completely independent output stages (Standard, American, British) SA-16 - USER MANUAL PAGE 5...
- Page 6 5-6 : INSERT CH.9 SEND/RETURN 7-8 : INSERT CH.10 SEND/RETURN AUX/OUT 1-2 : STEREO AUX OUT (COPY of L-R) 3-4 : MASTER OUT LEFT INSERT SEND/RETURN 5-6 : MASTER OUT RIGHT INSERT SEND/RETURN 7-8 : STEREO AUX IN SA-16 - USER MANUAL PAGE 6...
- Page 7 STAM AUDIO ENGINEERING SA-16 - USER MANUAL PAGE 7...
