Sky Climber SKYMASTER Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SKYMASTER®
Owners Manual
SKY CLIMBER LLC – 1800 Pittsburgh Drive - Delaware - Ohio 43015 - U.S.A
Email: info@skyclimber.com - Tel: +1 740 203 3900 - Fax: +1 740 203 3901
Website: http://www.skyclimber.com
N.V. SKY CLIMBER EUROPE S.A. - Boomsesteenweg 14 - 2630 Aartselaar - Belgium
Email: info@skyclimber.be - Tel: +32 (0)3 887 81 20 - Fax: +32 (0)3 887 09 94
Artesia Bank 550 33 14700 09 - BTW: BE 407 249 055 - HRA 185.015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKYMASTER and is the answer not in the manual?

Questions and answers

Related Manuals for Sky Climber SKYMASTER

Summary of Contents for Sky Climber SKYMASTER

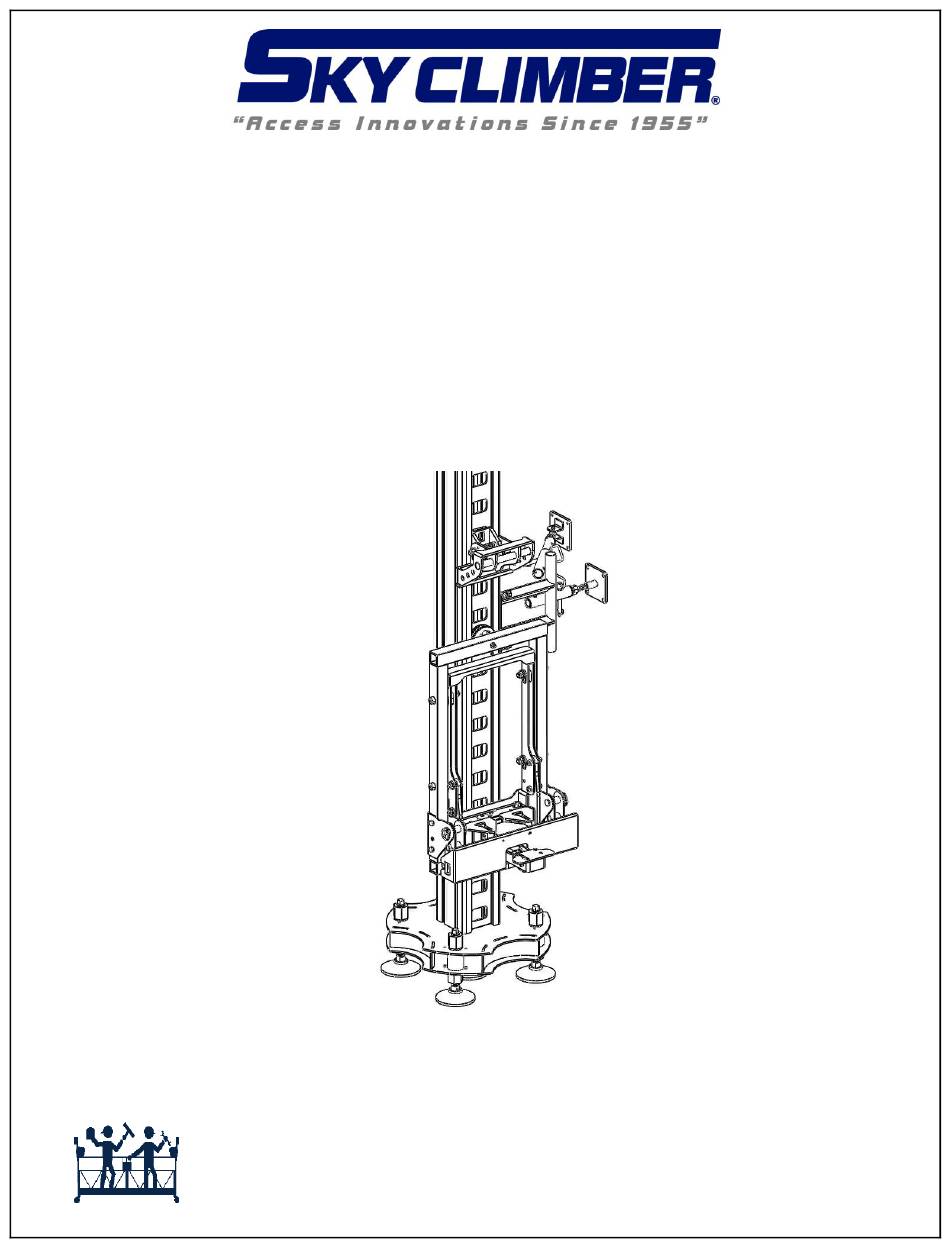

  • Page 1: Cover Page
