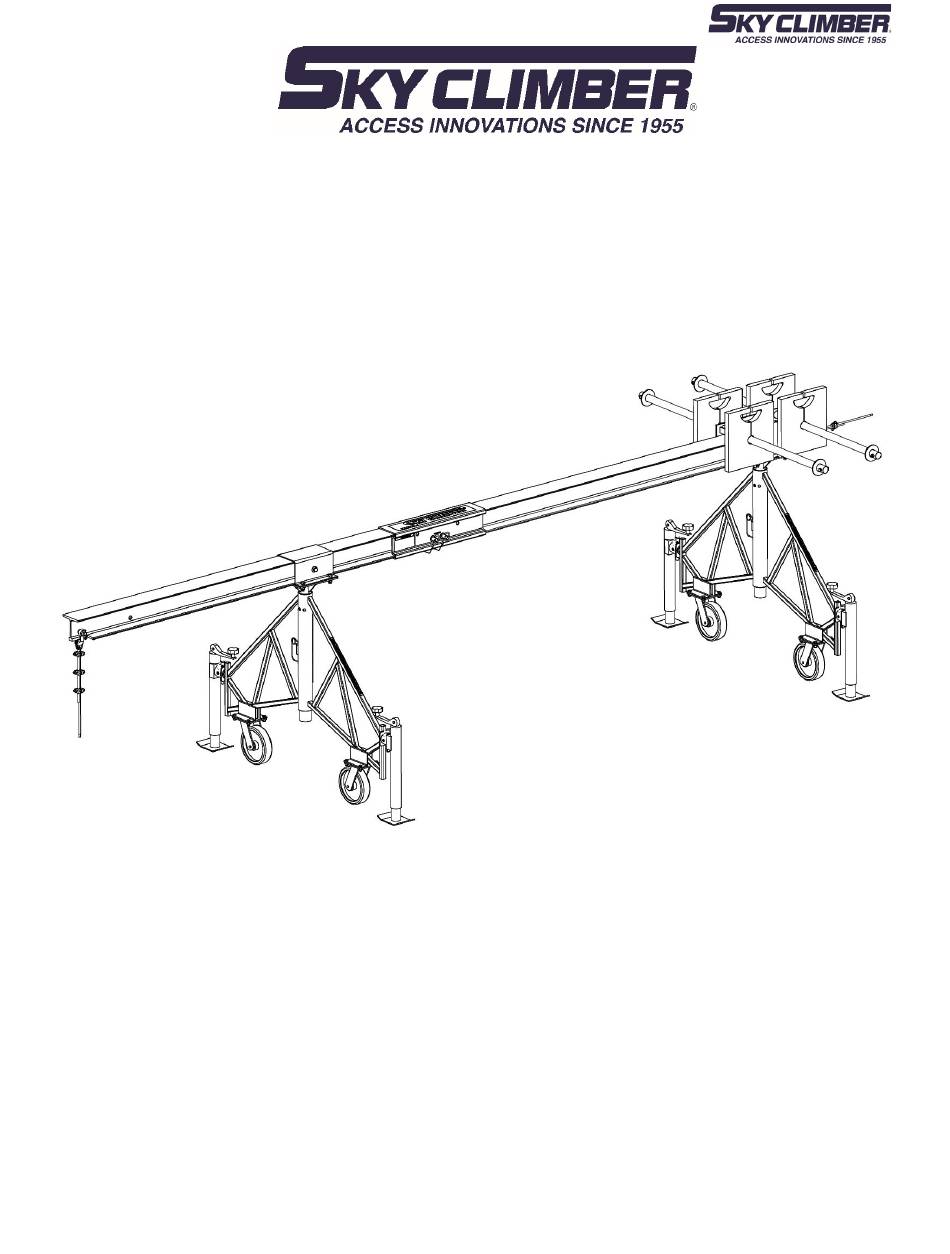

- Page 1 Rolling Roof Rig Assembly Instructions Rolling Roof Rig, Corner Adaptor, and Beam Splice Tube Packages Sky Climber LLC. Tel. 1 800-255-4629 info@skyclimber.com 1800 Pittsburgh Dr. www.skyclimber.com Delaware, OH 43015...
- Page 2 DAILY CHECKLIST Prior to use, check Sky Climber Hoists, Sky Locks, wire rope and other equipment for wear. DO NOT use hoists or Sky Locks which are damaged or worn beyond normal tolerances.
- Page 3 NSTRUCTIONS Sky Climber Rolling Roof Rig Assemble beam using 2 splice plates and 8 bolts and nuts per joint. Rolling Roof Rig Package 154-24-A consists of 2 end beams. Package 154-24-B consists of 2 end beams and 1 mid-beam. Raise the mast to the desired height and insert the retaining pin. Loosen the 4 nuts and bolts connecting the hat bracket to the mast.
- Page 4 • Counterweight calculations should be based upon the rolling roof rig position i.e. the Rigging Collar may not be used to reduce outreach with the goal of reducing the number of counterweights required. Beam Tube Instructions •...
- Page 5 Insert the mast of the front RRR stand in to the long tube of the Corner Adapter and adjust the height as required. • Assure the rear Rolling Roof Rig stand is set to the correct height to ensure a level beam. Install the beam as usual. To move the Corner Adaptor •...
- Page 6 Counterweights 16-foot Rolling Roof Rig 24-foot Rolling Roof Rig 24-foot Rolling Roof Rig WITH Strongback Print Date: 11/18/2019 Tel. 1 800-255-4629 info@skyclimber.com www.skyclimber.com SCL_AssemblyInstructions_RRR_RevAA_2019 -11-18...
