AlphaLab PRECIS-ION AIC3Pro Quick Start Manual

Air ion counters
Hide thumbs Also See for PRECIS-ION AIC3Pro:
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual
ION
PRECIS
™
A i r
I o n
C o u n t e r s
MODEL AIC3Pro QUICK START GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRECIS-ION AIC3Pro and is the answer not in the manual?

Questions and answers

Related Manuals for AlphaLab PRECIS-ION AIC3Pro

Summary of Contents for AlphaLab PRECIS-ION AIC3Pro

  • Page 1 PRECIS ™ A i r I o n C o u n t e r s MODEL AIC3Pro QUICK START GUIDE...

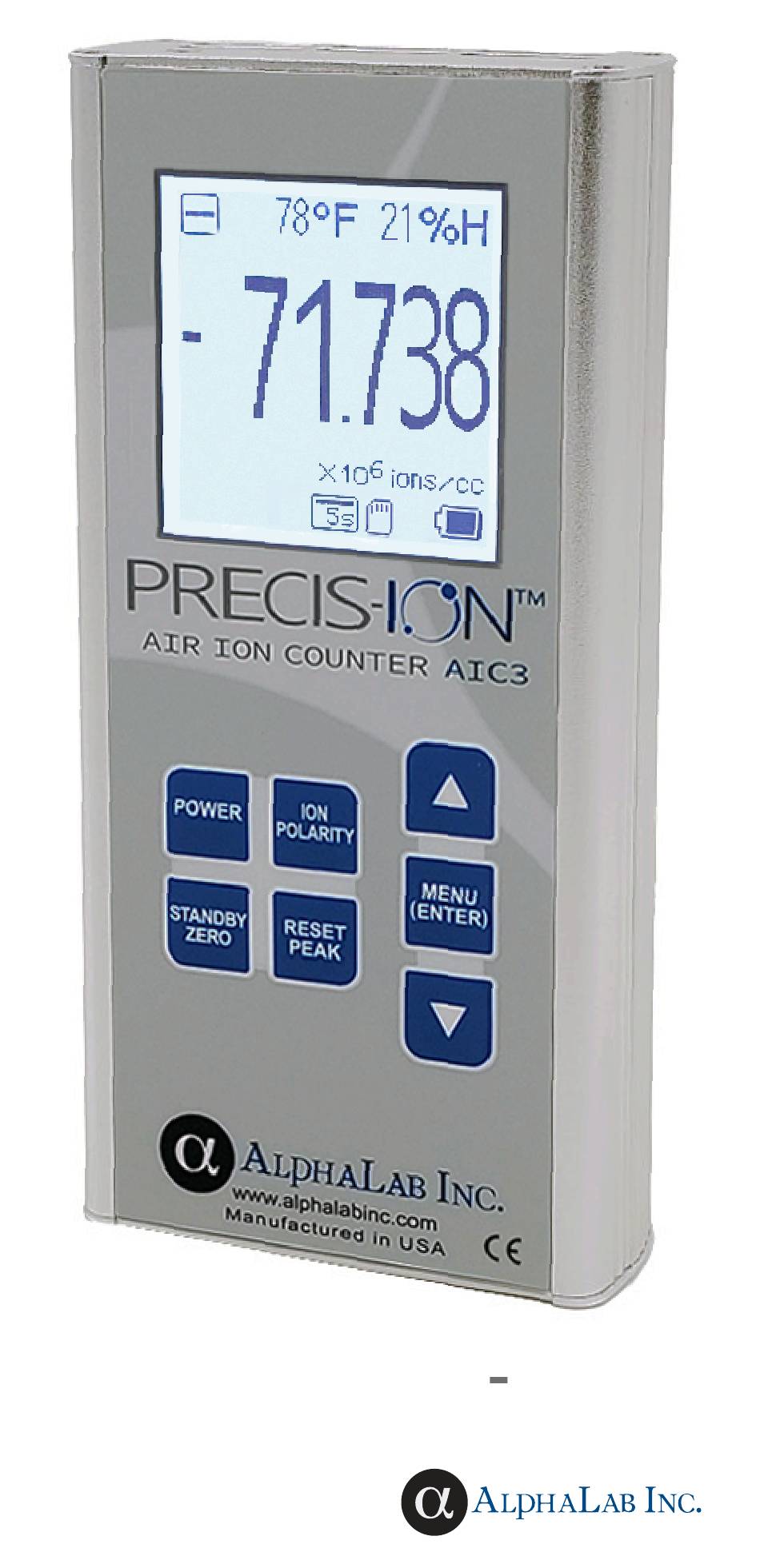

  • Page 2 Precis-Ion™ Air Ion Counter Model AIC3Pro is a Gerdien condenser air ion meter. During operation, a blower draws air, and the electrical charge from air ions (charged air molecules) is measured. The air ion count is calculated and displayed. Do not block the air intake. This will affect measurements.
  • Page 3 Grounding the AIC3Pro: At high ion levels, such as generated by ionizers, the ground cable must be used. At lower levels, holding the meter (with the kickstand removed) maintains sufficient ground reference, provided that your body doesn’t build up a static charge. Occasionally touching a pipe or the screw on a light switch plate will ensure accurate readings.
  • Page 4 Reading the Dual Display: This mode allows for the measurement and display of both ion polarities side-by-side, with the same scale setting. At the same time, the SUM feature adds the total number of positive and negative air ions and displays the cumulative count.
  • Page 5 Included 3-in-1 combination accessory: Table-top Tripod Mount Wall Mount Kickstand Using the Static Shield: Use the included static shield to minimize electric field interference when measuring ions at low levels (x10³) 2 million scale. Simply slide the shield over the top of the meter until it seats firmly.
  • Page 6 The Precis-Ion ™ Air Ion Counter Model AIC3Pro is Designed and Manufactured by: 3005 South 300 West, Salt Lake City, Utah 84115, U.S.A. www.alphalabinc.com v1.3 ©2023 AlphaLab, Inc. All Rights Reserved. Precis-Ion ™ is a registered trademark of AlphaLab, Inc.
