H.E.R.O. Industries
a division of Middlefield Bancorp Limited
2719 Lake City Way,
Burnaby, B.C., Canada
Phone: ( 604 ) 420-6543 Fax: ( 604 ) 420-8725
Toll Free: 1-800-494-4376
E-mail: sales@hero.ca Website: www.hero.ca
U.S. mail: P.O. Box 75, Custer, WA 98240-0075
H.E.R.O. Industries
Pressure Washer Owners
Page 1
Advertisement
Related Manuals for HERO PW2424-LD
Summary of Contents for HERO PW2424-LD

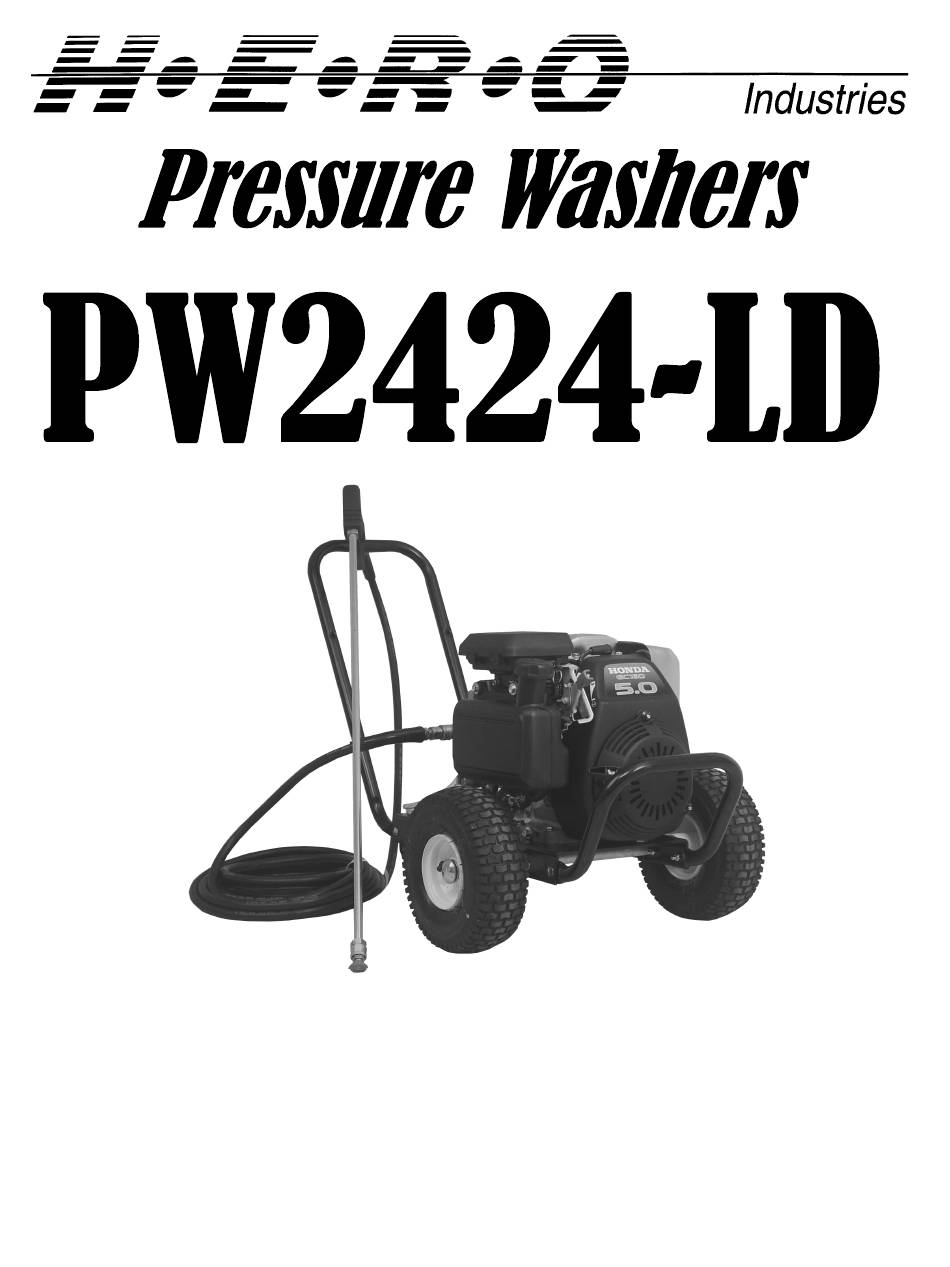

- Page 1 Middlefield Bancorp Limited 2719 Lake City Way, Burnaby, B.C., Canada Phone: ( 604 ) 420-6543 Fax: ( 604 ) 420-8725 Toll Free: 1-800-494-4376 E-mail: sales@hero.ca Website: www.hero.ca U.S. mail: P.O. Box 75, Custer, WA 98240-0075 H.E.R.O. Industries Pressure Washer Owners Page 1...
- Page 2 Table of Contents Safety Instructions Important Operating / Maintenance Precautions 4 - 5 Start-Up Shutting Down Nozzle Selection Trouble Shooting Pump Service Pump Parts Reference Chassis and Drive Assembly Guns, Wands, Hoses & Accessories Service Notes and Serial Number Record WARRANTY This product is warranted to be free from defects in materials and workmanship under normal use and service, for a period of 90 ninety days from the date of...
- Page 3 IMPORTANT SAFETY PRECAUTIONS This book has important information for the use and safe operation of this machine. Read and understand all warnings before you start working. WARNING - WHEN USING THIS MACHINE: Read all the instructions before using machine To reduce risk of injury, close supervision is necessary when the machine is used near children Know how to stop the machine and bleed pressure quickly.
- Page 4 START-UP AND OPERATION INTRODUCTION 1. Verify that the RED vented plug is installed in pressure washer pump as shown in Fig 1. 2. Before first use, check engine and pump oil levels. Note: For shipping purposes, engine oil has not been added. Before each use, check engine oil level by unscrewing the oil dipstick.
- Page 5 START-UP AND OPERATION INTRODUCTION At this point, the gun is triggered to evacuate any remaining air in the system. Then trigger the gun and begin turning the red unloader knob in a clockwise direction as far as it will turn. You should now have full pressure.
- Page 6 TROUBLE SHOOTING FAULT CAUSE REMEDY Pump running normally but pressure does Pump sucking air. Check that hoses and fittings are air tight. not achieve rated pressure. Valves worn or dirty. Check, clean or replace. Insufficient water flow. Increase water supply. Unloader valve packing worn.
- Page 7 PUMP PARTS REFERENCE PART # PW-2070 COMET AXD2524G THIS SHOULD ONLY BE USED AS A REFERENCE ONLY IT IS MORE ECONOMICAL TO REPLACE ENTIRE PUMP THAN TO REPAIR Item # Part # Description Kit # Item # Part # Description Kit # PW-3202001800 CAP, 1/8”...
- Page 8 PUMP PARTS REFERENCE CONTINUED Item # Part # Description Kit # PW-0009022000 RING PW-3200007100 PLUG PW-3200052200 SUPPORT PW-0019003400 SEALING RING 40X55X7 PW-1210042900 O-RING PW-0001039500 ECCENTRIC SHAFT 3/4” PW-0438007600 BALL BEARING 40X80X18mm PW-0001041700 ECCENTRIC SHAFT 8 deg PW-0436001600 AXIAL BEARING PW-2816002500 THRUST BEARING PW-3609000500 SCREW M8X20...
- Page 9 CHASSIS AND DRIVE ASSEMBLY Item # Part # Description Item # Part # Description PW-4380 CART WITH WHEELS, REF CARRIAGE BOLT, PW-4360 CART BASE, PW2424 ONLY PW-4240 PW-4355 LONG HANDLE 67/14A FOOT PAD PW-4210 SHORT HANDLE HW4030P HEX NUT, 5/16” 67/16A PNEUMATIC WHEEL, 10”...
- Page 10 ACCESSORIES PW-1010 PW-1430, PW-1485 PW-1055 PW-1011 PW-1045 38A/24 O°, 15°, 40°, & SOAP NOZZLES PW-1000 PW-1116 PW-1270 PW-1015, PW-1014, PW-1212, PW-5015 PW-1062 PW-1045 PW-1047 PW-1020 PW-1046 PW-1065 PW-1048 PWFSC24 PW-1060 PW-1070 PW-1050 PW-1480 PW-1072 PW-1052 PW-1057 PW-1055 PWH-9206 PWH-9306 PWH-9208 PW-1180 PWH-9308 PWH-9408...
- Page 11 SERVICE RECORDS NOTES DATE SERVICE PREFORMED CHECK MODEL # ___________________________________________________________ SERIAL # ___________________________________________________________ PURCHASED ON ____________________________________________________ PURCHASED FROM: _________________________________________________ H.E.R.O. Industries Pressure Washer Owners Page 11...
Need help?
Do you have a question about the PW2424-LD and is the answer not in the manual?
Questions and answers

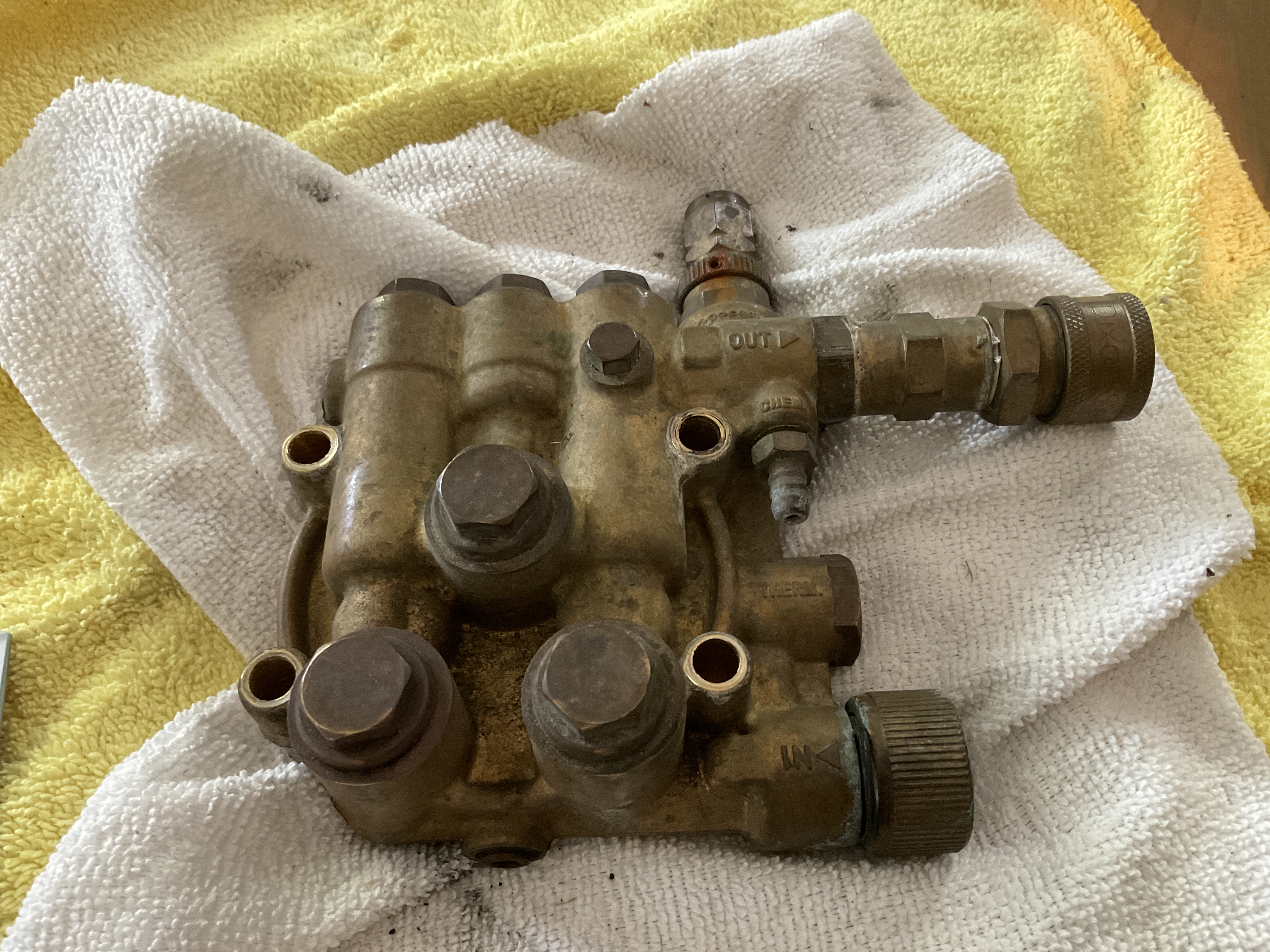

JE DÉSIRE CHANGER LA POMPE MOD 2424 SÉRIE 24-164 DIRECT 2.38 GPM 2400 PSI
